Rear Seat Belt and Retractor

REMOVAL
1. Remove rear seat cushion and back.
2. Remove seat belt bezel from parcel shelf cover.
3. Remove rear seat closure panel silencer pad as necessary to gain access to retractor.
4. Remove bolt attaching seat belt lower anchor to floor.

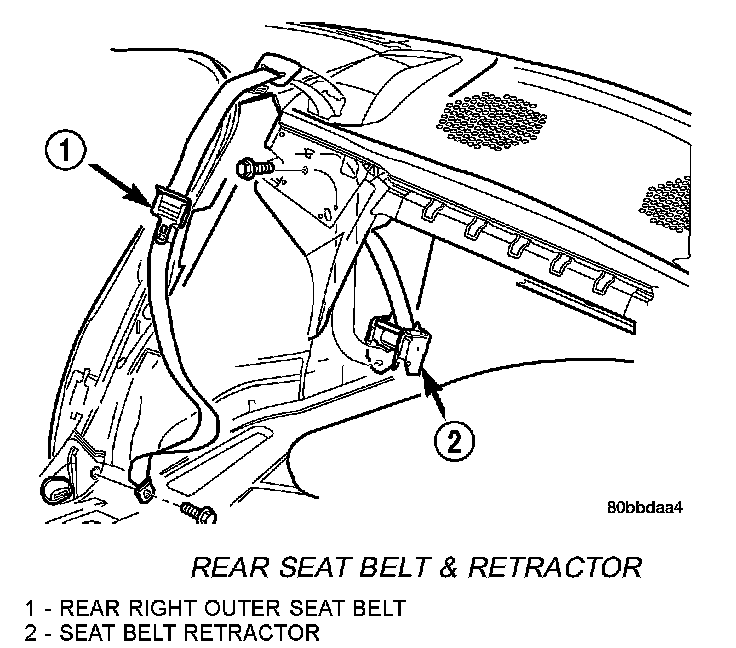

Rear Seat Belt & Retractor:

5. Remove bolt attaching retractor to rear seat closure panel.
6. Push seat belt bezel and buckle stab through access hole in parcel shelf.
7. From in trunk compartment, remove rear seat belt retractor from vehicle.

INSTALLATION
1. Position rear seat belt retractor in trunk compartment.
2. Push seat belt bezel and buckle stab through access hole in rear shelf trim panel.
3. Install bolt attaching retractor to rear seat closure panel. 40 Nm (30 ft. lbs.) torque.
4. Install bolt attaching seat belt lower anchor to floor. Tighten the seat belt bolt to 40 Nm (30 ft. lbs.) torque.
5. Install rear seat closure panel silencer pad.
6. Install seat belt bezel to the rear shelf trim panel.
7. Install rear seat cushion and back.
