Front

CAUTION: Front seat belt assemblies must be replaced after a collision.

REMOVAL
1. Remove B-pillar trim.

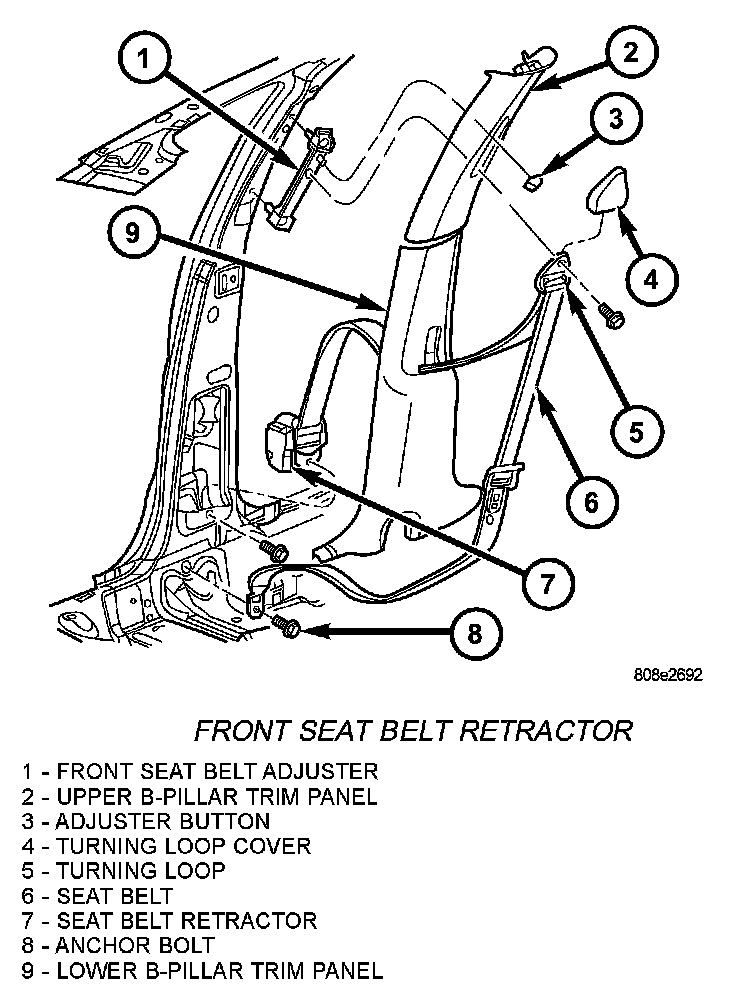

Front Seat Belt Retractor:

2. Remove bolt attaching seat belt retractor to B-pillar.
3. Disconnect the wire connector to the retractor.
4. Remove seat belt retractor from vehicle.

INSTALLATION
1. Connect the wire connector to the retractor.
2. Install seat belt retractor into vehicle.
3. Install bolt attaching seat belt retractor to B-pillar. Tighten seat belt anchor bolt to 40 Nm (30 ft. lbs.) torque.
4. Install B-pillar trim.
