Child Tether Cup

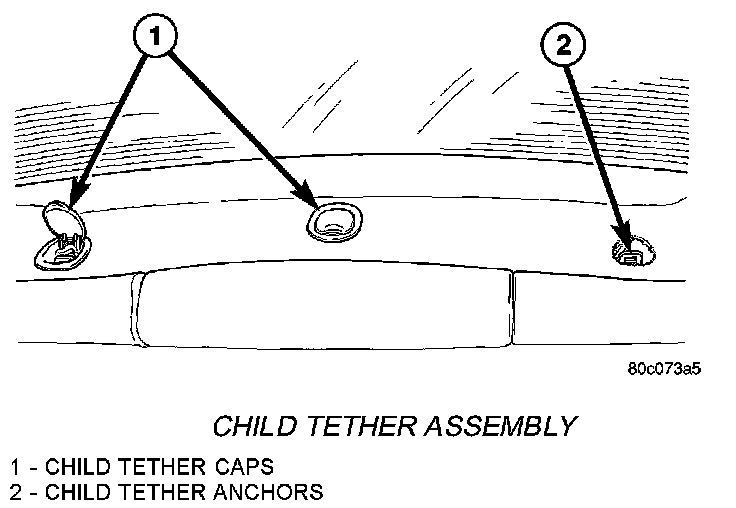

Child Tether Assembly:

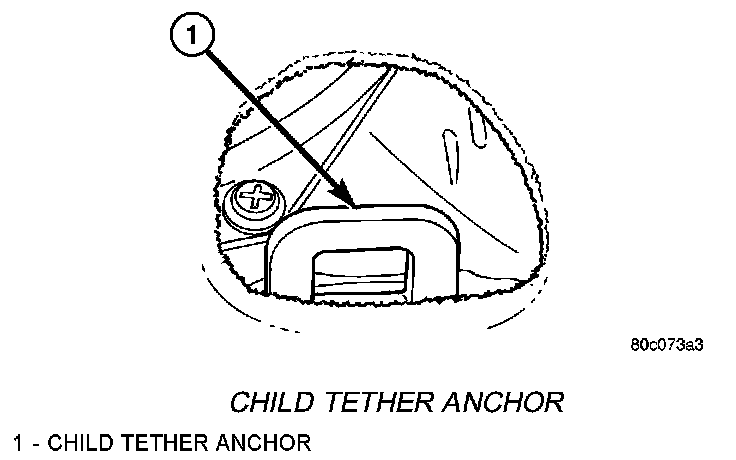

Child Tether Anchor:

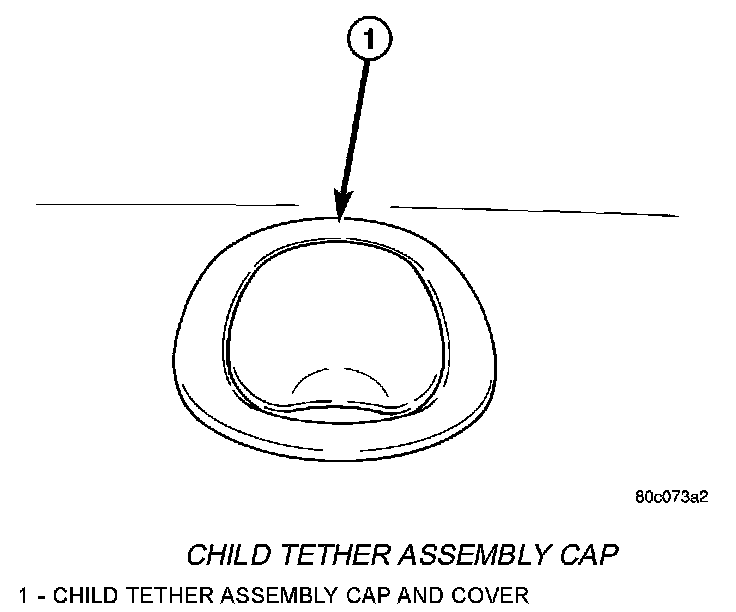

Child Tether Assembly Cap:





The Child Tether Assembly consists of the Child Tether Anchor and the Child Tether Assembly Caps. The Child Tether Anchor is not serviceable. The anchor is located on the rear shelf panel. The Child Tether Assembly Cap is not serviceable. The rear trim panel will have to be replaced.

See the owner's manual in the vehicle glove box for more information on the proper use of all of the factory-installed child restraint anchors.
