Air Bag: Diagrams

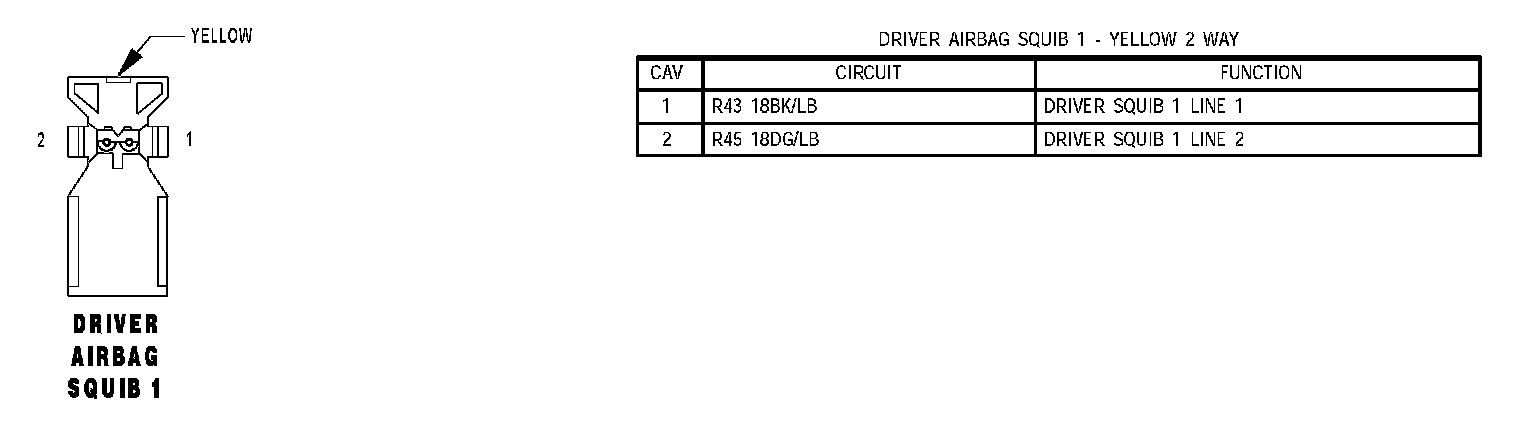

Driver Airbag Squib 1:



Left Seat Airbag Squib:

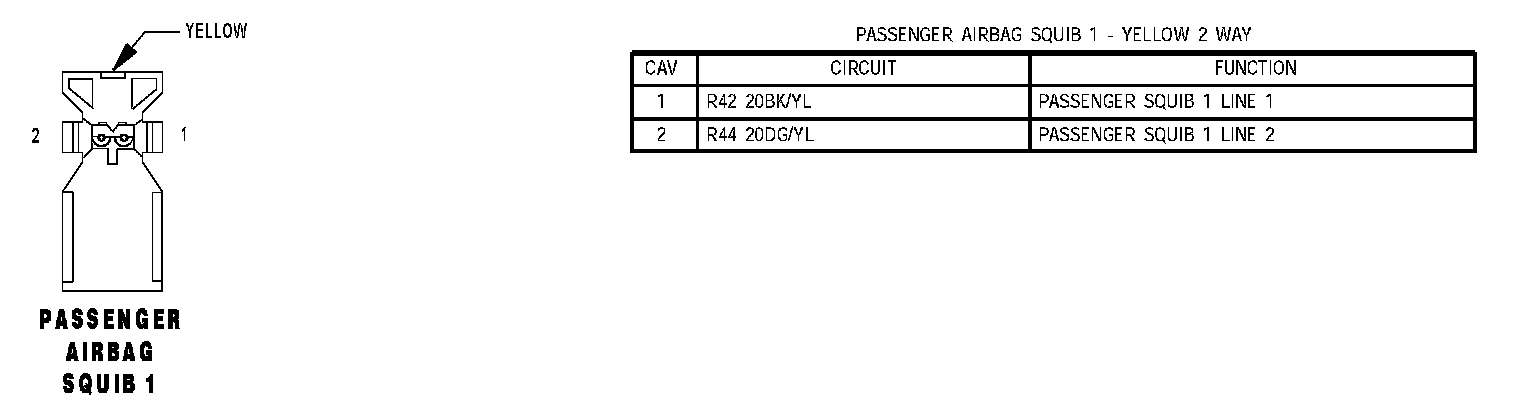

Passenger Airbag Squib 1:

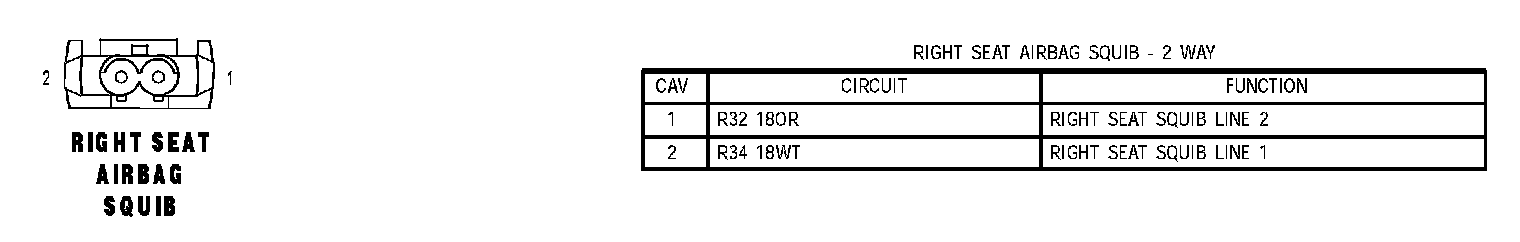

Right Seat Airbag Squib:
