VTSS Fails To Arm From Passenger Door Cylinder Lock Switch (Export Only)

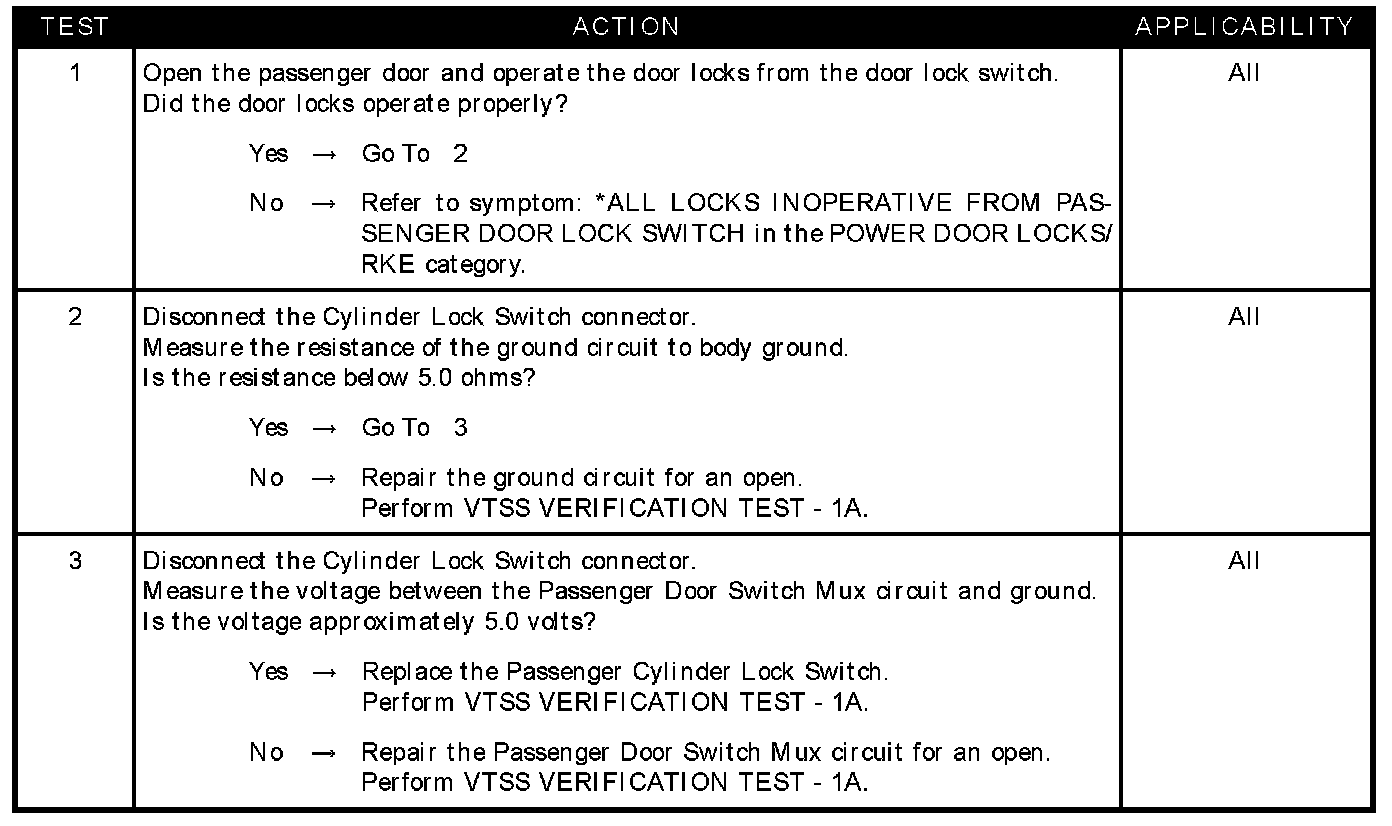

Test 1 - 3:

SYMPTOM
VTSS FAILS TO ARM FROM PASSENGER DOOR CYLINDER LOCK SWITCH (EXPORT ONLY)

POSSIBLE CAUSES
- Door lock operation test
- Ground circuit open
- Passenger door switch MUX circuit open
- Passenger cylinder lock switch faulty
