Disconnection/Connection

DISCONNECTION/CONNECTION
1. Perform fuel pressure release procedure. Refer to Fuel Pressure Release Procedure in this group.
2. Disconnect negative battery cable from battery or auxiliary jumper terminal.
3. Clean fitting of any foreign material before disassembly.

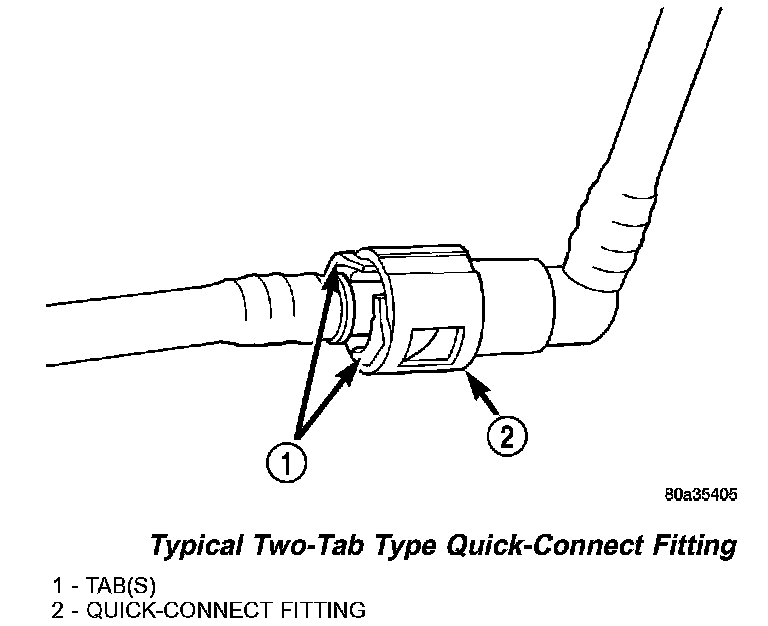

Typical Two-Tab Type Quick-Connect Fitting:

4. To disconnect quick-connect fitting, squeeze plastic retainer tabs against sides of quick-connect fitting with your fingers. Tool use is not required for removal and may damage plastic retainer. Pull fitting from fuel system component being serviced. The plastic retainer will remain on component being serviced after fitting is disconnected. The O-rings and spacer will remain in quick-connect fitting connector body.
5. Inspect quick-connect fitting body and component for damage. Replace as necessary.

CAUTION: When the quick-connect fitting was disconnected, the plastic retainer will remain on the component being serviced. If this retainer must be removed, very carefully release the retainer from the component with two small screwdrivers. After removal, inspect the retainer for cracks or any damage.

6. Prior to connecting quick-connect fitting to component being serviced, check condition of fitting and component. Clean parts with a lint-free cloth. Lubricate with clean engine oil.
7. Insert quick-connect fitting to component being serviced and into plastic retainer. When a connection is made, a click will be heard.
8. Verify a locked condition by firmly push-pull-ing-push on fuel tube and fitting (15-30 lbs.).
9. Connect negative cable to battery or auxiliary jumper terminal.
10. Use the DRB III(R) scan tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.

DISCONNECTION/CONNECTION
1. Perform fuel pressure release procedure. Refer to Fuel Pressure Release Procedure.
2. Disconnect negative battery cable from battery or auxiliary jumper terminal.
3. Clean fitting of any foreign material before disassembly.

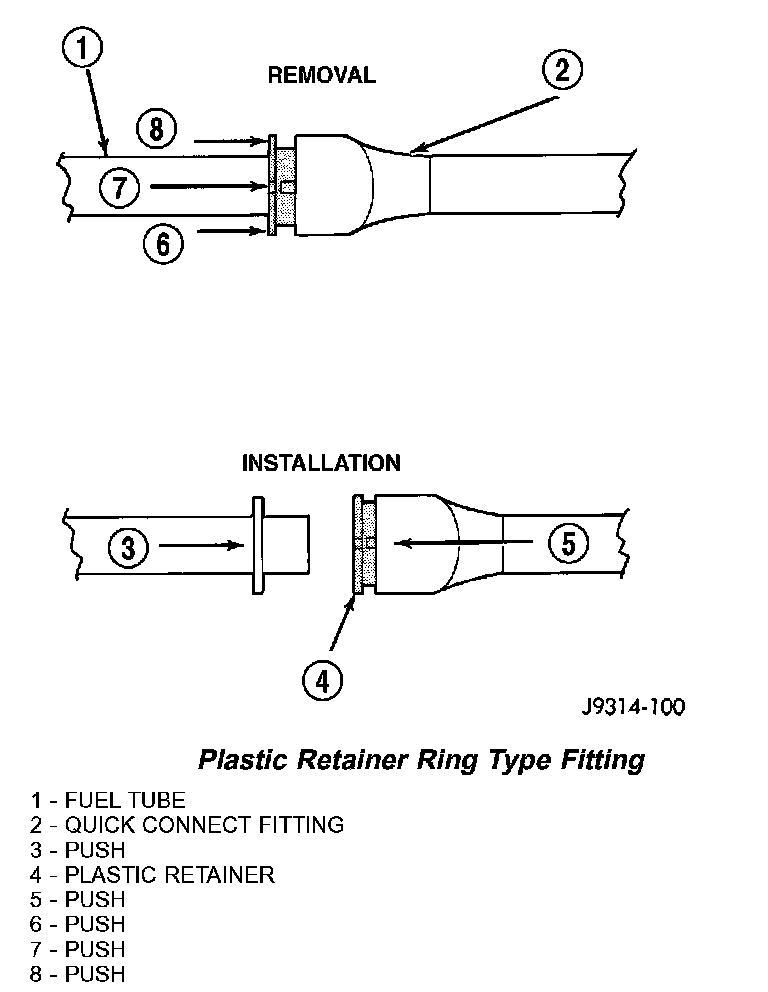

Plastic Retainer Ring Type Fitting:

4. To release fuel system component from quick-connect fitting, firmly push fitting towards component being serviced while firmly pushing plastic retainer ring into fitting. With plastic ring depressed, pull fitting from component. The plastic retainer ring must be pressed squarely into fitting body. If this retainer is cocked during removal, it may be difficult to disconnect fitting. Use an open-end wrench on shoulder of plastic retainer ring to aid in disconnection.
5. After disconnection, plastic retainer ring will remain with quick-connect fitting connector body.
6. Inspect fitting connector body, plastic retainer ring and fuel system component for damage. Replace as necessary.
7. Prior to connecting quick-connect fitting to component being serviced, check condition of fitting and component. Clean parts with a lint-free cloth. Lubricate with clean engine oil.
8. Insert quick-connect fitting into component being serviced until a click is felt.
9. Verify a locked condition by firmly push-pull-ing-push on fuel tube and fitting (15-30 lbs.).
10. Connect negative battery cable to battery or auxiliary jumper terminal.
11. Use the DRB III(R) scan tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.
