No Response From PCM (PCI Bus)

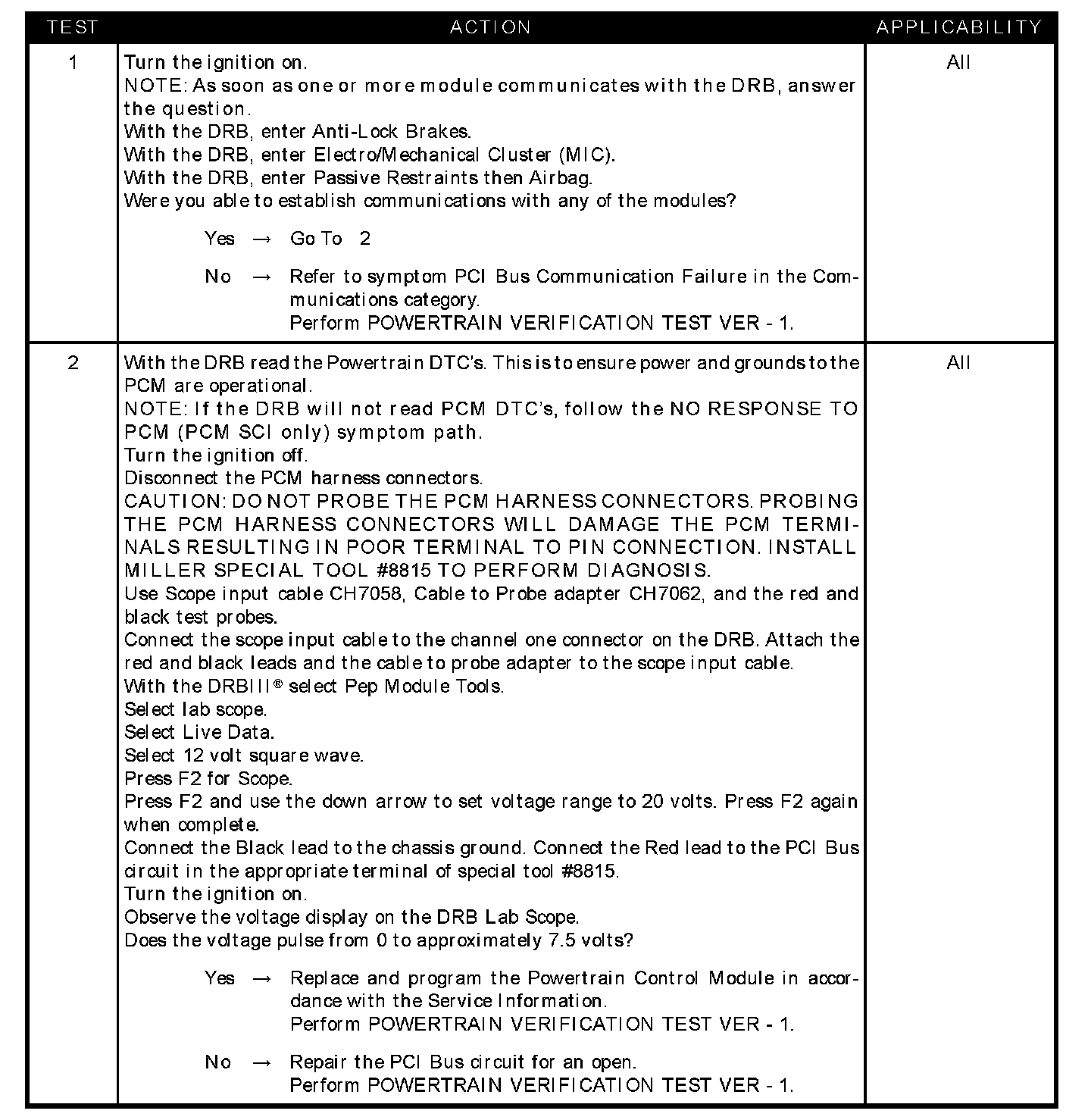

Test 1 - 2:

SYMPTOM
NO RESPONSE FROM PCM (PCM SCI ONLY) - NGC

POSSIBLE CAUSES
- Check PCM powers and grounds
- PCM SCI transmit circuit shorted to voltage
- PCM SCI receive circuit shorted to voltage
- PCM SCI circuits shorted together
- PCM SCI transmit circuit shorted to ground
- PCM SCI receive circuit shorted to ground
- PCM SCI receive circuit open
- PCM SCI transmit circuit open
- Powertrain control module
