Horn Fails to Sound When Alarm Is Tripped

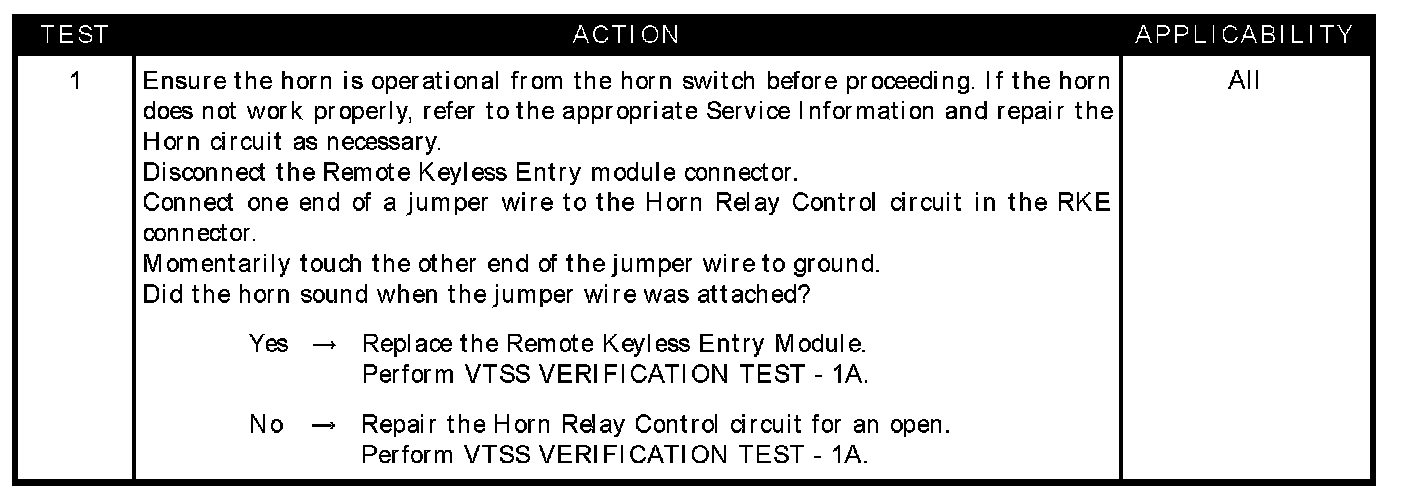

Test 1:
SYMPTOM
HORN FAILS TO SOUND DURING ALARM
POSSIBLE CAUSES
-
Horn relay
control circuit open
-
Remote keyless entry module
