Headlamps Fail to Flash When Alarm Is Tripped
Headlamps Fail to Flash When Alarm Is Tripped

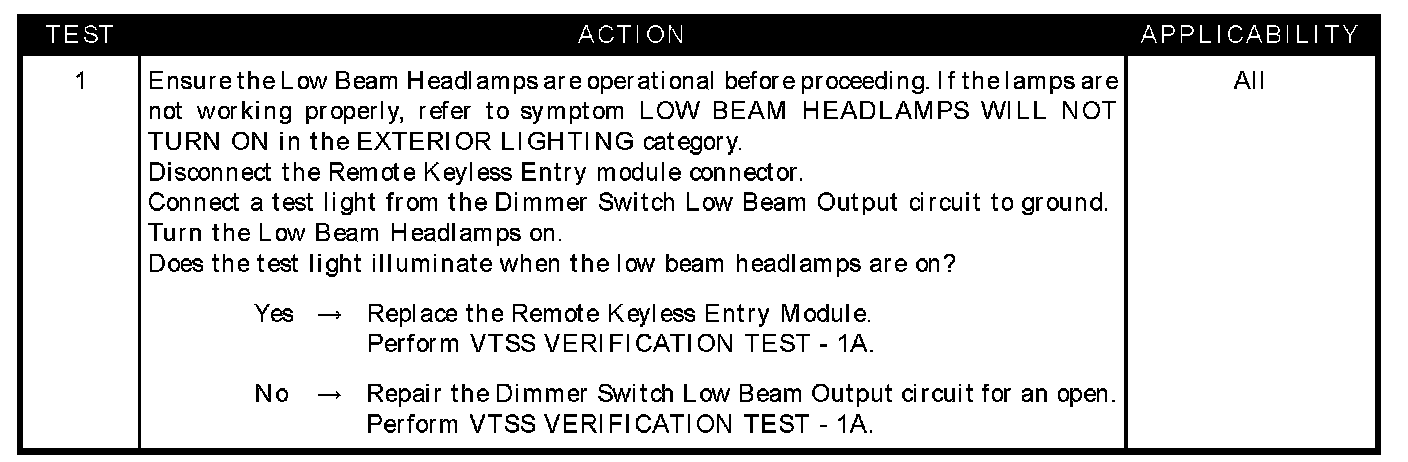

Test 1:
SYMPTOM
HEADLAMPS FAIL TO FLASH DURING ALARM
POSSIBLE CAUSES
-
Dimmer switch low beam output circuit open
-
Remote keyless entry module
