All Doors Except Driver Fail to Unlock

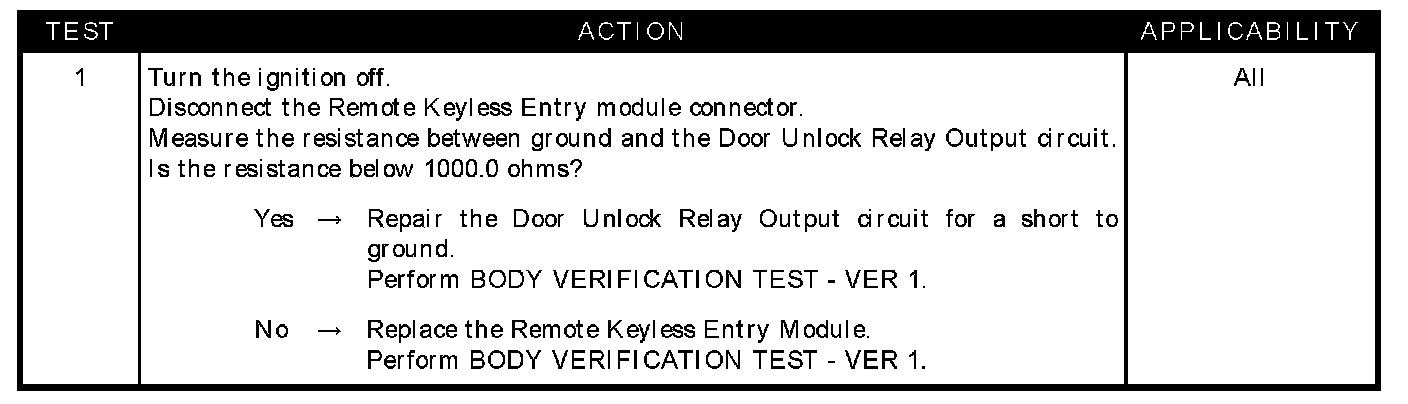

Test 1:






SYMPTOM
ALL DOORS EXCEPT DRIVER FAIL TO UNLOCK

POSSIBLE CAUSES
- Door unlock relay output circuit short to ground
- Remote keyless entry module - unlock relay
