Brake Warning Indicator Always On

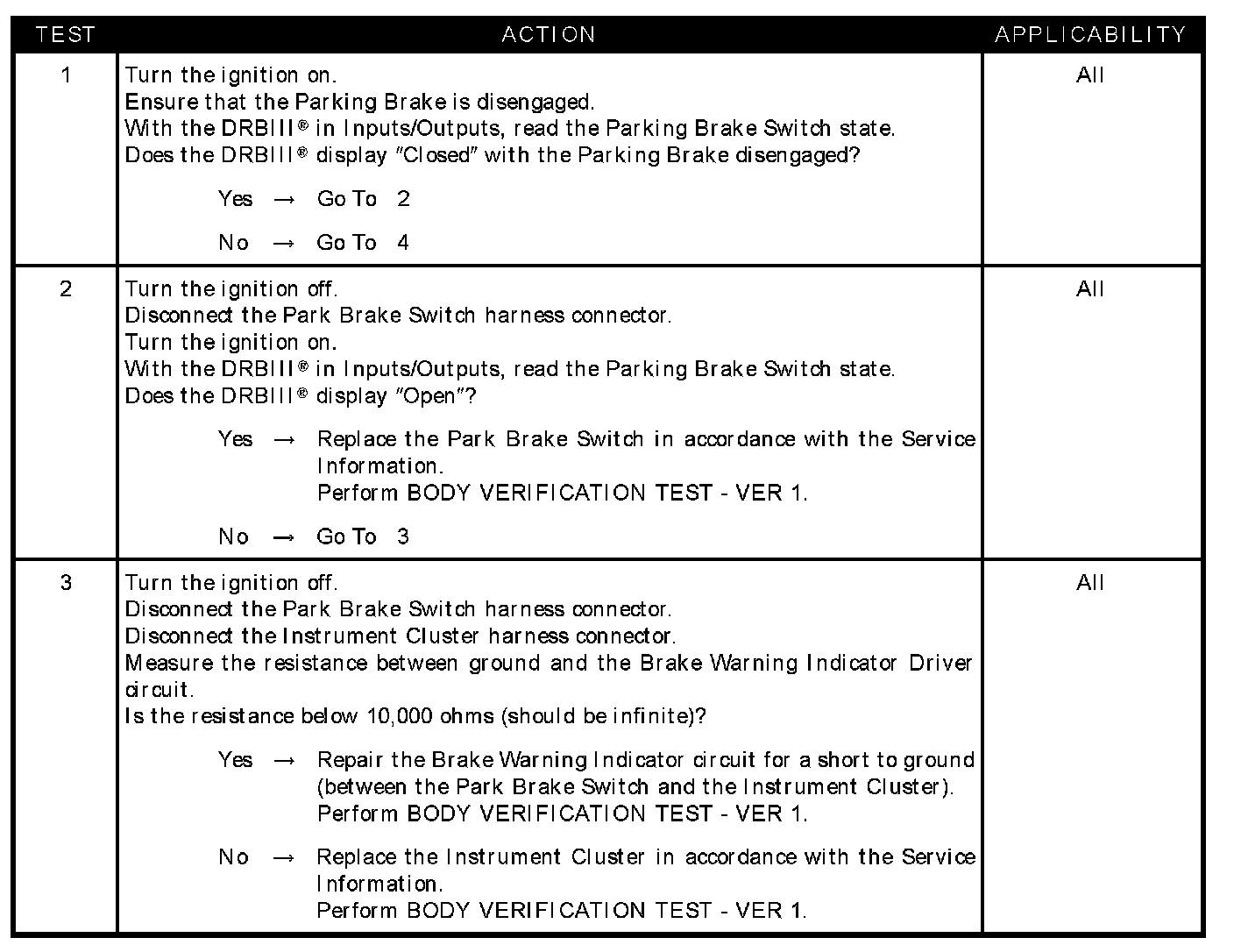

Test 1 - 3:

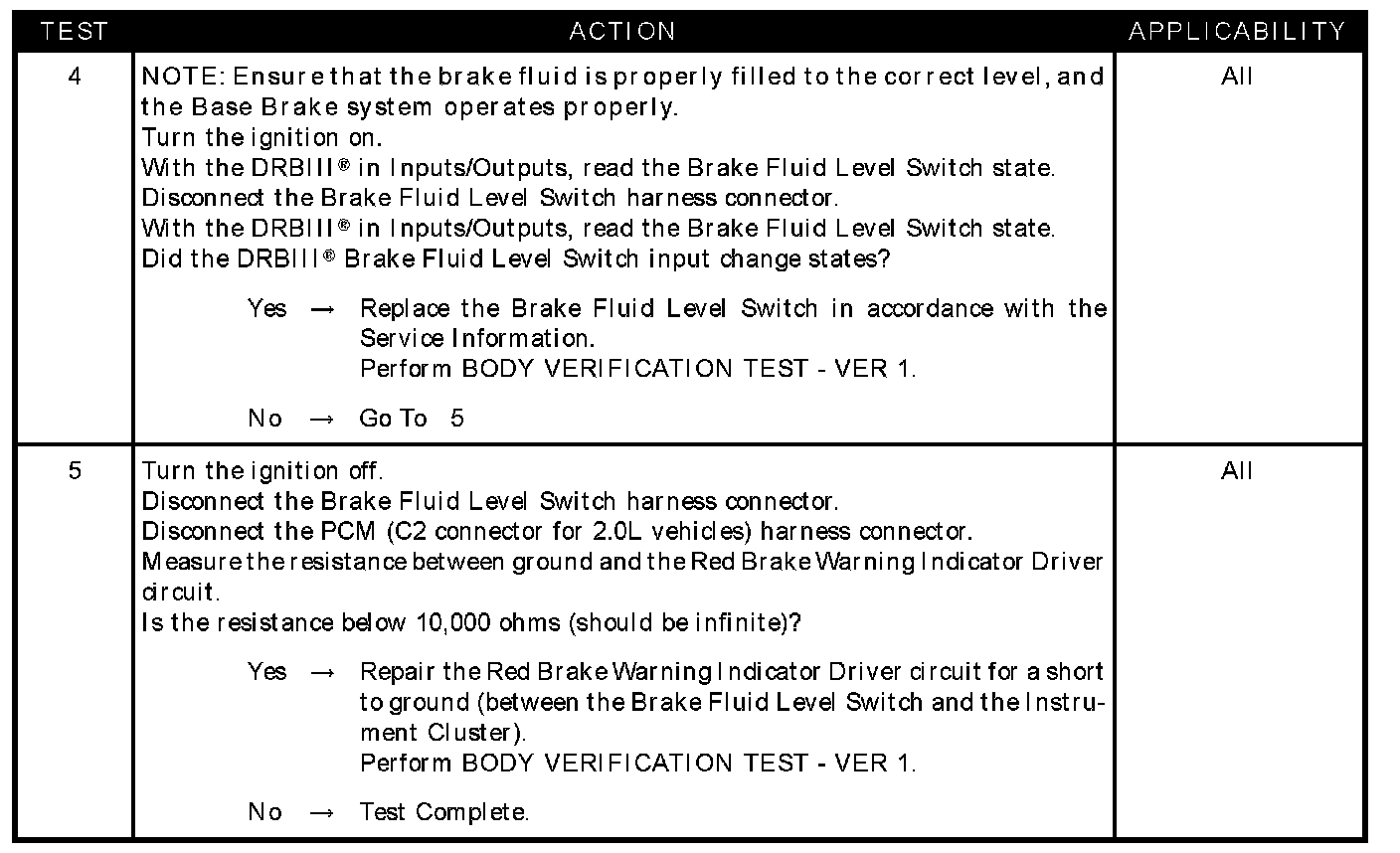

Test 4 - 5:






SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Brake warning indicator circuit short to ground
- Red brake warning indicator driver circuit short to ground
- Park brake switch
- Brake fluid level switch
- Instrument cluster
- Powertrain control module
