Any or All Gauge Pointer(s) On Wrong Side of Stop
Any or All Gauge Pointer(s) On Wrong Side of Stop

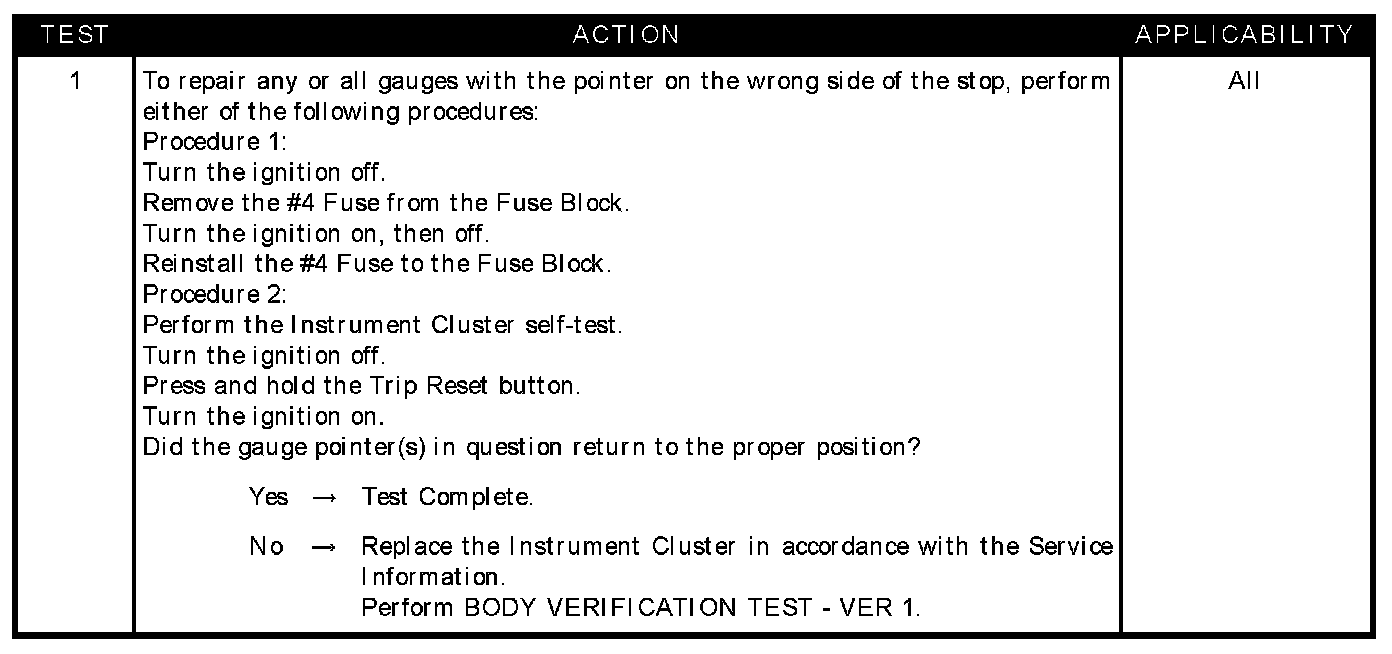

Test 1:
SYMPTOM
ANY OR ALL GAUGE POINTER(S) ON WRONG SIDE OF STOP
POSSIBLE CAUSES
-
Instrument cluster
