High Beam Headlamps Will Not Turn On

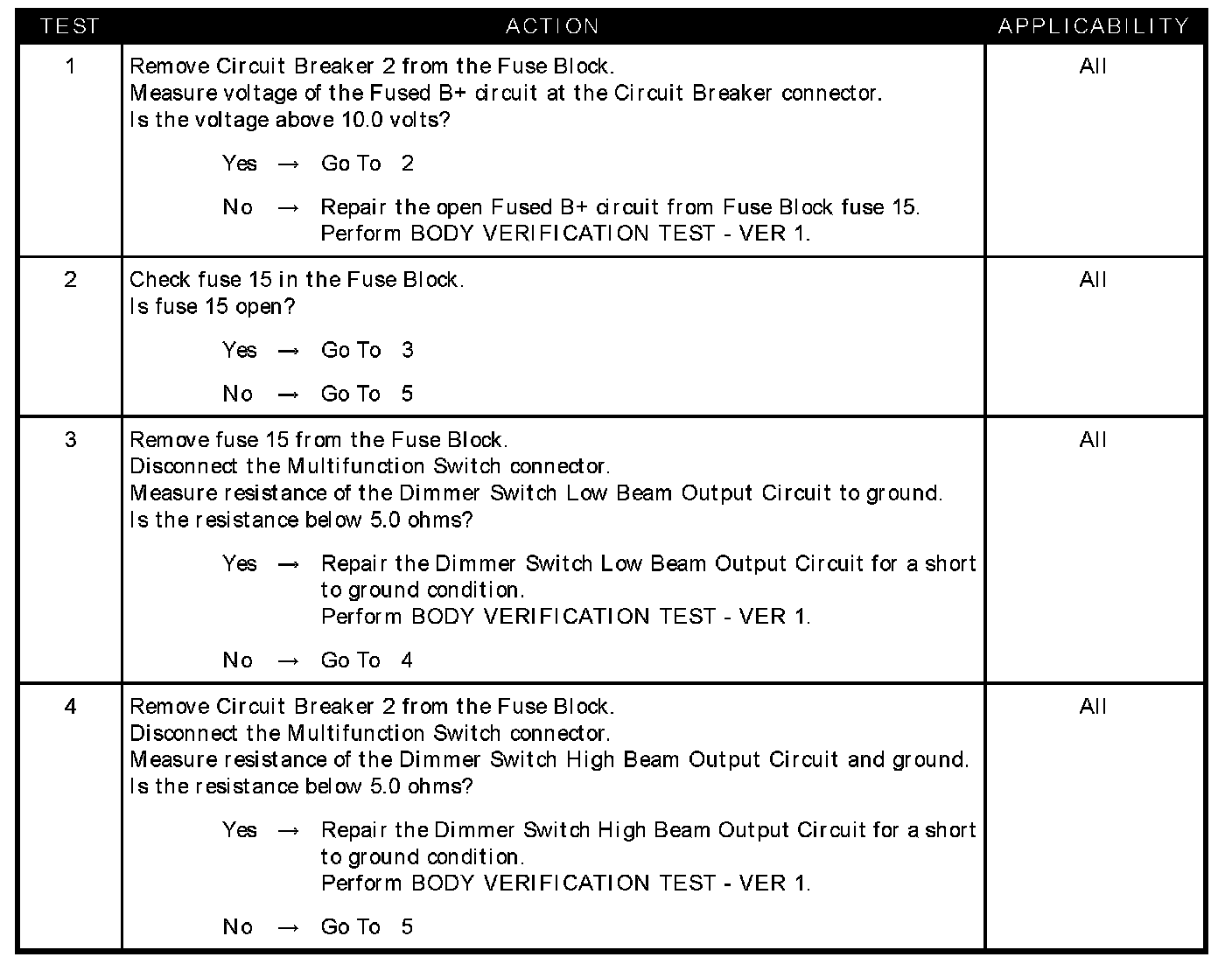

Test 1 - 4:

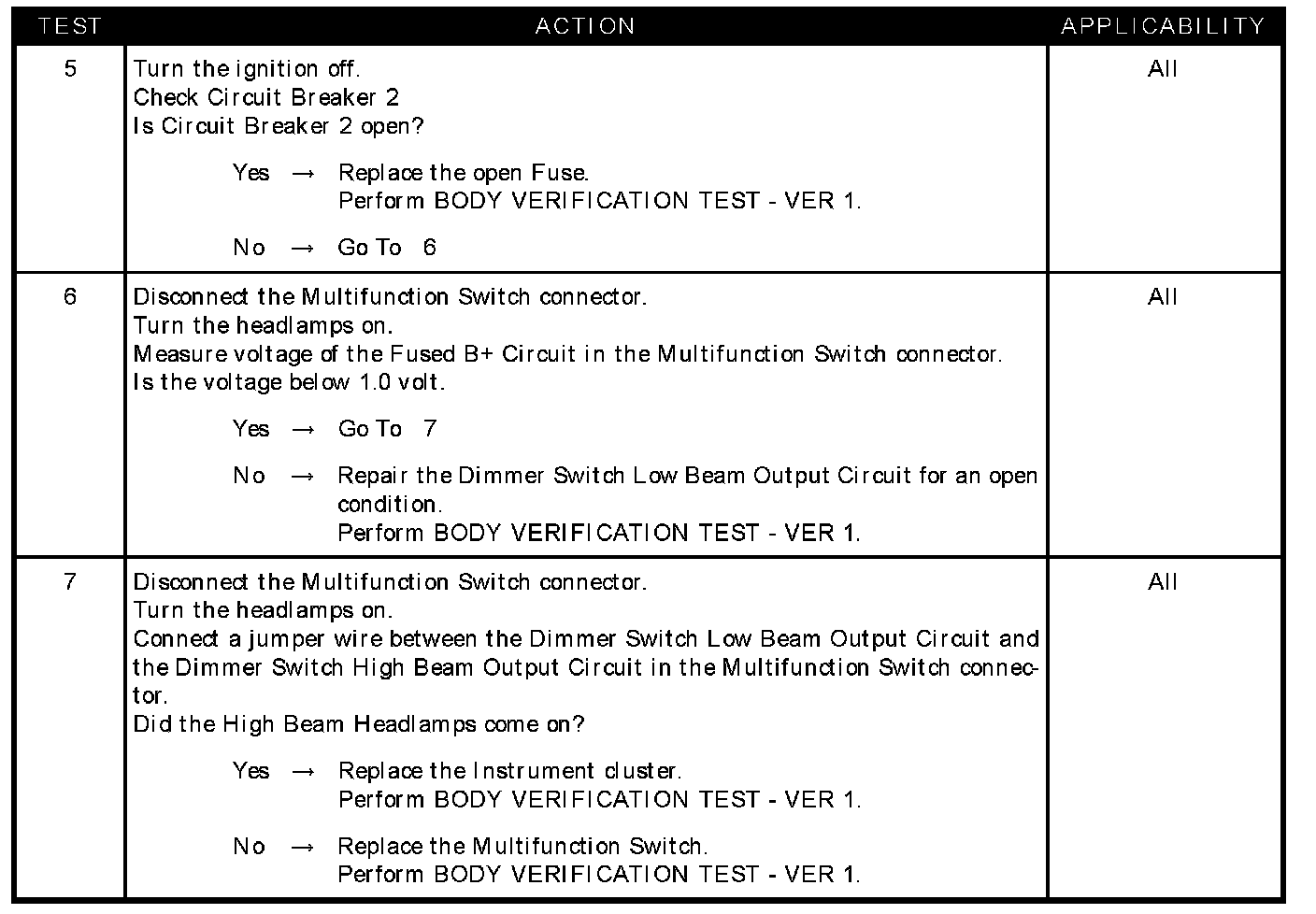

Test 5 - 7:

SYMPTOM
HIGH BEAM HEADLAMPS WILL NOT TRN ON

POSSIBLE CAUSES
- Open fused B+
- Dimmer switch low beam output circuit short to ground
- Dimmer switch high beam output circuit short to ground
- Open fuse
- Dimmer switch low beam output circuit open
- Instrument cluster
- Multifunction switch
