Doors Lockable With Key In Ignition and Driver Door Open

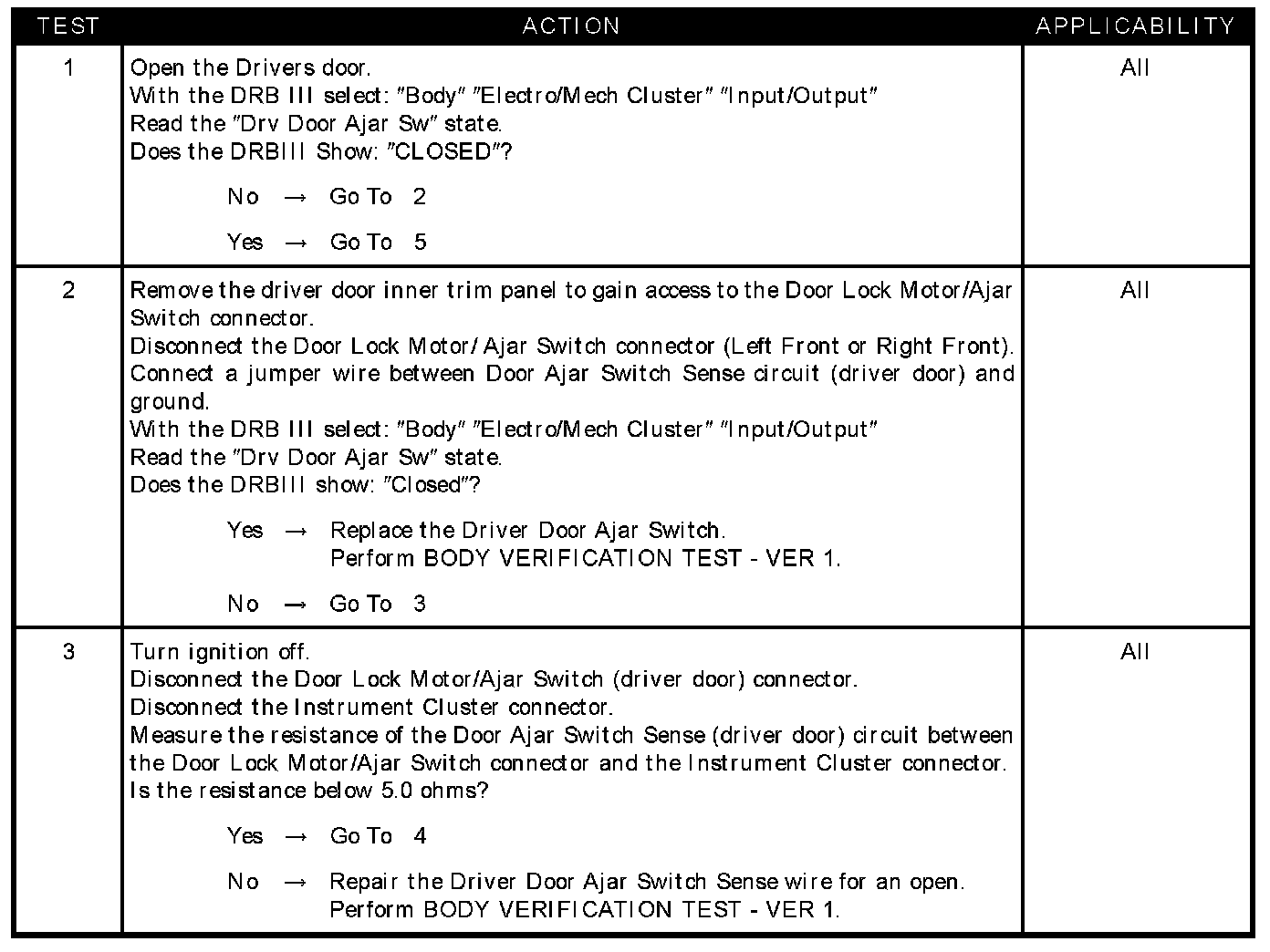

Test 1 - 3:

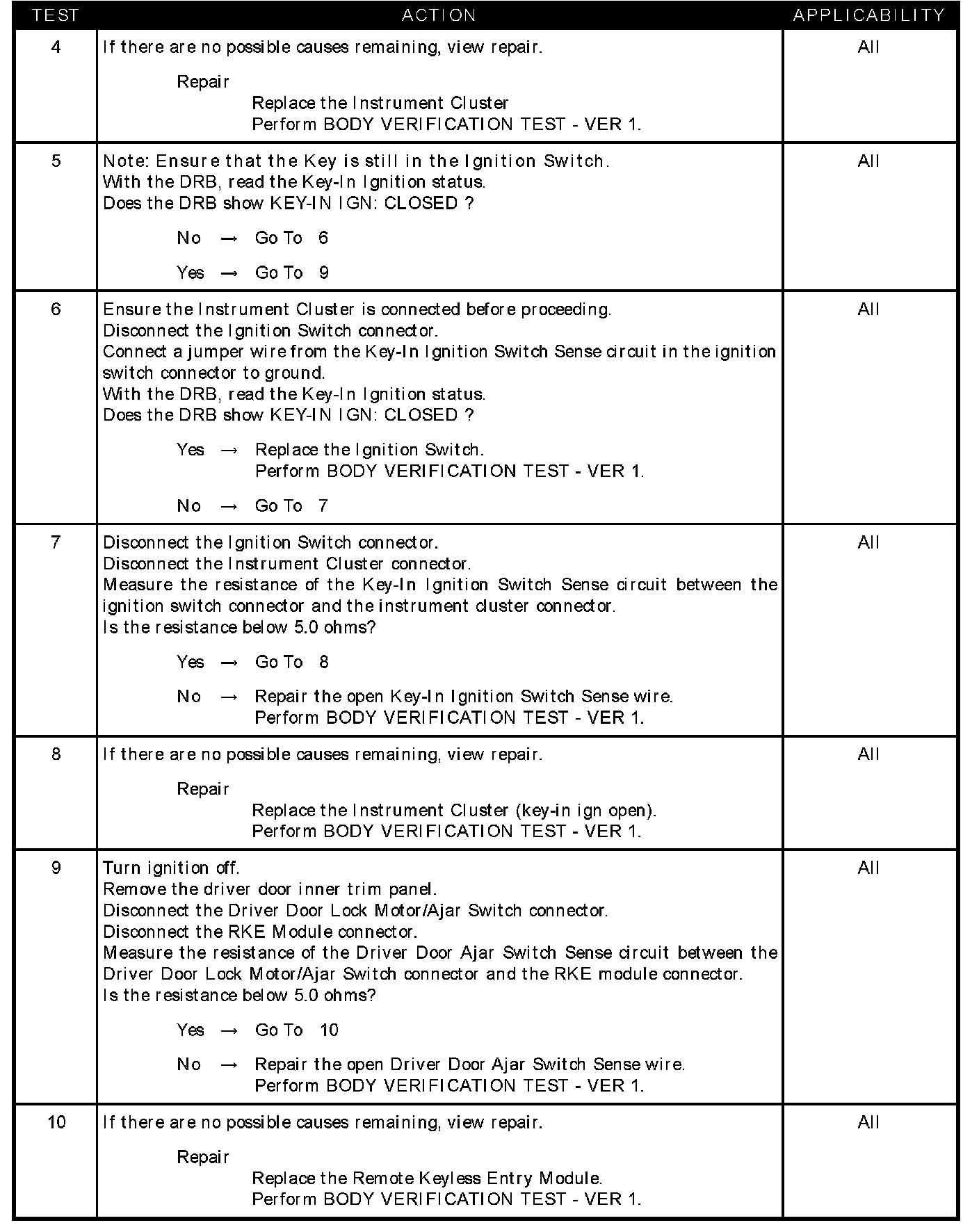

Test 4 - 10:

SYMPTOM
DOORS LOCKABLE WITH KEY IN IGNITION & DRIVER DOOR OPEN

POSSIBLE CAUSES
- Driver door ajar switch - open
- Open driver door ajar switch sense to RKE module
- Ignition switch open
- Key-in ignition switch sense wire open
- Open driver door ajar switch sense to cluster
- Instrument cluster - key-in ignition open
- Instrument cluster defective-driver door ajar open
- RKE module defective-open driver door ajar
