Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Instrument Cluster >> PRND or Autostick Indicator Display Inaccurate or Inoperative

PRND or Autostick Indicator Display Inaccurate or Inoperative

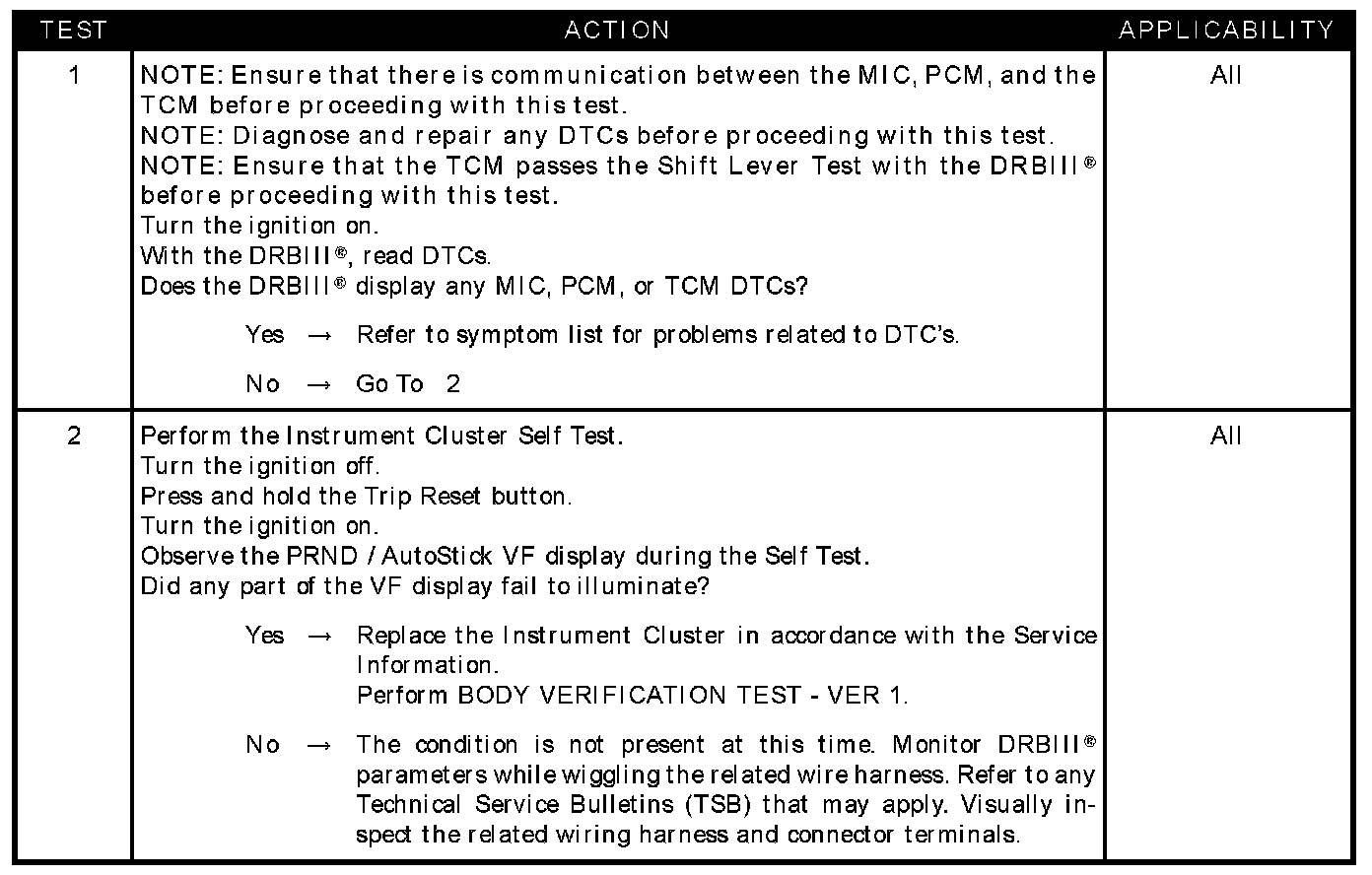

Test 1 - 2:






SYMPTOM
PRND OR AUTOSTICK INDICATOR DISPLAY INACCURATE OR INOPERATIVE

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Instrument cluster
