Compass/Temperature Mirror Inoperative

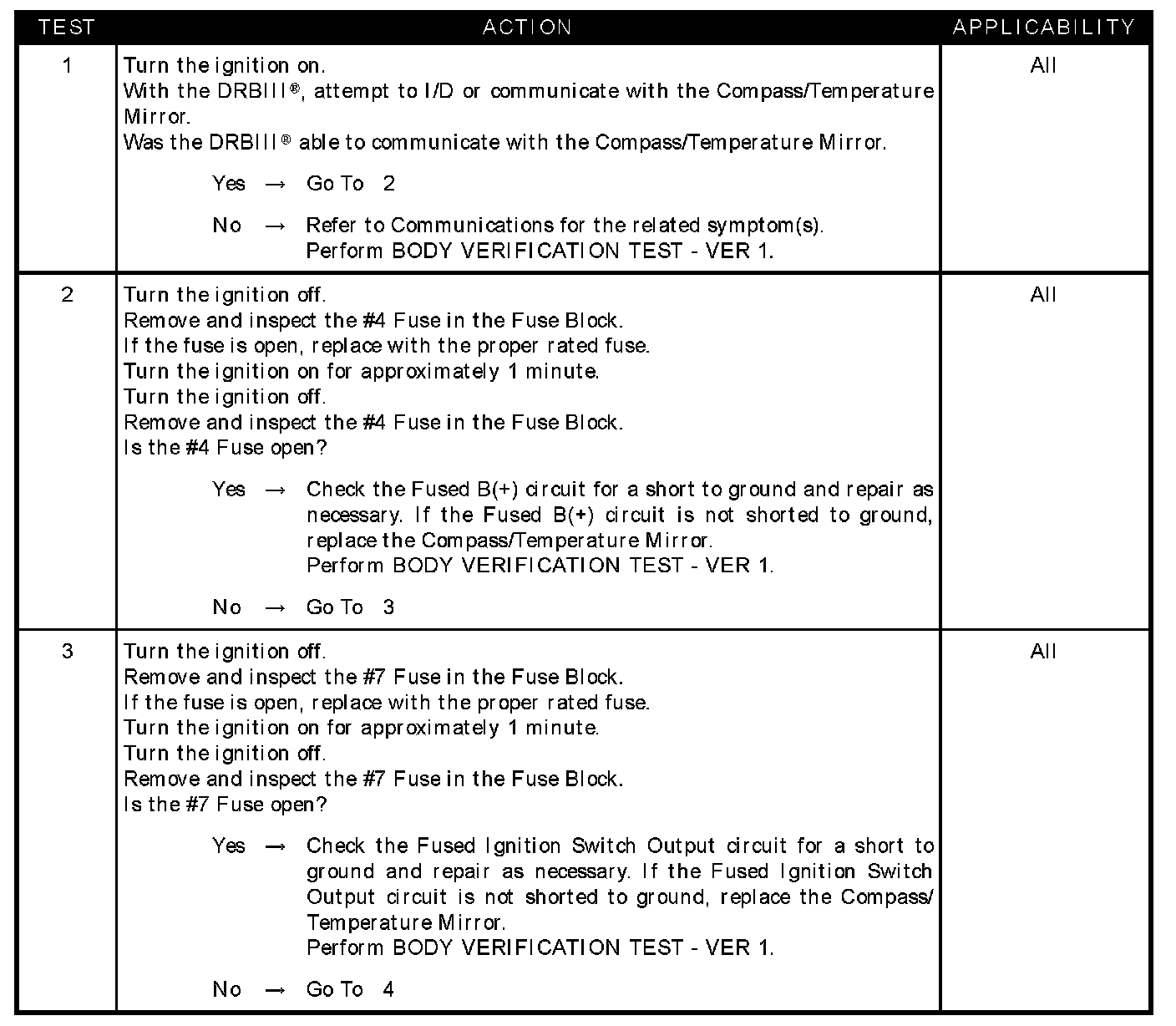

Test 1 - 3:

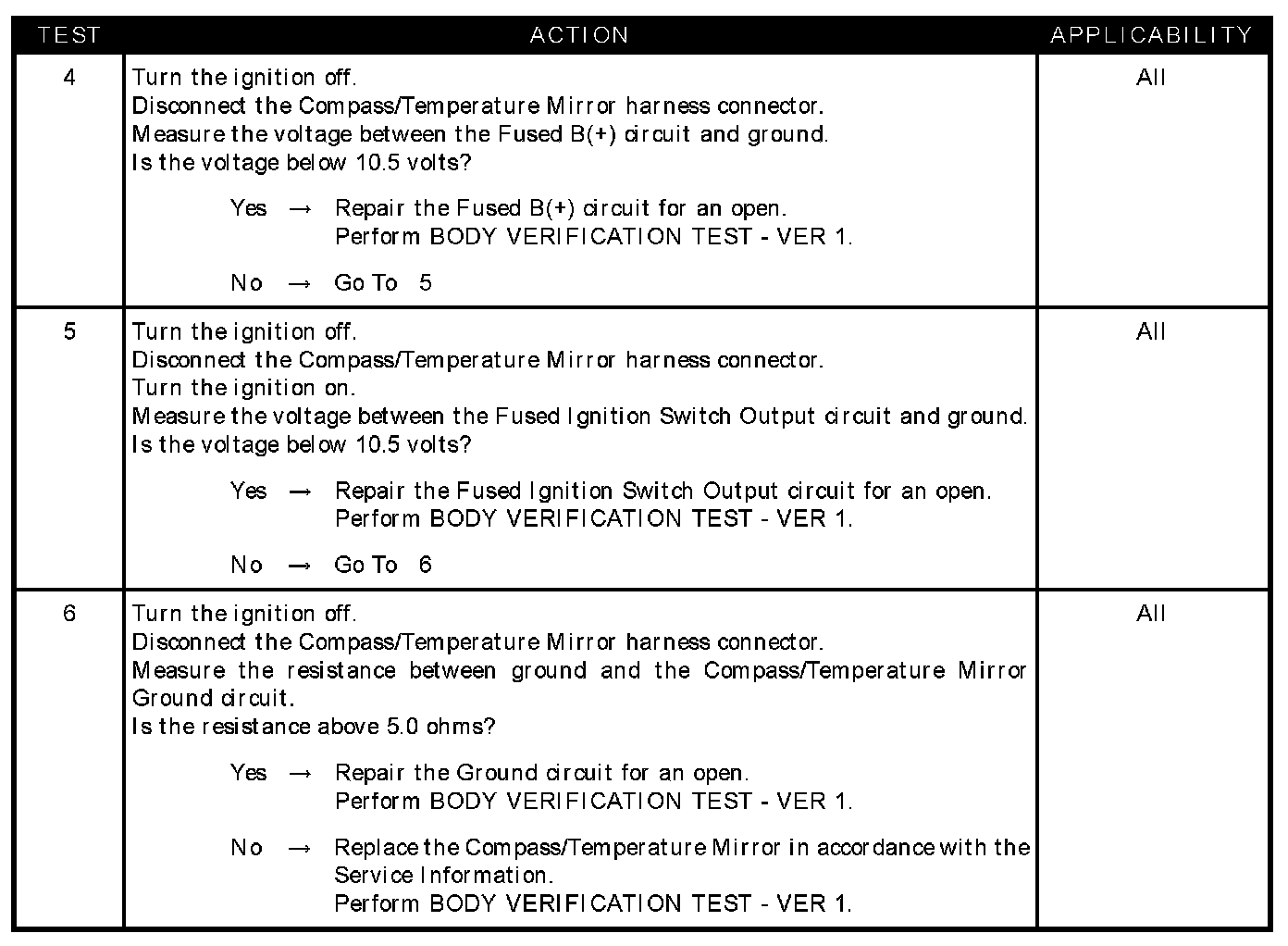

Test 4 - 6:

SYMPTOM
COMPASS/TEMPERATURE MIRROR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI BUS - compass
- Fused B(+) circuit short to ground
- Fused B(+) circuit open
- Fused ignition switch output circuit short to ground
- Fused ignition switch output circuit open
- Ground circuit open
- Compass/temperature mirror
