Hose - Return

REMOVAL - POWER STEERING RETURN HOSE

NOTE: Before proceeding with this procedure, Refer to Service Precautions.

1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Raise the vehicle.

Part 1 Of 2:

Part 2 Of 2:

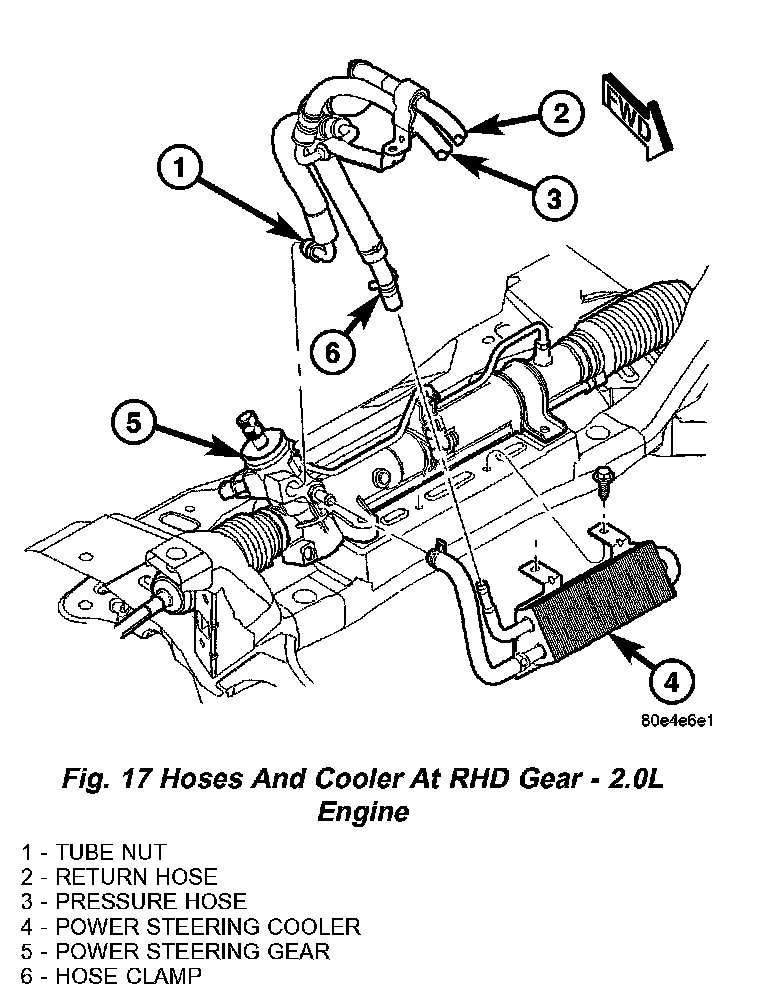

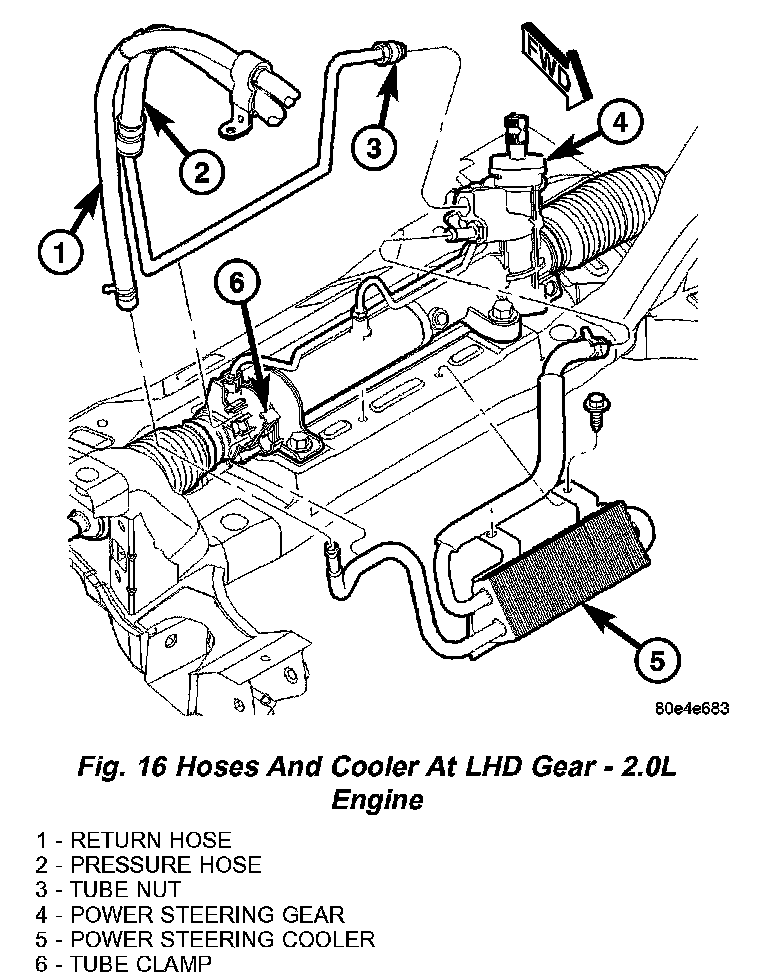

3. Remove the hose clamp securing the return hose to the power steering cooler tube (Fig. 16) (Fig. 17). Slide the hose off the end of the cooler tube.
4. Lower the vehicle.

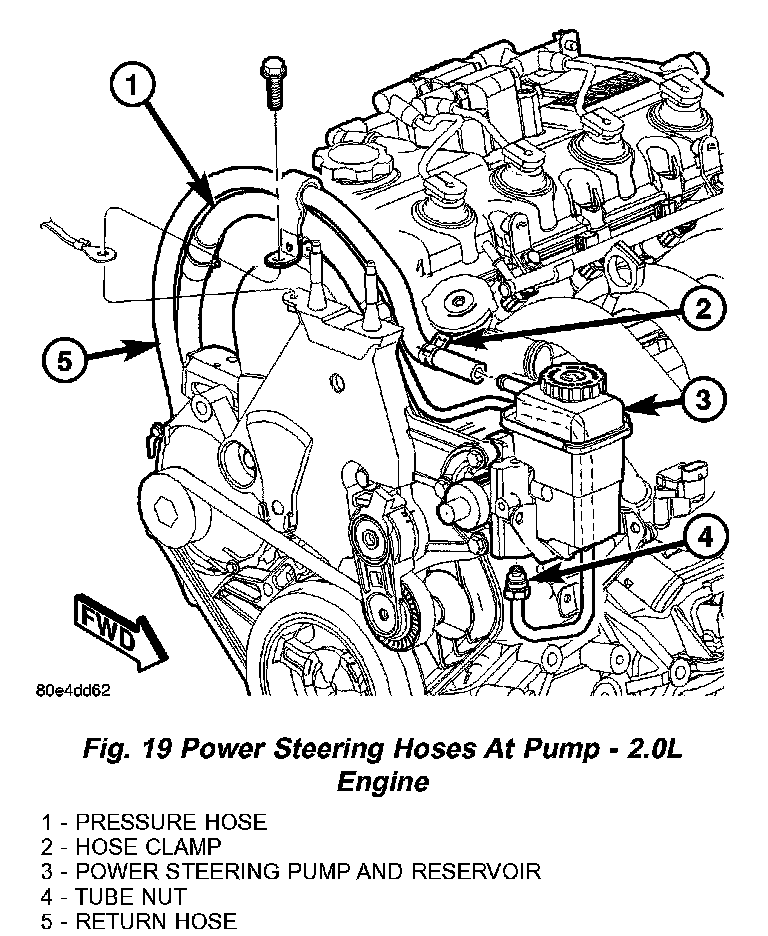

5. Remove the hose clamp securing the return hose to the power steering fluid reservoir (Fig. 19). Slide the hose off the end of the reservoir fitting.
6. Remove the bolt securing the hose routing bracket to the engine mount dragon head (Fig. 19). Remove the hose from the bracket.

INSTALLATION
1. Slide a hose clamp onto the power steering pump end of the hose far enough to clear the fitting on the power steering fluid reservoir once the hose is installed.
2. Install the power steering return hose into the engine compartment from the top. First, guide the pump end of the hose onto the fitting of the power steering pump fluid reservoir (Fig. 19), then route the rest of the hose along the right side of the engine. Guide the remaining end of the hose down behind the engine towards the power steering gear.
3. Expand the hose clamp and slide it onto the fluid reservoir fitting. Secure the clamp once it is past the bead formed into the fluid reservoir fitting.
4. Install the hose into the hose routing bracket aligning it as shown and attach the bracket to the engine mount dragon head along with the ground strap (Fig. 19). Tighten the screw to a torque of 12 Nm (105 inch lbs.).
5. Raise the vehicle.

CAUTION: The power steering fluid hoses must remain away from the exhaust system, vehicle components, and unfriendly surfaces that can cause possible damage to the power steering hoses.

6. Using a lint free towel, wipe clean the open power steering hose end and the power steering fluid cooler tube.
7. Install a hose clamp onto the end of the hose far enough to clear the fitting on the cooler once the hose is installed.
8. Slide the hose onto the end of the cooler tube (Fig. 16) (Fig. 17). Install the hose clamp past the bead formed into the cooler tube and secure in place.
9. Lower the vehicle.
10. Perform the POWER STEERING PUMP INITIAL OPERATION procedure.
11. Check for leaks at all hose connections.
