Headlamp Switch: Testing and Inspection
DIAGNOSIS AND TESTING - HEADLAMP LEVELING SWITCH - EXPORT1. Disconnect and isolate the negative battery cable.
2. Remove the headlamp leveling switch .

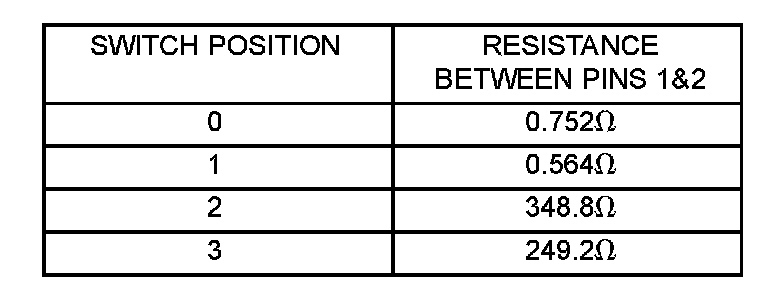

3. Using an ohmmeter and the HEADLAMP LEVELING SWITCH RESISTANCE table, check the resistance between switch connector pins 1&2.
4. If the test results are not as indicated in the table below, replace the switch. If test results are as indicated below, the switch is OK.
