Combination Switch: Testing and Inspection

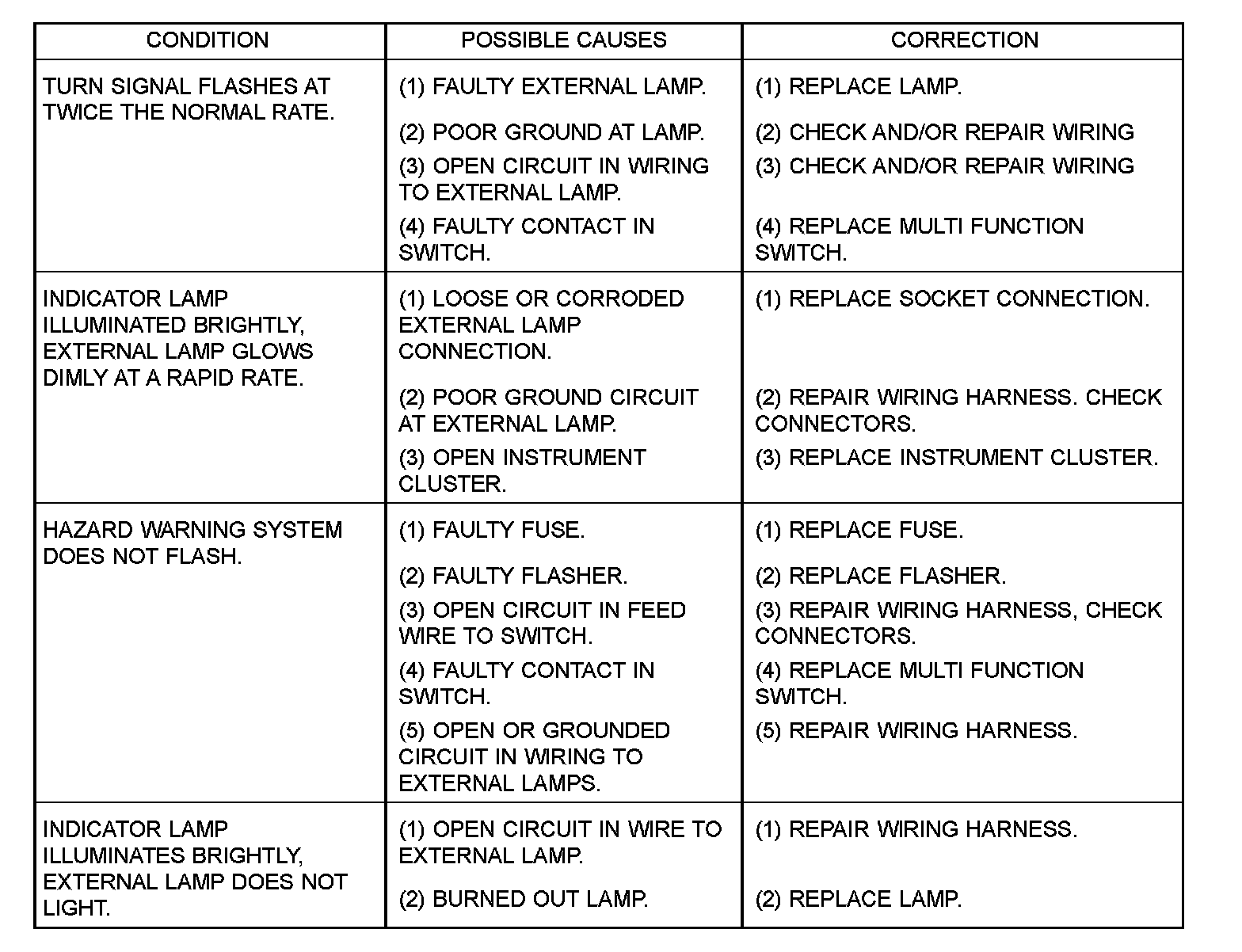

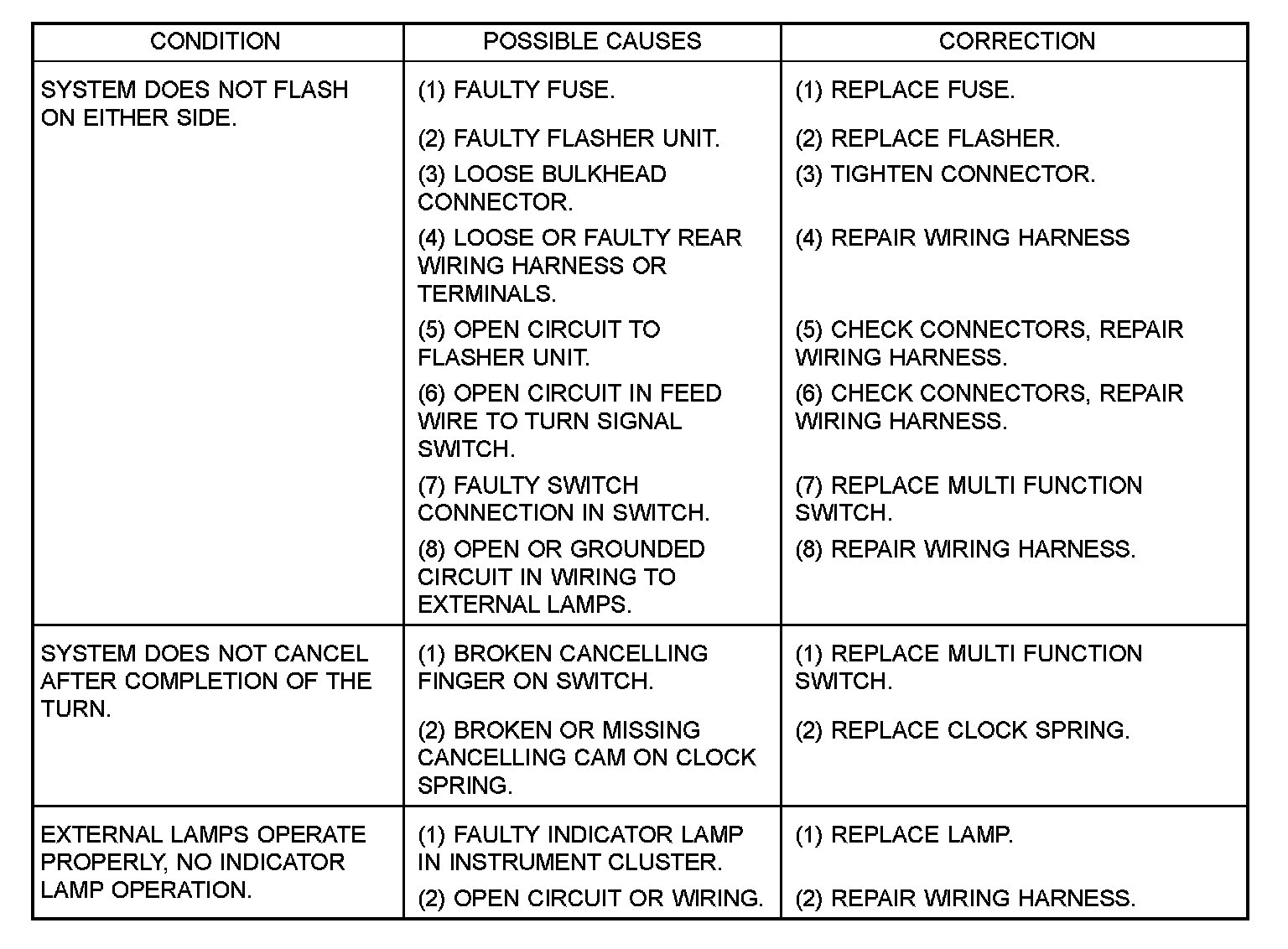

FLASHER DIAGNOSIS
Should any function of the multi-function switch fail, the entire switch assembly must be replaced.








SWITCH DIAGNOSIS
To test the switch:

1. Disconnect and isolate the battery negative cable.
2. Remove the upper and lower steering column shrouds.
3. Disconnect the switch connector.

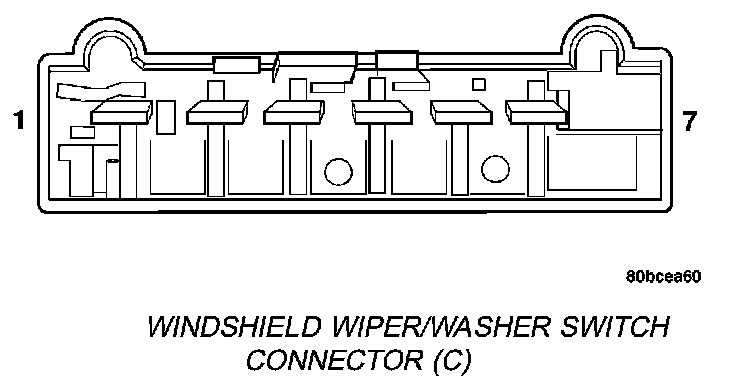

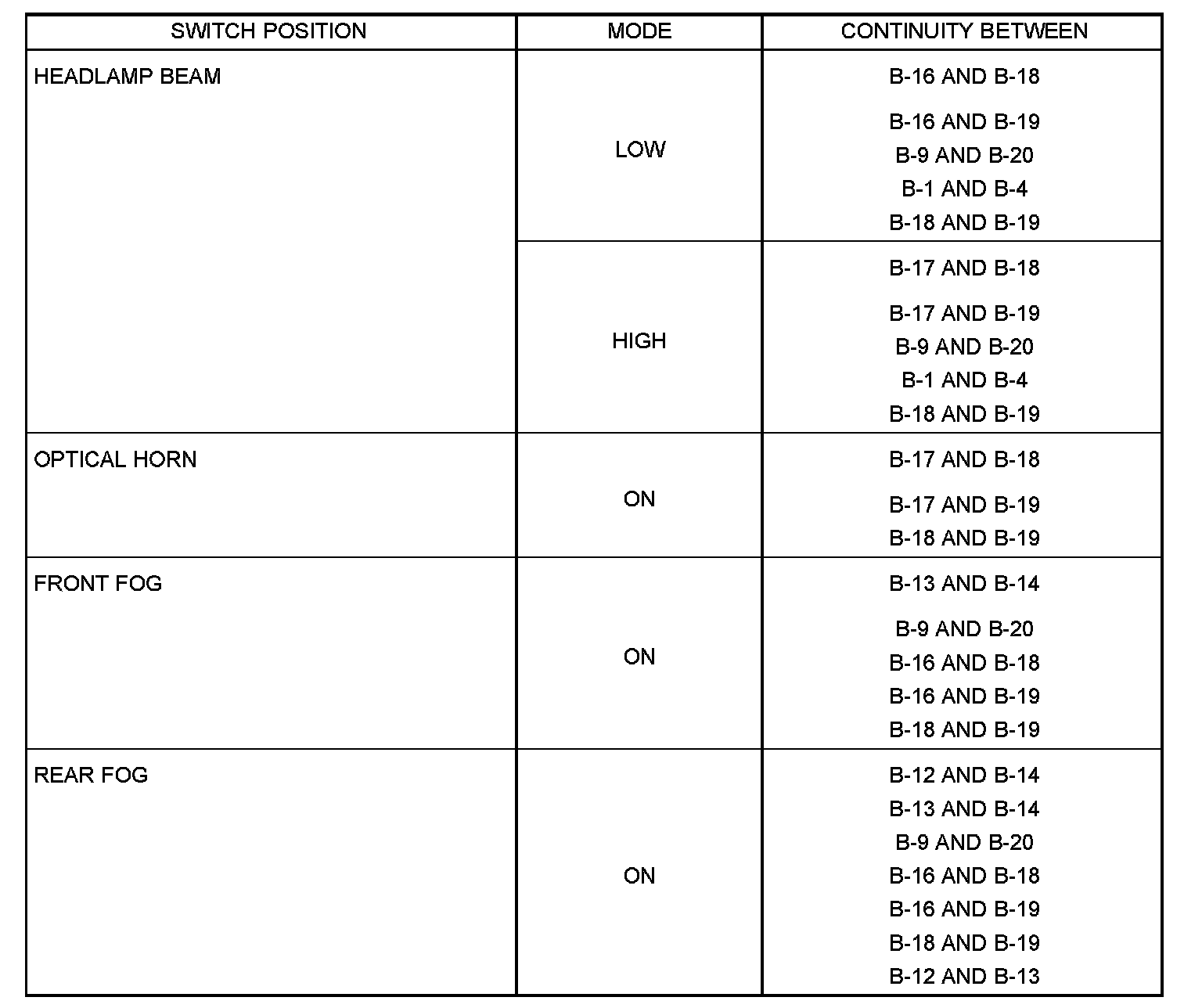

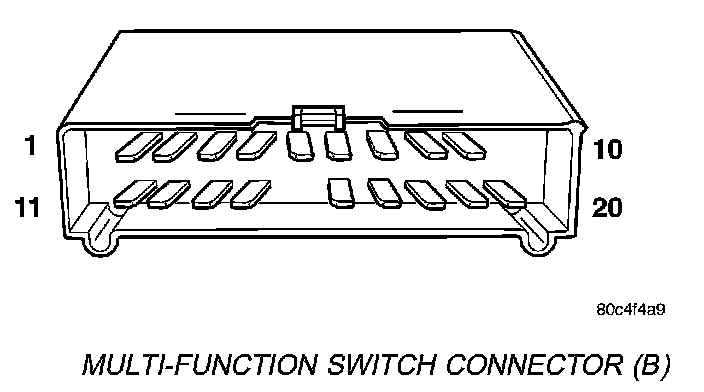

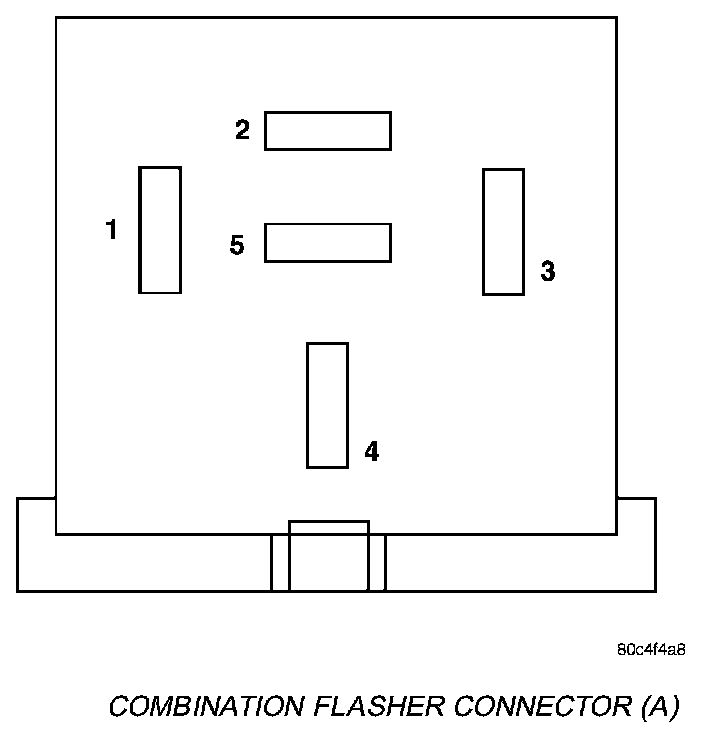

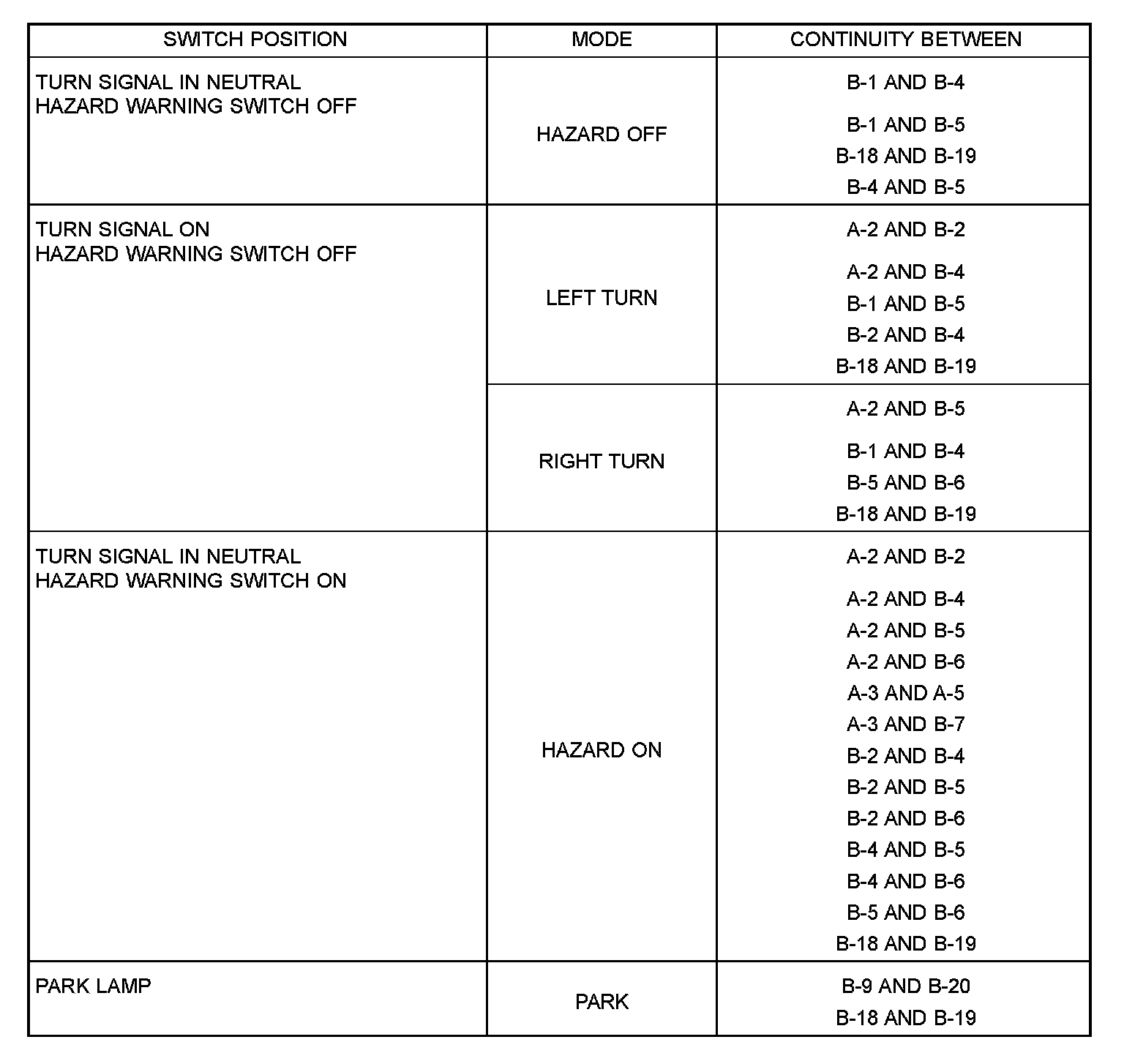

Using an ohmmeter, test for continuity (no resistance) between the terminals of the switch as shown in the Multi-Function Switch Continuity Test table for diagnosis. Refer to above figures for connector terminal locations.
