License Plate Lamp: Service and Repair

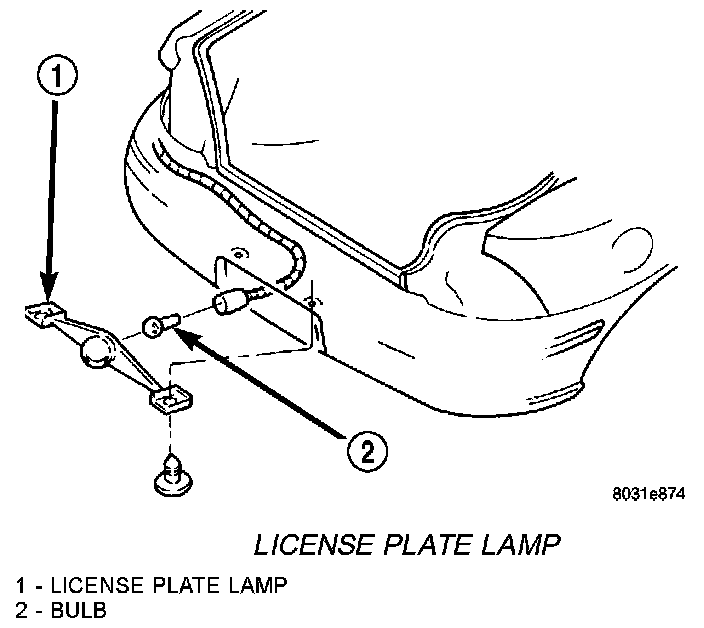

REMOVAL
1. Disconnect and isolate the battery negative cable.




2. Remove screws attaching license plate lamp to rear bumper fascia.
3. Remove lamp from rear bumper fascia.
4. Remove bulb socket from lamp.
5. Remove lamp.

INSTALLATION
1. Install bulb socket into lamp.
2. Place lamp in position.
3. Install screws attaching license plate lamp to rear bumper fascia.
4. Connect the battery negative cable.
