Headlamp: Service and Repair

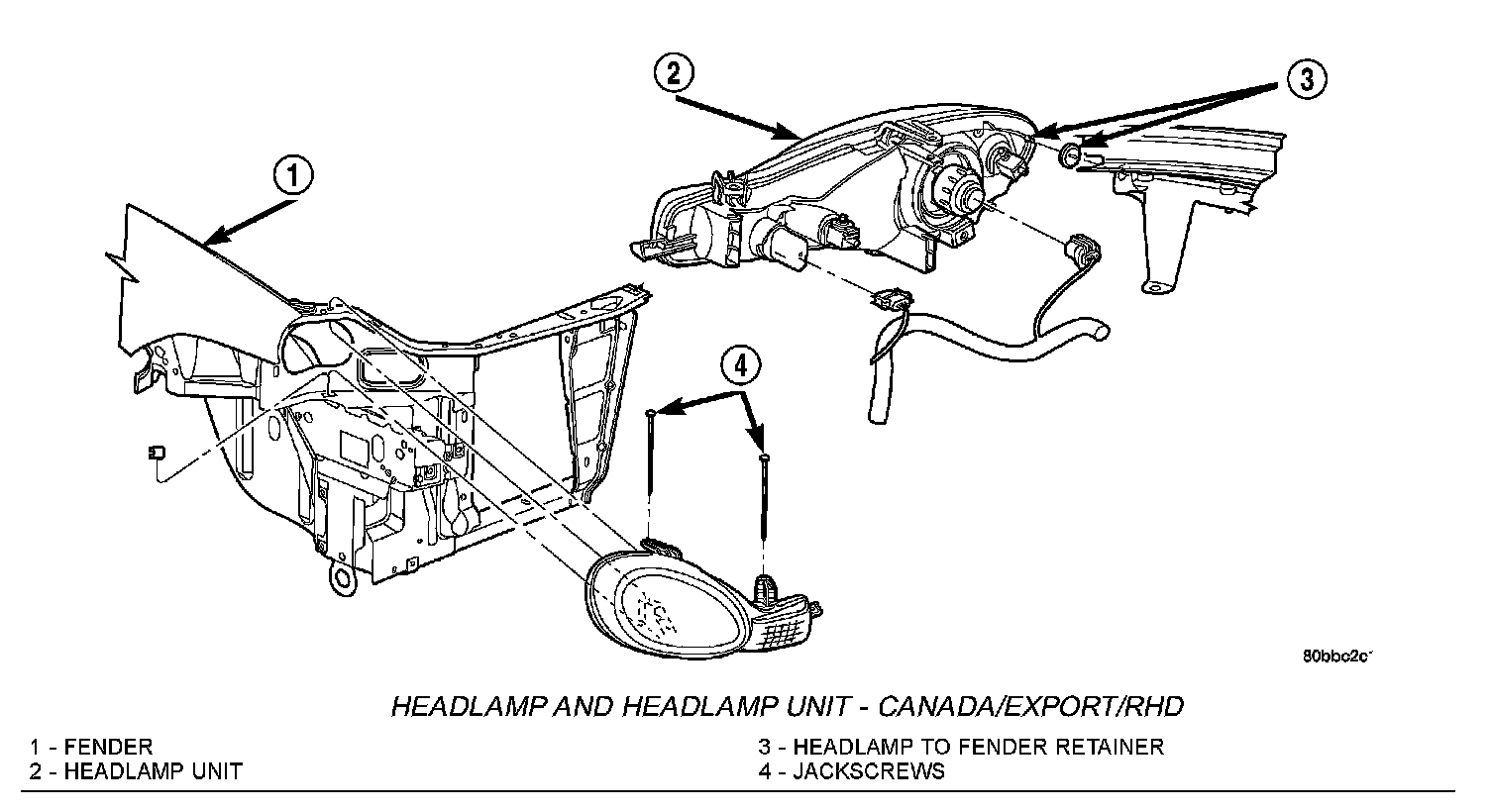

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove two screws attaching headlamp unit to upper crossmember.
3. Remove three screws attaching fascia to radiator crossmember and carefully bend fascia forward to allow removal of headlamp unit.
4. Remove headlamp unit from vehicle.

Knock Sensor Removal/Installation:

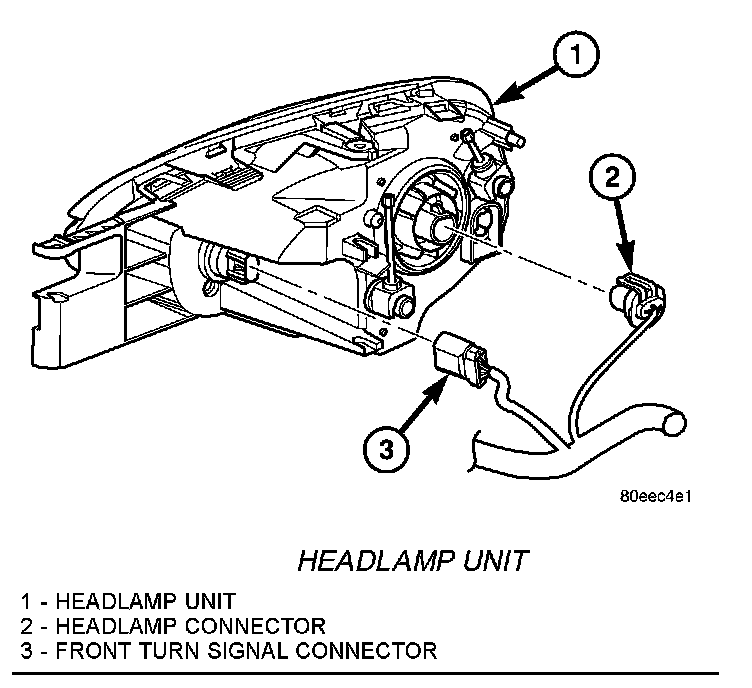

5. Disconnect wire connector from back of headlamp.
6. Rotate retaining ring counterclockwise one quarter turn.
7. Remove retaining ring from headlamp unit.

Knock Sensor Location:

8. Remove bulb from headlamp unit.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Install bulb into headlamp module.
2. Install retaining ring to headlamp unit.
3. Rotate retaining ring clockwise one quarter turn.
4. Connect wire connector to the back of headlamp bulb.
5. Place headlamp unit in position.
6. Install two screws attaching headlamp unit to upper crossmember.
7. Install screws attaching fascia to upper radiator crossmember.
8. Connect the battery negative cable.
