Hazard Warning Flasher: Service and Repair

REMOVAL

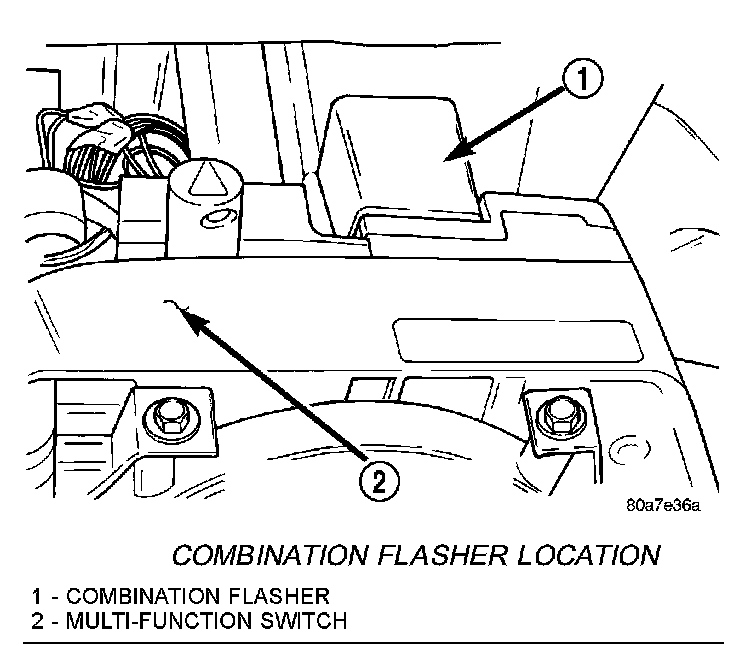

The flasher is mounted to the back side of the multi-function switch.
1. To gain access the upper steering column shroud must be removed. Refer to Steering, Column, Column Shroud, Removal.
2. The flasher can be removed by pulling it toward the instrument cluster (forward).

The flasher is serviced separately from the multifunction switch.

INSTALLATION
The flasher is serviced separately from the multifunction switch.
1. The flasher can be installed by pushing it toward the back of the steering wheel.
2. Install the upper steering column shroud. Refer to Steering, Column, Column Shroud, Installation.
