Fog/Driving Lamp Bulb: Adjustments

Rubber Insulators And Coil:

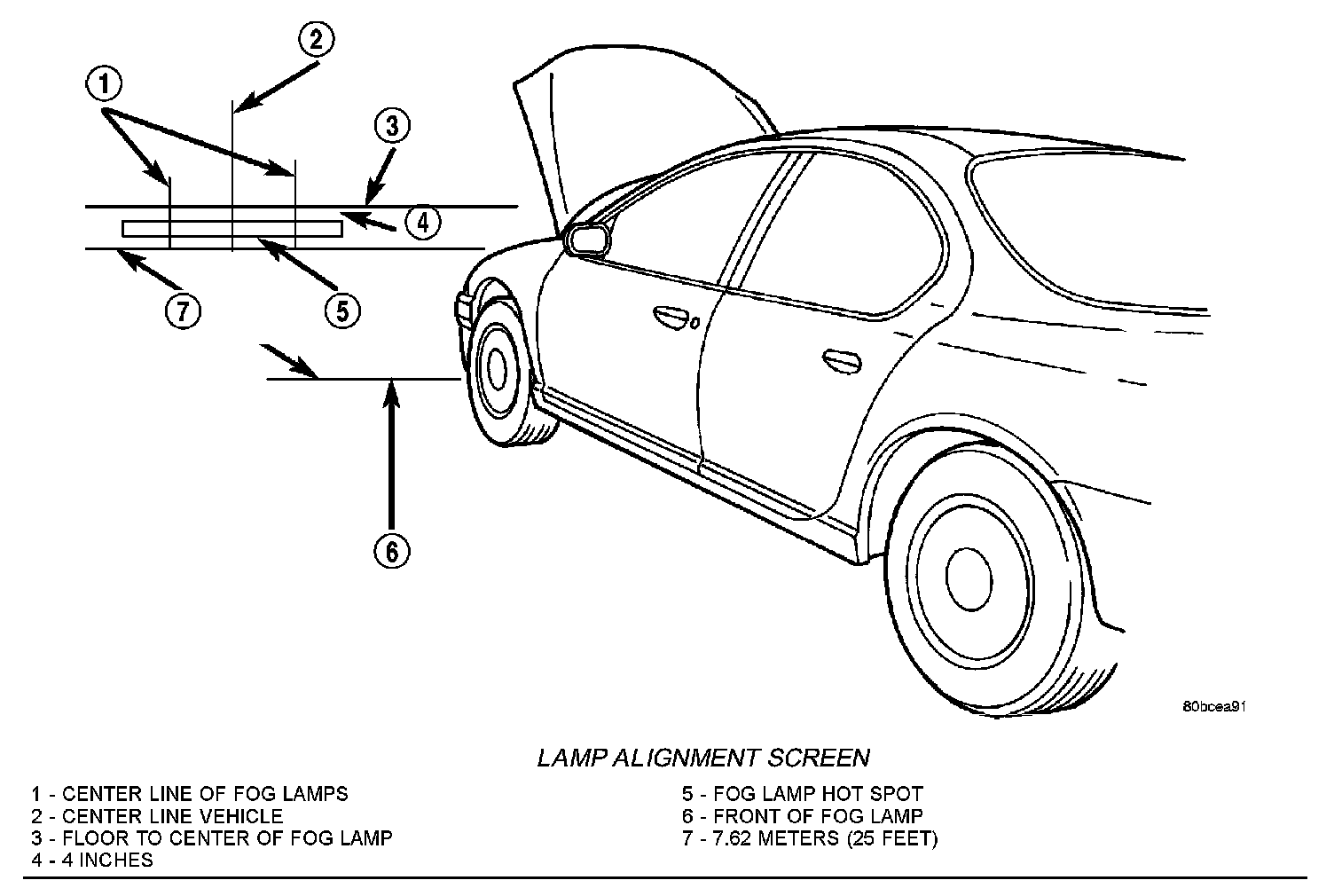

Prepare an alignment screen. Disengage the wire connectors from the back of the headlamp bulbs to disable the headlamps. This will allow a more accurate projection reading of the fog lamps. Turn on the headlamp switch and actuate the fog lamp switch. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the horizontal fog lamp center line and straight ahead.

FOG LAMP ALIGNMENT
To adjust fog lamp alignment, rotate the alignment screw located at the top edge of the fog lamp until desired position on alignment screen is reached.

FOG LAMP ALIGNMENT - CANADA/EXPORT/RHD
To adjust fog lamp alignment, rotate the alignment screw located on the bottom of the fog lamp from under the fascia to achieve the specified pattern position.
