Instrument Cluster / Carrier: Locations

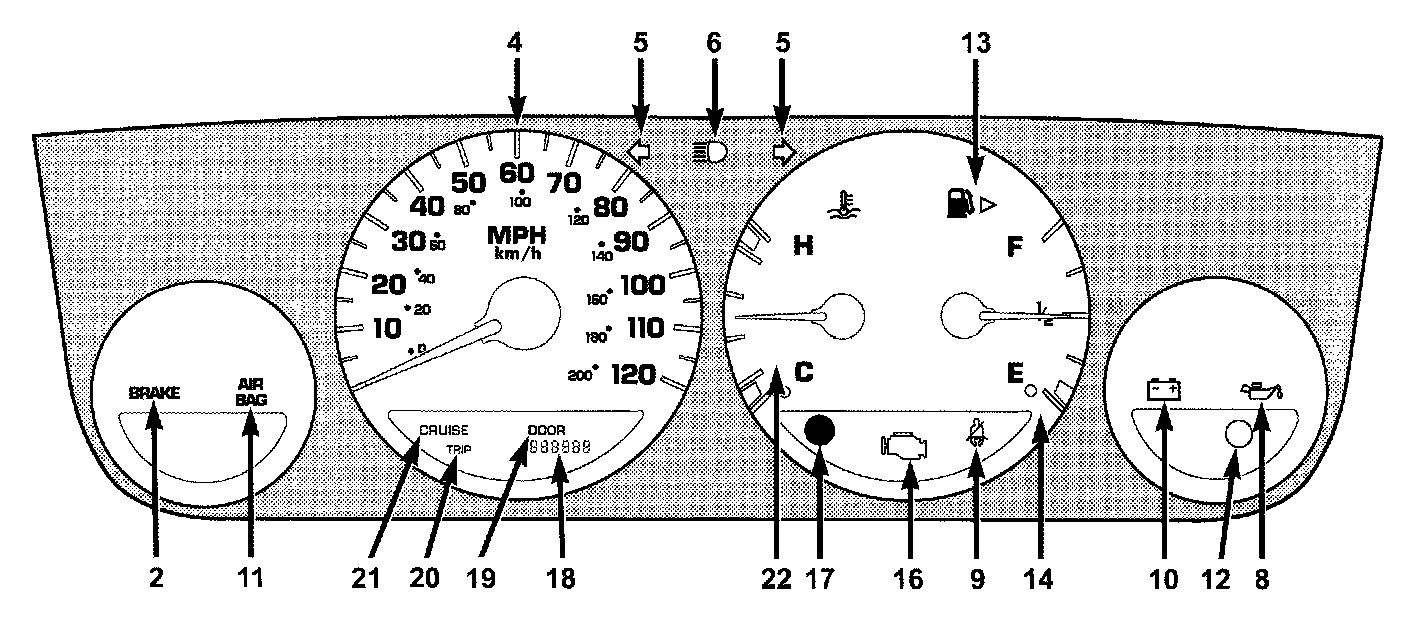

Instrument Cluster Standard:

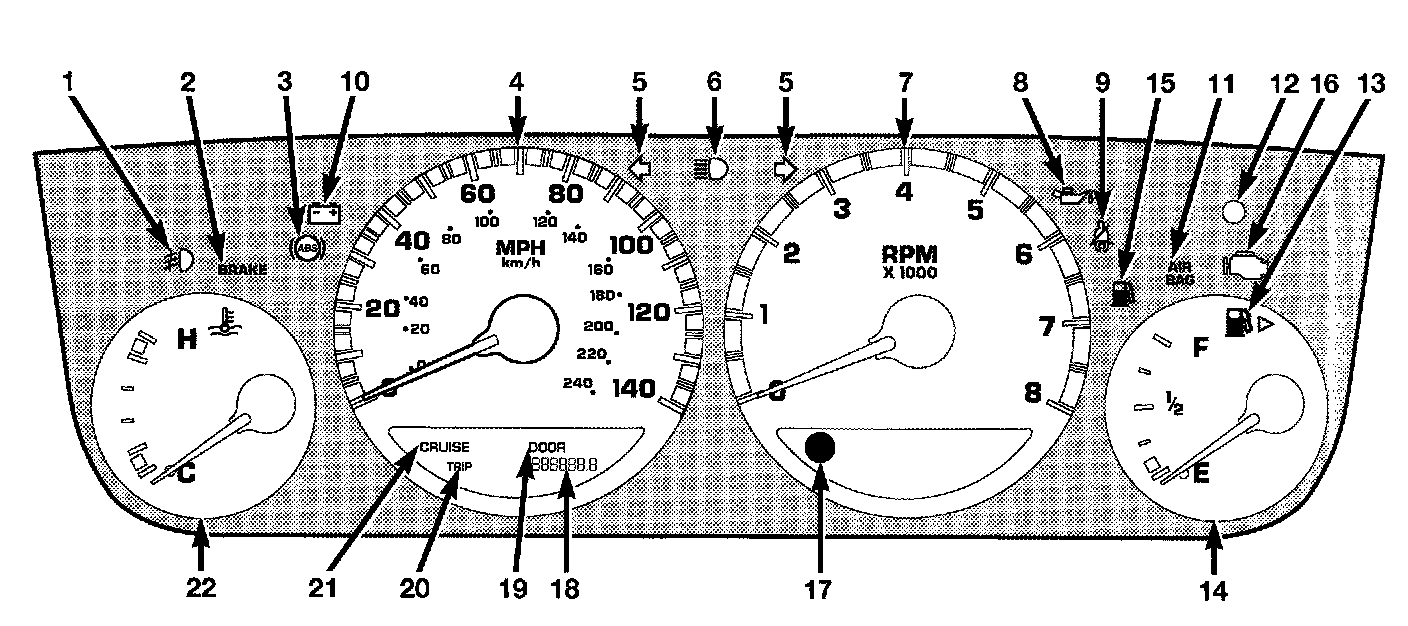

Optional Instrument Cluster:

Optional Instrument Cluster - R/T Model:

INSTRUMENT CLUSTER DESCRIPTIONS

1. Fog Light Indicator (If Equipped)
2. Brake System Warning Light
3. Anti-Lock Warning Light (ABS) (If Equipped)
4. Speedometer
5. Turn Signal Indicators
6. High Beam Indicator
7. Tachometer (If Equipped)
8. Oil Pressure Light
9. Seat Belt Reminder Light
10. Charging System Light
11. Airbag Light
12. Theft Alarm Light (If Equipped)
13. Fuel Door Reminder
14. Fuel Gauge
15. Low Fuel Light (If Equipped)
16. Malfunction Indicator Light
17. Odometer / Trip Odometer Reset Knob
18. Odometer / Trip Odometer
19. Door Ajar Indicator
20. Trip Indicator
21. Cruise Light (If Equipped)
22. Temperature Gauge
