Accessory Switch Bezel

REMOVAL

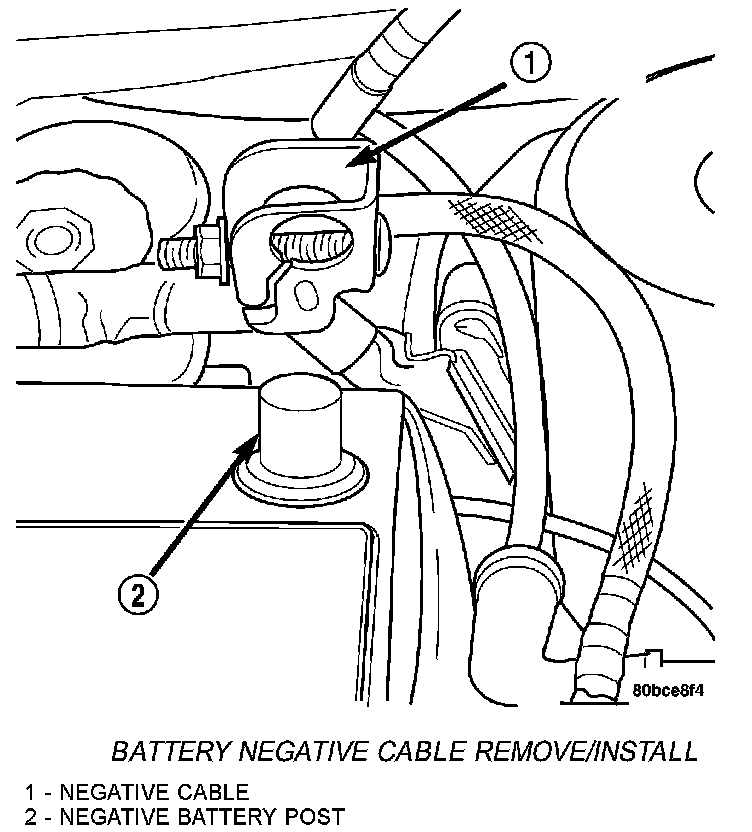

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel. Refer to Body, Instrument Panel, Instrument Panel Center Bezel Removal.
3. Remove four screws retaining accessory switch bezel.
4. Disconnect the harness connectors to the following:
- Rear Window Defogger Switch (if equipped)
- Cigar Lighter/Power Outlet

The accessory switches are not serviced separately, but the cigar lighter/power outlet is and must be transferred to the new bezel. Refer to Electrical, Power Distribution, Cigar Lighter/Power Outlet Removal and Installation.

INSTALLATION
The accessory switches are not serviced separately, but the cigar lighter/power outlet is and must be transferred to the new bezel. Refer to Electrical, Power Distribution, Cigar Lighter/Power Outlet Removal and Installation.
1. Connect the harness connectors to the following:
- Cigar Lighter/Power Outlet
- Rear Window Defogger Switch (if equipped)

2. Install the four screws retaining the accessory switch bezel.
3. Install the instrument panel center bezel. Refer to Body, Instrument Panel, Instrument Panel Center Bezel, Installation.
4. Connect the battery negative cable.
