Condensation Drain Tube

REMOVAL
1. Raise vehicle on a hoist.

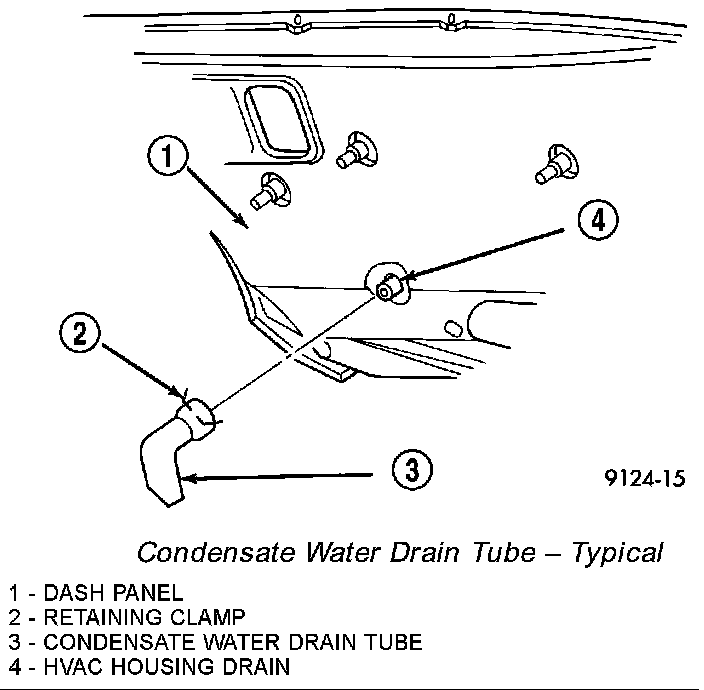

Condensate Water Drain Tube - Typical:

2. Locate the condensate water drain tube on right side of dash panel under the hood.

INSTALLATION
1. Position the condensate water drain tube over the HVAC housing drain.
2. Squeeze the retaining clamp and install the condensate water drain tube onto the HVAC housing drain.
3. Lower the vehicle.
