Heater and Air Conditioning

A manually controlled single zone type heating-air conditioning system or a manually controlled heater-only system is available as standard equipment on this model (depending on market).

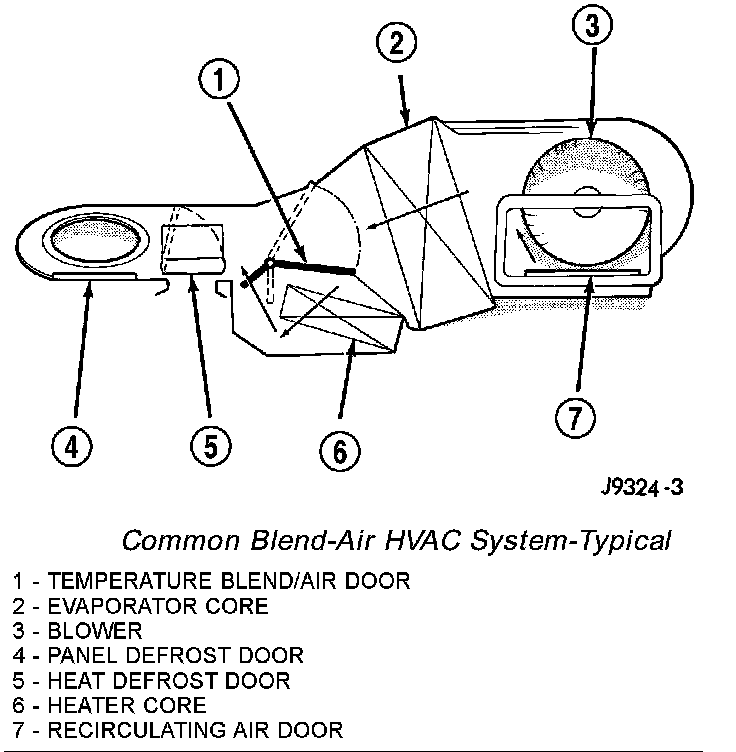

Common Blend-Air HVAC System - Typical:

All vehicles are equipped with a common heater, ventilation and air conditioning (HVAC) housing. The system combines air conditioning, heating and ventilation capabilities in a single unit mounted within the passenger compartment under the instrument panel. The HVAC housing includes:
- Blower motor
- Blower motor resistor block

Based upon the system mode selected, conditioned air can exit the standard heater-only or optional heater-A/C unit housing through one or a combination of the three main housing outlets: defrost, panel or floor. The defrost and panel outlets are located on the face of the housing and the floor outlet is located on the bottom of the housing. Once the conditioned air exits the HVAC housing, it is further directed through molded plastic ducts to the various outlets in the vehicle interior. These outlets and their locations are as follows:

- Defroster Outlet - A single large defroster outlet is located in the center of the instrument panel top cover, near the base of the windshield.
- Side Window Demister Outlets - There are two side window demister outlets, one is located at each outboard end of the instrument panel top cover, near the belt line at the A-pillars.
- Panel Outlets - There are four panel outlets in the instrument panel, one located near each outboard end of the instrument panel facing the rear of the vehicle and two located near the top of the instrument panel center bezel.
- Front Floor Outlets - There are two front floor outlets. One located above each side of the floor panel center tunnel near the dash panel.

The heating and air conditioning system pulls outside (ambient) air through the cowl opening at the base of the windshield, then into the plenum chamber above the heating, ventilation and air conditioning (HVAC) housing. On models equipped with air conditioning, the air passes through the evaporator. Air flow can be directed either through or around the heater core. This is done by adjusting the blend-air door with the TEMP control on the instrument panel. The air flow can then be directed from the panel, floor and defrost outlets in various combinations using the mode selector. Air flow velocity can be adjusted with the blower speed selector switch on the instrument panel.

On models equipped with air conditioning, the ambient air intake can be controlled by opening and closing the recirculating air door. When placed in RECIRC, air that is inside the vehicle is continuously recirculated through the HVAC housing. Ambient air cannot be controlled on vehicles without A/C. The system uses outside air at all times.

The air conditioning compressor can be engaged by turning the fan switch counterclockwise from the Off position. It can also be engaged by placing the mode control in the mix to defrost positions. This will remove heat and humidity from the air before it is directed through or around the heater core.

The defroster outlet receives airflow from the HVAC housing through the molded plastic defroster duct, which is snapped onto the HVAC housing defroster outlet and secured by a tab to a mounting slot in the dash panel. The airflow from the defroster outlet is directed by fixed vanes in the defroster outlet grille and cannot be adjusted. The defroster outlet grille is integral to the instrument panel top cover.

The side window demister outlets receive airflow from the HVAC housing through the air outlet distribution duct, two molded plastic demister hoses and two intermediate ducts. The air outlet distribution duct is secured to the instrument panel with screws and receives airflow through the panel outlet of the HVAC housing. The airflow from the side window demister outlets is directed by fixed vanes in the demister outlet grilles and cannot be adjusted. The side window demister outlet grilles are integral to the instrument panel top cover. The demisters direct air from the HVAC housing through the outlets located on the top corners of the instrument panel. The demisters operate when the mode selector is anywhere between floor and defrost settings. Some air may be noticeable from the demister outlets when the mode selector is in the bi-level to floor positions.

The panel outlets also receive airflow from the HVAC housing through the air outlet distribution duct. Molded plastic panel outlet ducts direct airflow from the distribution duct to the outboard panel outlets, while a center air outlet duct directs airflow from the distribution duct to the two center panel outlets. The airflow from each of the panel outlets is adjustable. A knob in the center of each panel outlet grille is used in a joystick fashion to adjust a center diffuser that changes the airflow direction, and a knob on the outer edge of each panel outlet grille opens or closes a shutter to turn airflow on or off through that outlet.

The front floor outlets receive airflow from the HVAC housing through the floor distribution duct. The front floor outlets are integral to the molded plastic floor distribution duct, which is secured to the bottom of the HVAC housing. The floor outlets cannot be adjusted.
