A/C Heater Control

REMOVAL
1. Remove the instrument panel center stack bezel.

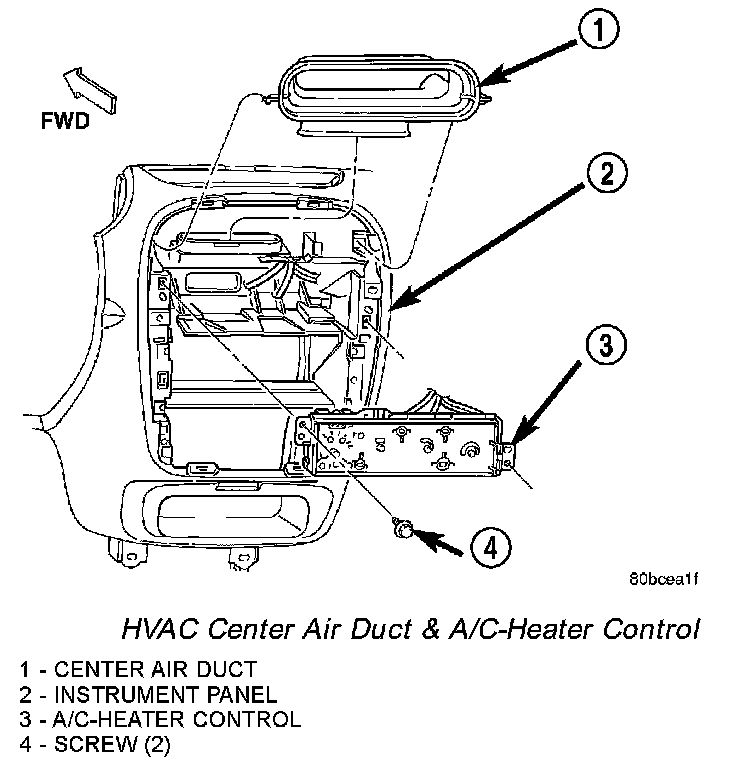

HVAC Center Air Duct & A/C-Heater Control:

2. Remove the center air duct.
3. Remove the screws that secure the A/C-heater control to the instrument panel.
4. Remove the A/C-heater control from the instrument panel.

A/C-Heater Control:

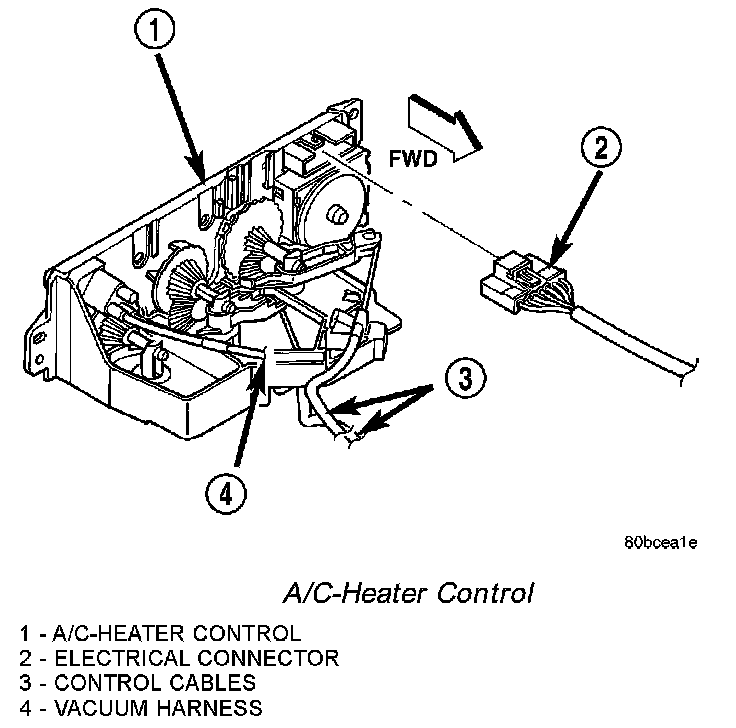

5. Disconnect the vacuum harness, control cables and wire harness from the A/C-heater control.

INSTALLATION
1. Connect the vacuum harness, control cables and wire harness to the back of the A/C-heater control and adjust the mode and temperature control cables.
2. Install the A/C-heater control to the instrument panel. Tighten the screws to 2.3 Nm (20 in. lbs.).
3. Install the center air duct.
4. Install the instrument panel center stack bezel.
