Without Air Conditioning

REMOVAL

NOTE: The blower motor is located on the bottom right side of the HVAC housing. The blower motor can be removed from the vehicle without having to remove the HVAC housing.

1. Disconnect and isolate the negative battery cable.
2. Disconnect the wire harness connector from the blower motor.

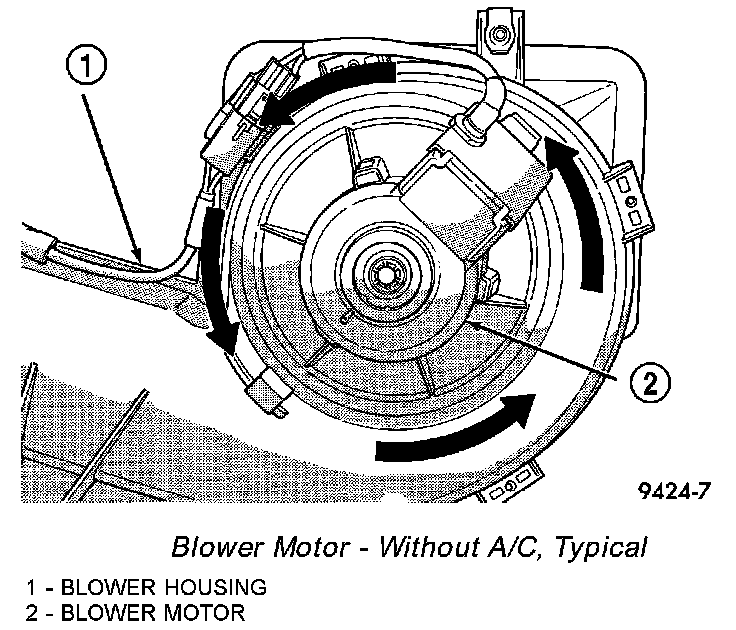

Blower Motor - Without A/C, Typical:

3. Grasp the blower motor while pulling down on the locking tab. Turn the blower motor approximately 1/8 turn counterclockwise.
4. Remove the blower motor from the blower housing.

INSTALLATION
1. Position the blower motor into the housing.
2. Rotate the blower motor clockwise until the tab snaps into the locked position, approximately 1/8 turn.
3. Connect the blower motor wire harness connector.
4. Reconnect the negative battery cable.
