Blower Motor Resistor: Service and Repair

CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed.

REMOVAL
1. Remove windshield wipers.
2. Remove cowl top screen.

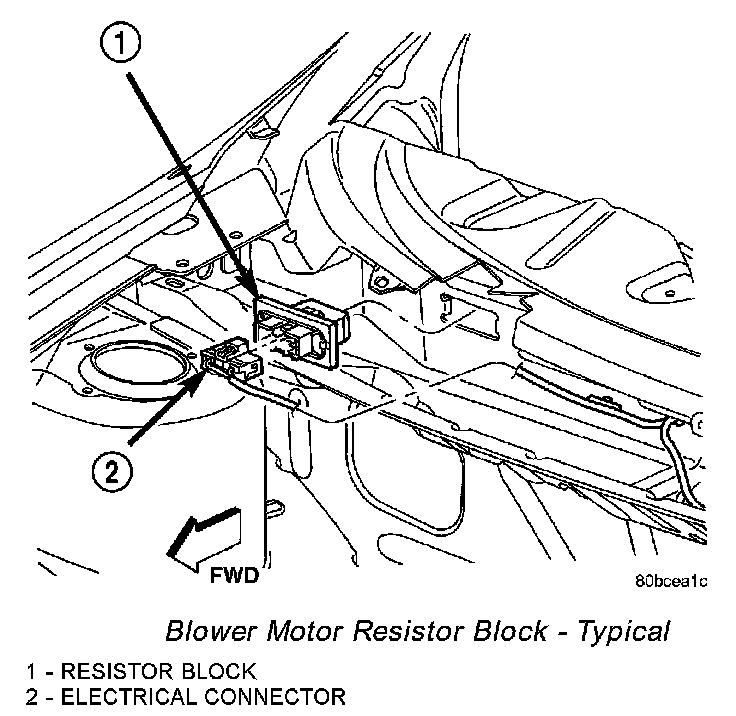

Blower Motor Resistor Block - Typical:

3. Disconnect the resistor block wire harness connector.
4. Remove/unsnap resistor block from vehicle.
5. Remove the resistor block from the vehicle.

INSTALLATION
1. Install the blower motor resistor block into the cowl.
2. Connect the resistor block wire harness connector.
3. Install the cowl top screen.
4. Install the windshield wipers.
5. Reconnect the battery negative cable.
