Defroster Ducts Replacement

REMOVAL
1. Remove the instrument panel from the vehicle.

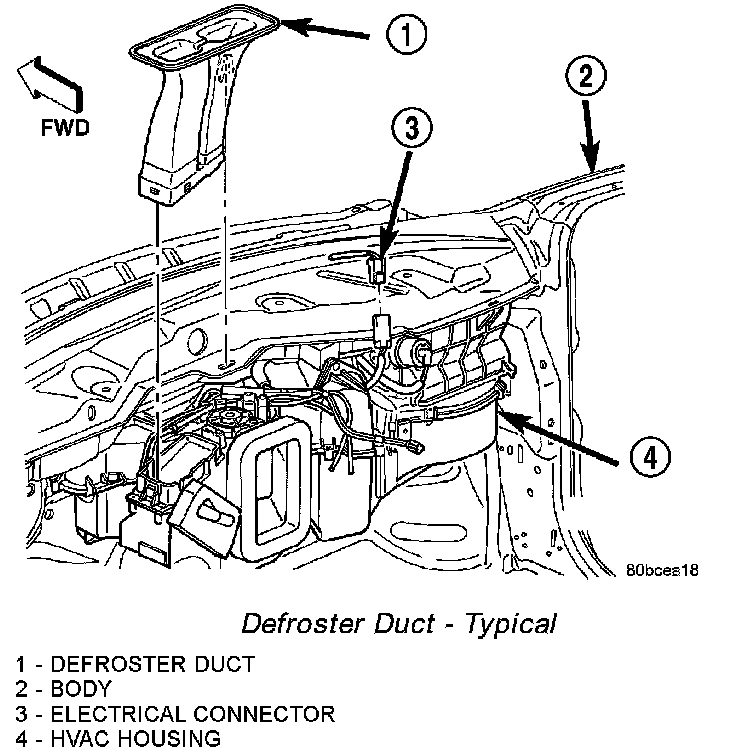

Defroster Duct - Typical:

2. Remove the defroster duct from the top of the HVAC housing.

INSTALLATION
1. Install the defroster duct onto the top of the HVAC housing. Snap the retainers into place.
2. Install the instrument panel.
