Air Door Cable: Service and Repair

REMOVAL

NOTE: The mode control cable can be removed and installed without having to remove the instrument panel from the vehicle.

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel.

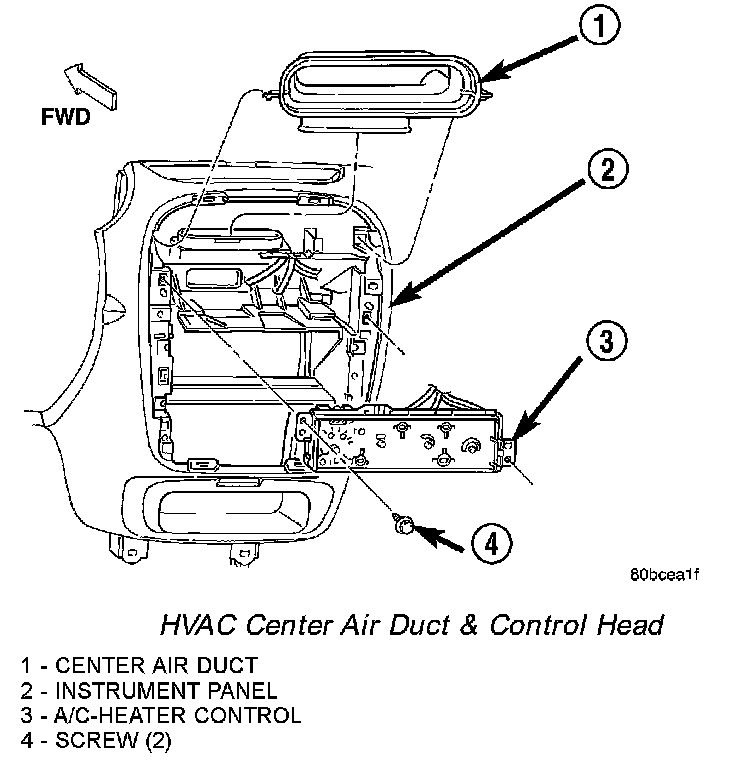

HVAC Center Air Duct & Control Head:

3. Remove center air duct.

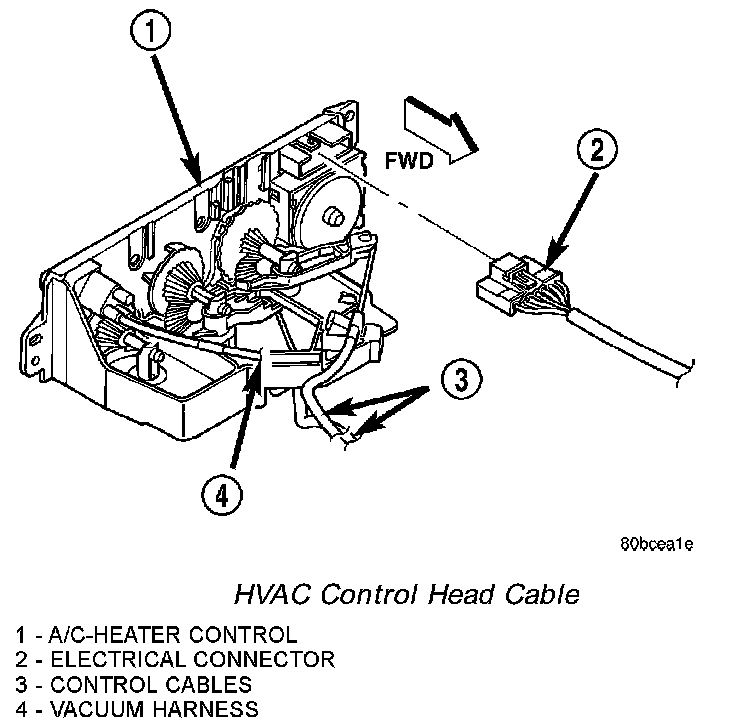

HVAC Control Head Cable:

4. Remove the A/C-heater control and disconnect the mode control cable.
5. Disconnect the mode control cable end from the mode door lever.
6. Remove the mode control cable through the instrument panel A/C-heater control opening.

INSTALLATION
1. Position the mode control cable through the instrument panel A/C-heater control opening.
2. Reach through the instrument panel center air duct opening to access and reconnect the mode control cable end to the mode door lever.
3. Install and tighten the screw that secures the mode control cable housing. Tighten the screw to 2.3 Nm (20 in. lbs.).
4. Install the instrument panel center stack bezel.
5. Reconnect the battery negative cable.
