Diagnosis By Symptom

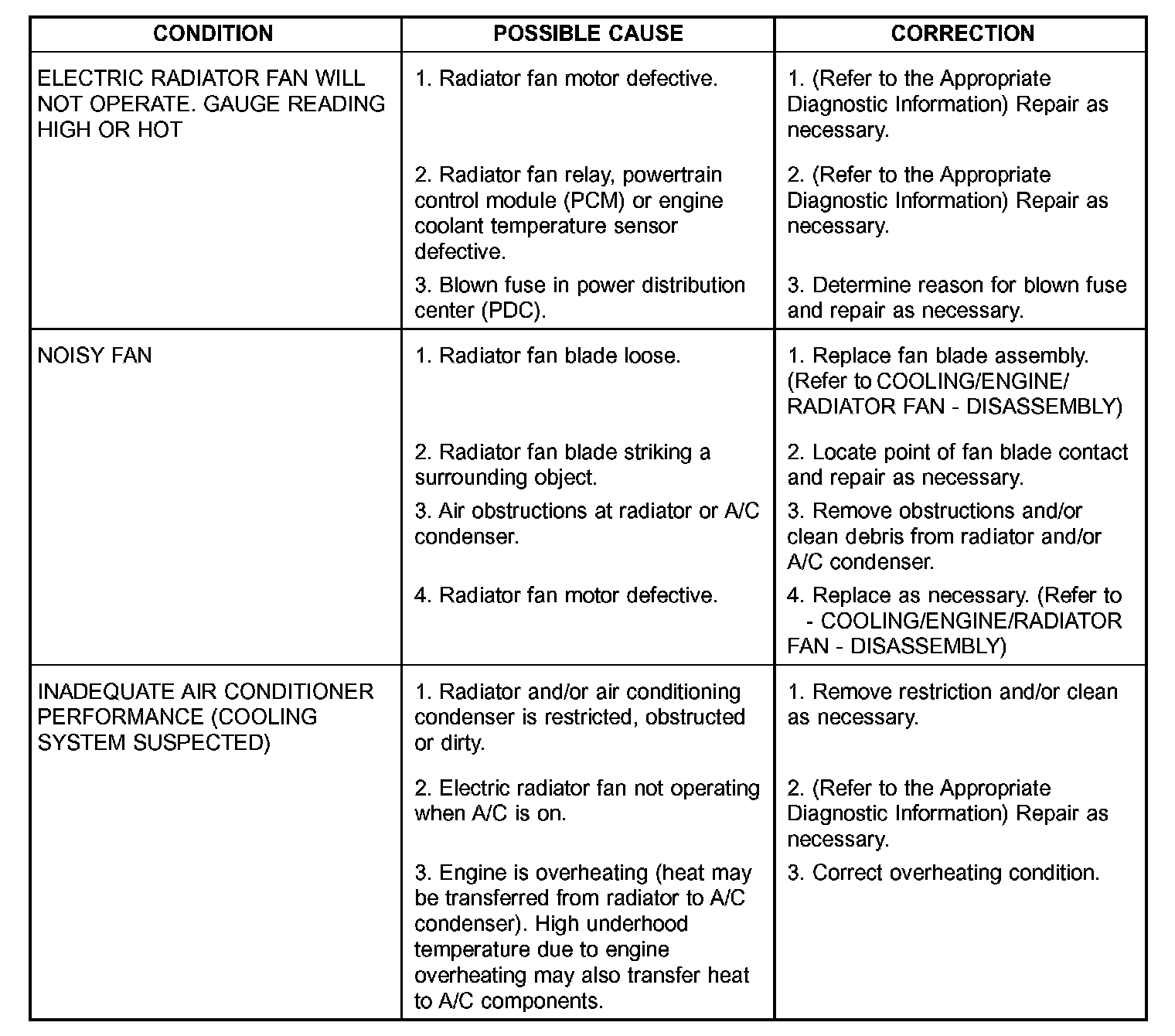

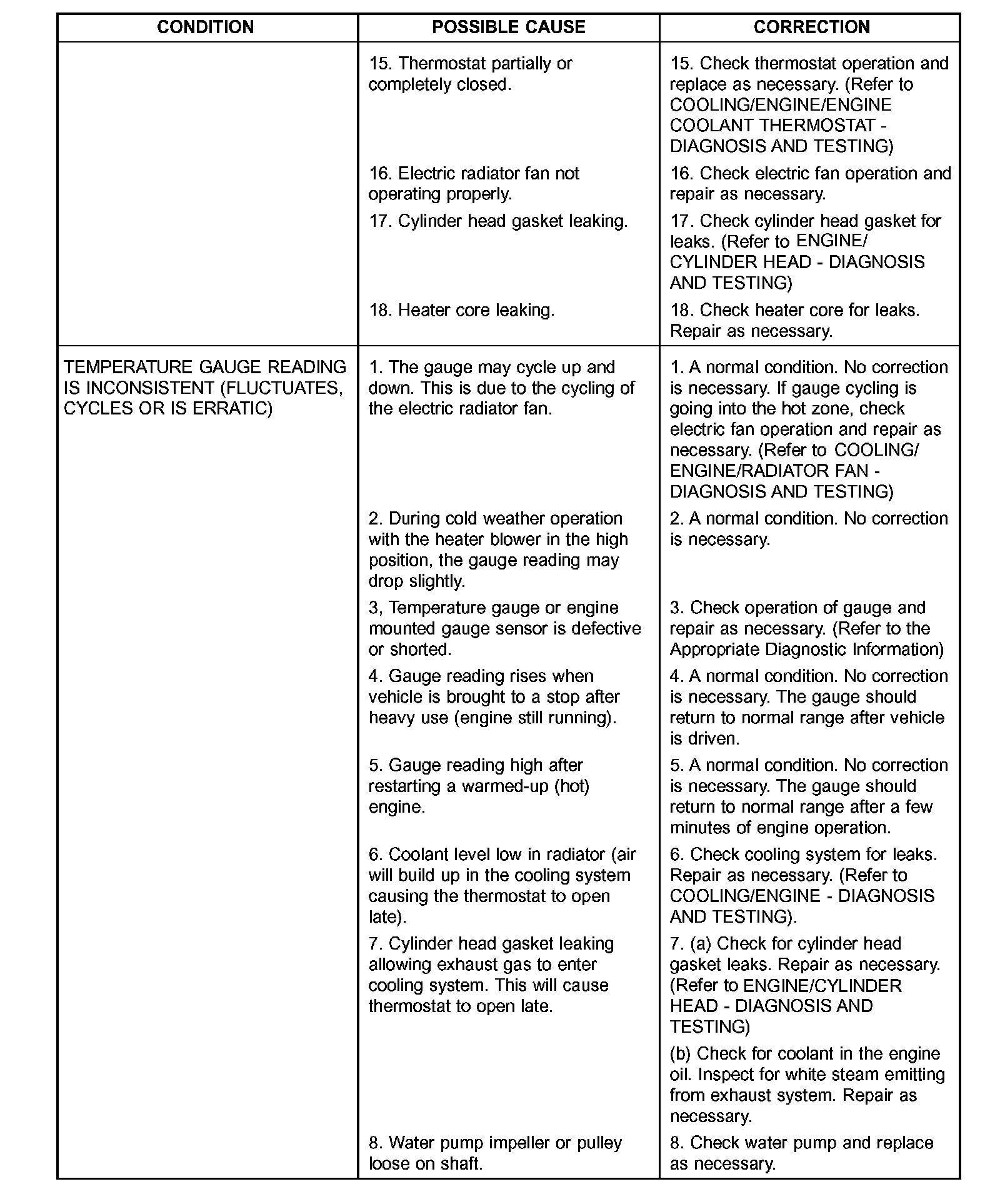

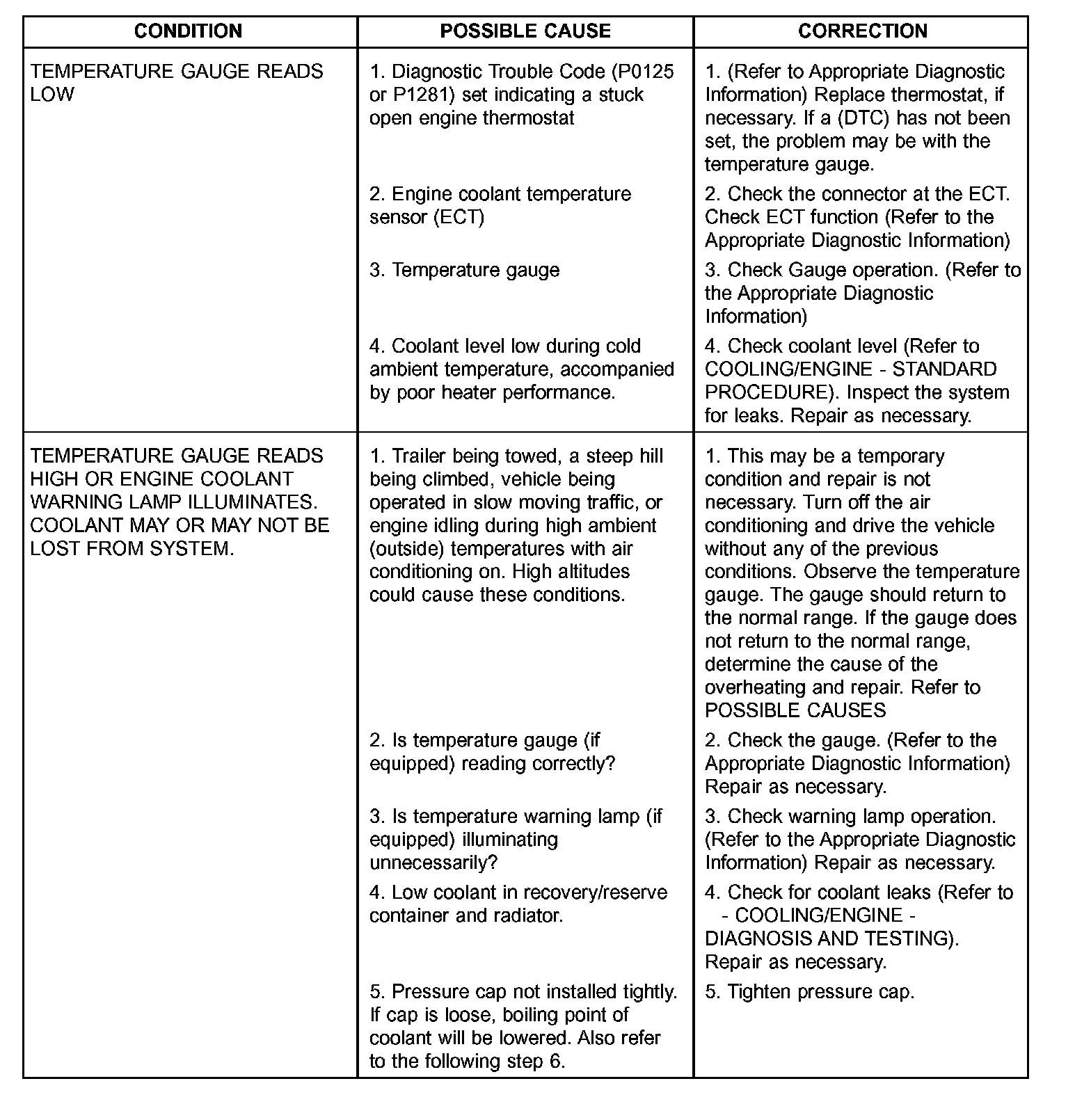

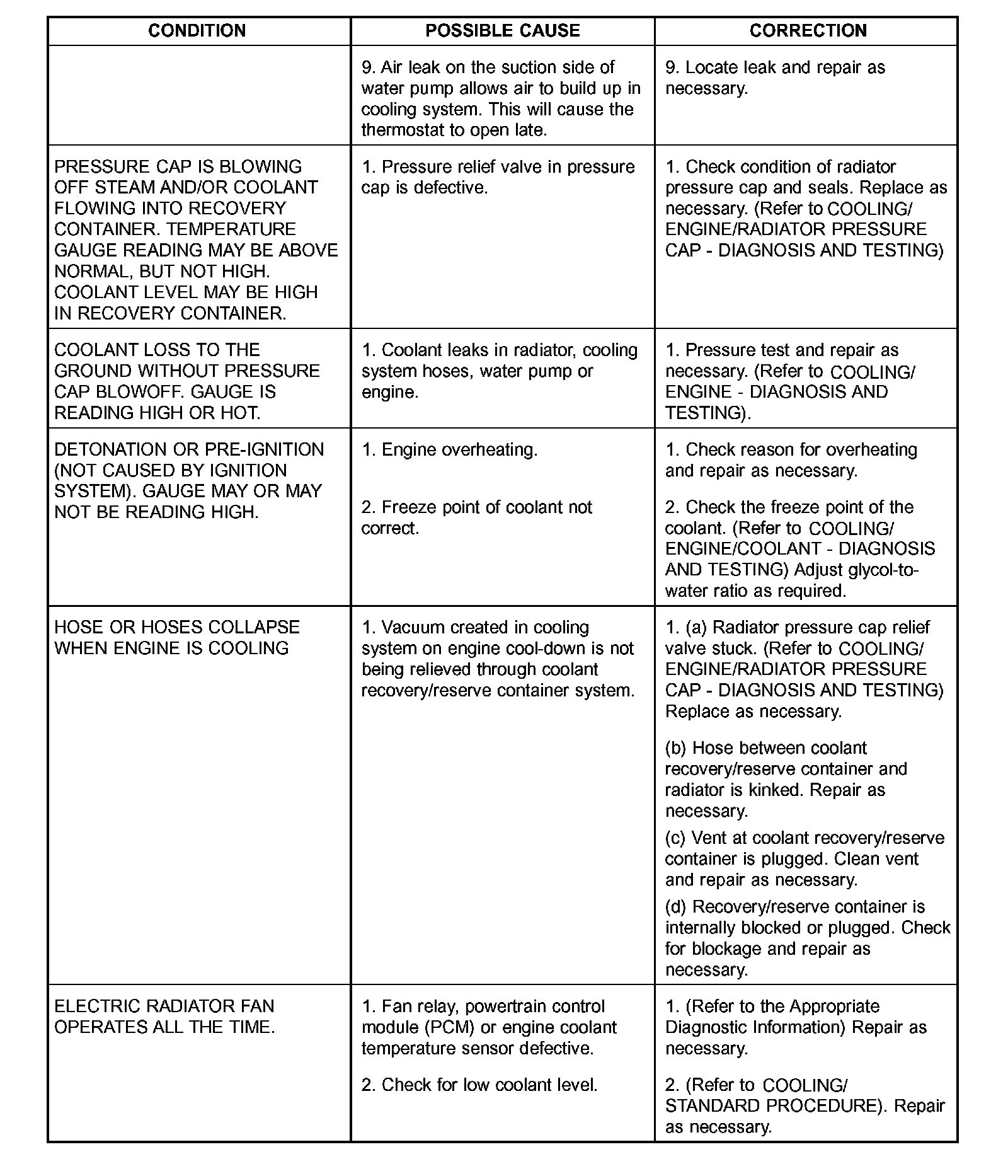

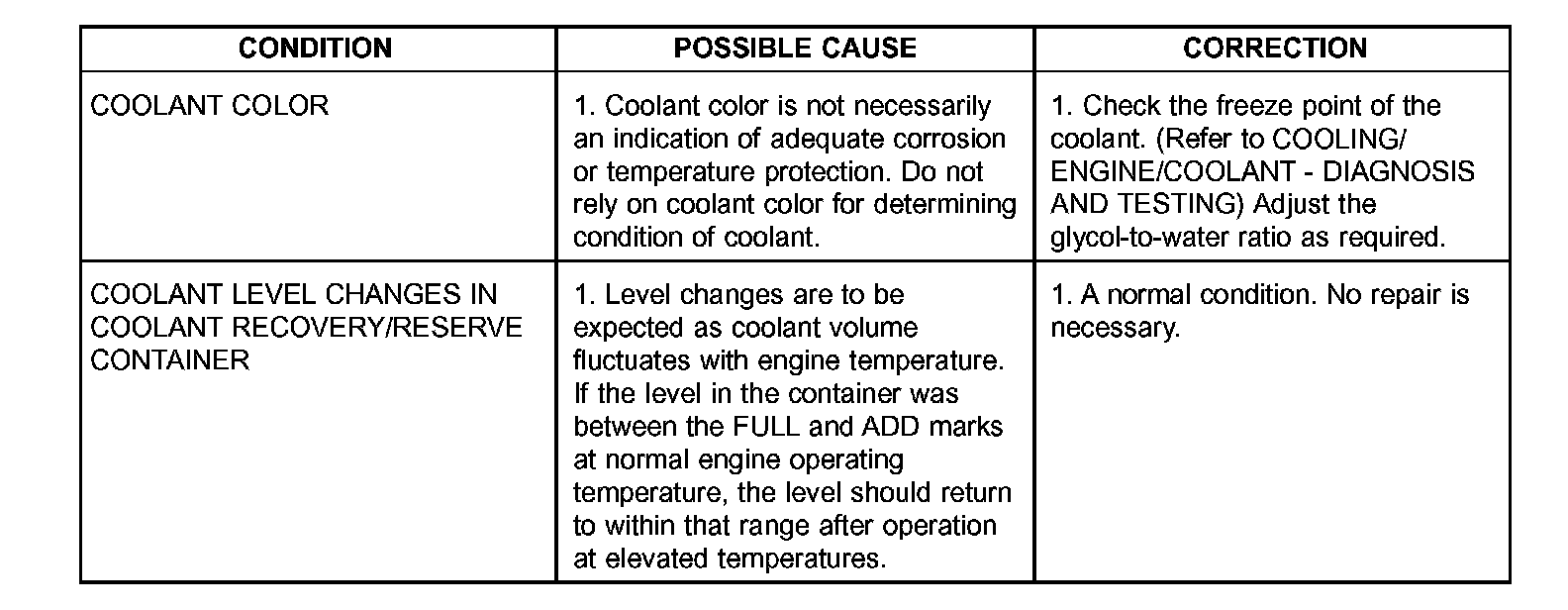

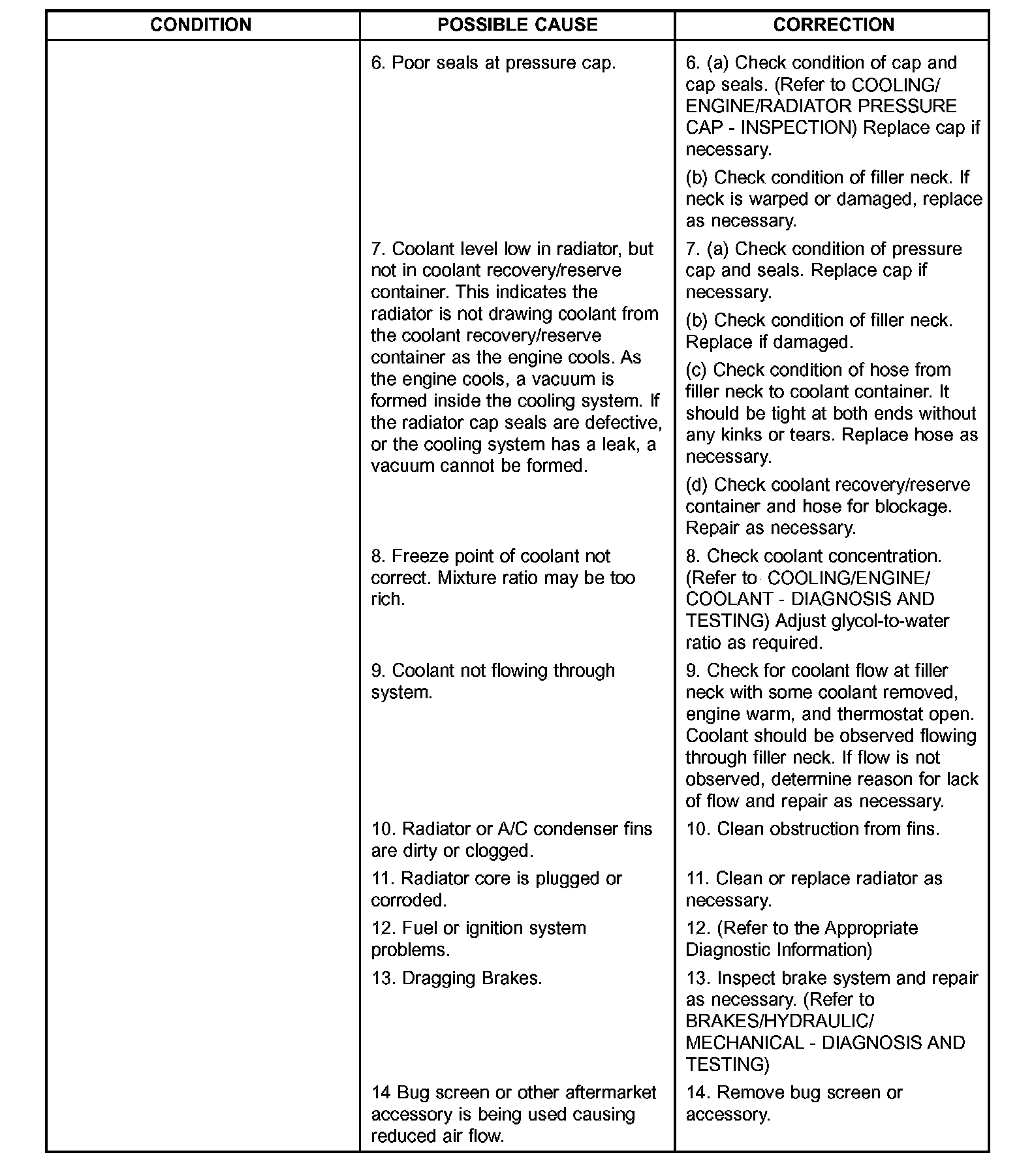

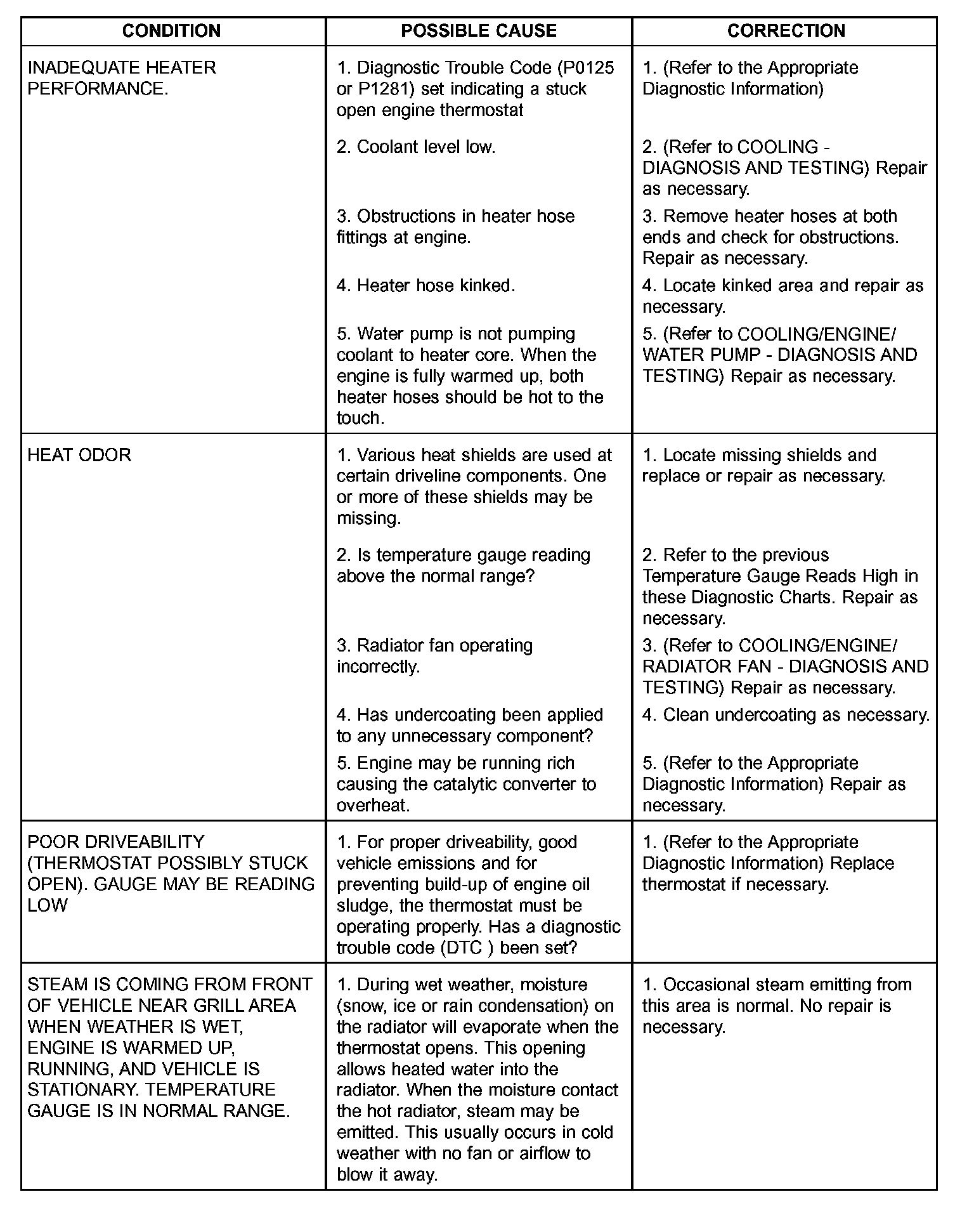

DIAGNOSIS AND TESTING - COOLING SYSTEM DIAGNOSIS























ENGINE - 2.0L SOHC
