Radiator Drain Plug: Service and Repair

RADIATOR DRAINCOCK

REMOVAL
1. Drain the cooling system.

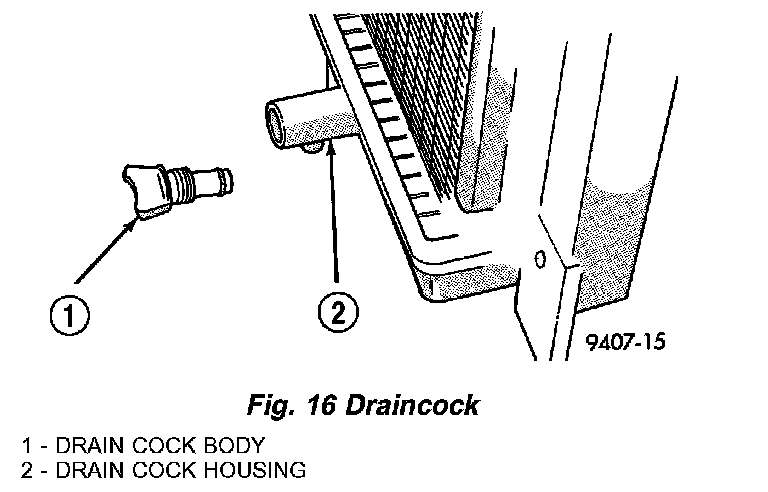

2. Turn the draincock stem counterclockwise to unscrew the stem. When the stem is unscrewed to the end of the threads, pull the stem (Fig. 16) from the radiator tank.

INSTALLATION
1. Push the draincock assembly body into the tank opening.
2. Tighten the draincock stem by turning clockwise to 2.0 - 2.7 Nm (18 - 25 inch lbs.).
3. Fill the cooling system.
