Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft

Axle Shaft

Halfshafts

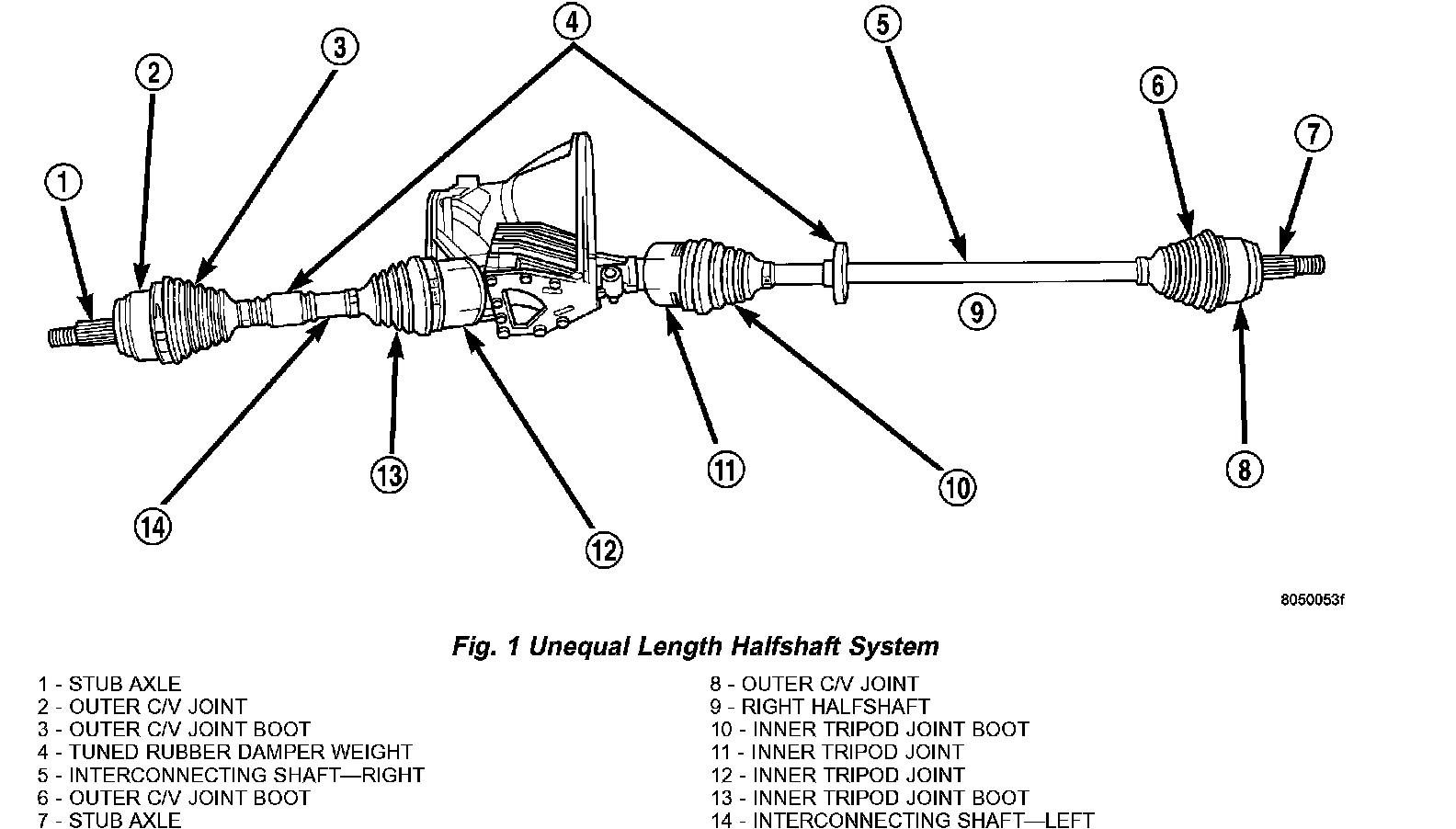

All Models Except 2.41L Turbo

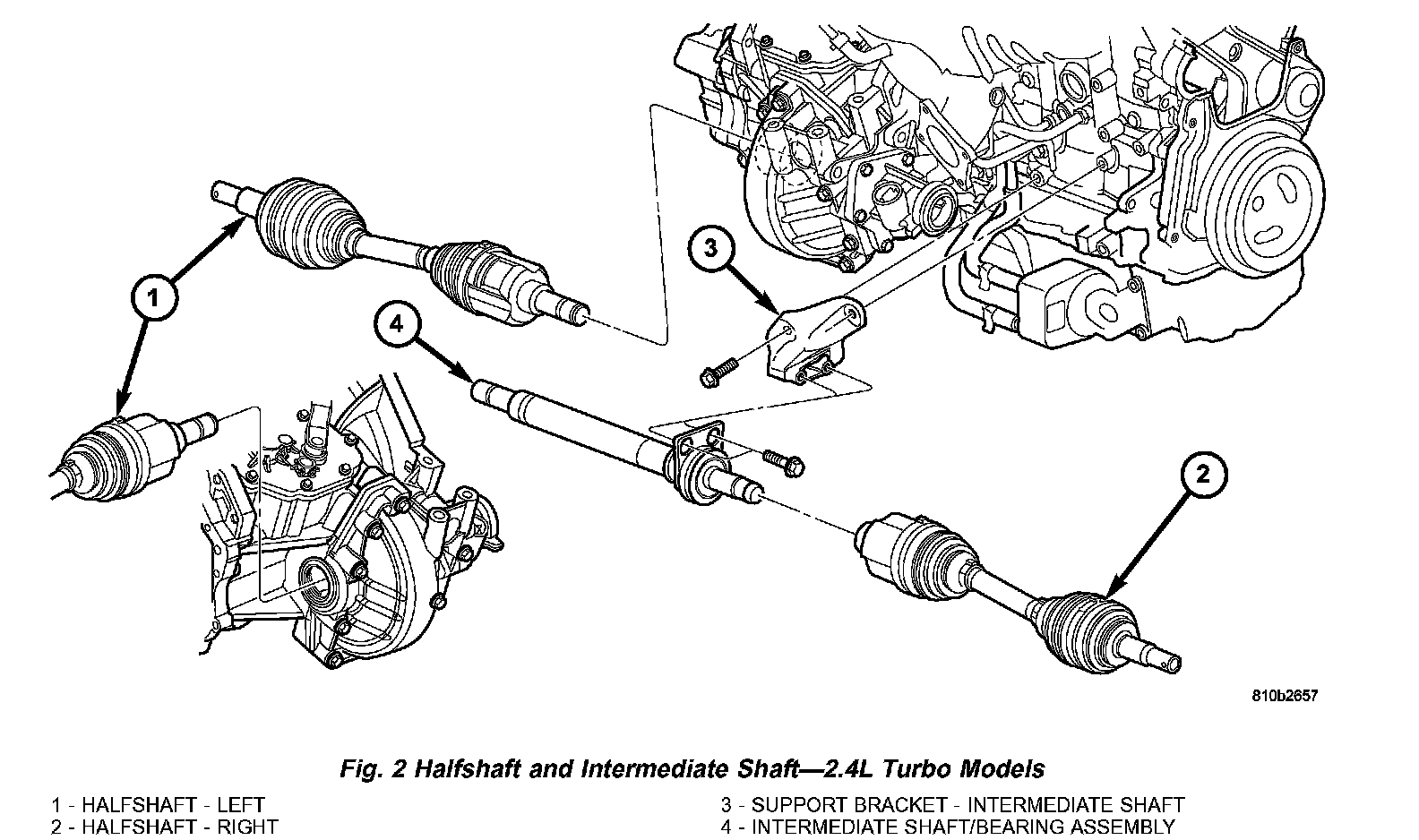

2.41L Turbo-Equipped Models
