Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-33 (Vehicle Speed Control System)

Group 8W-33 (Vehicle Speed Control System)

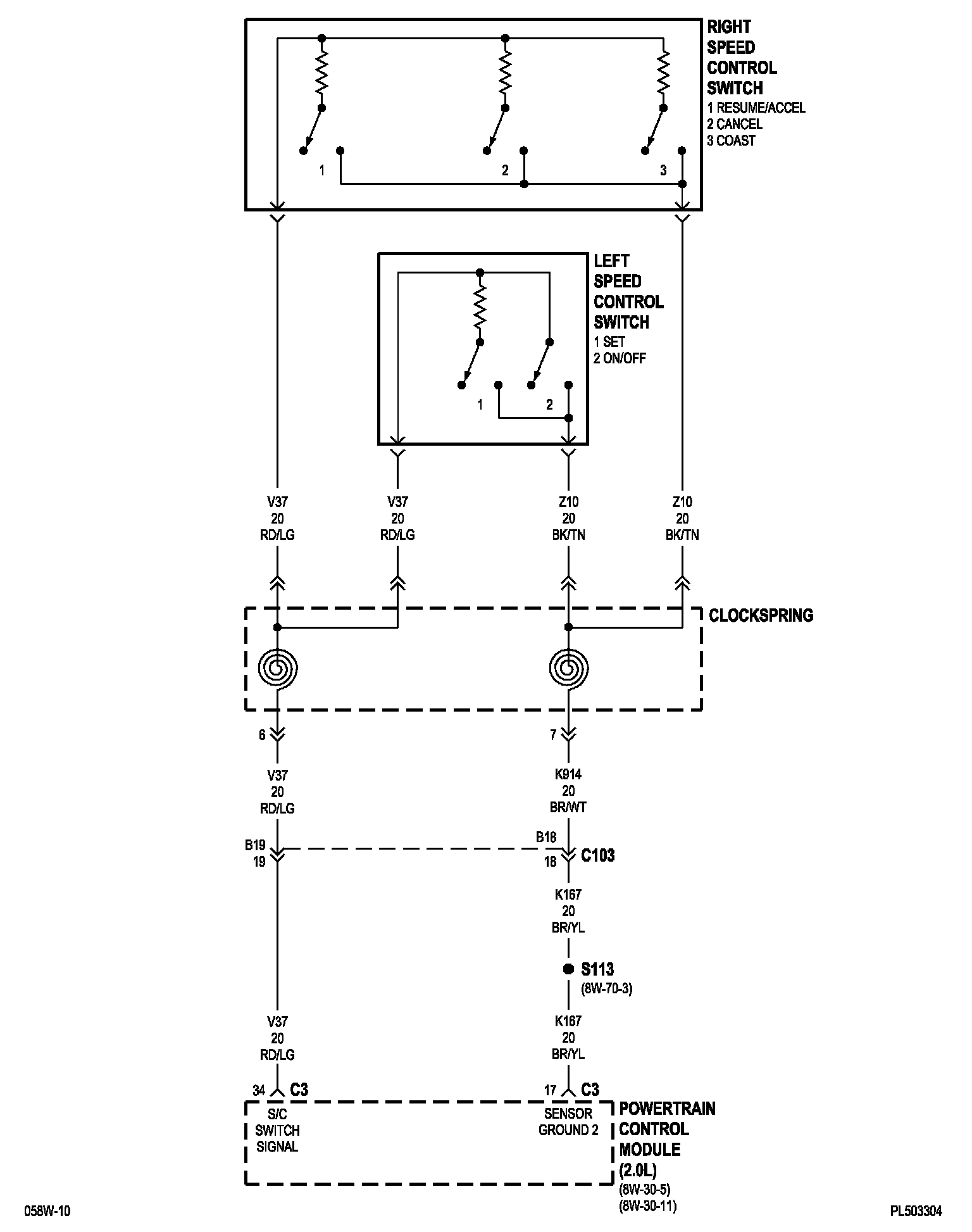

8w-33-2:

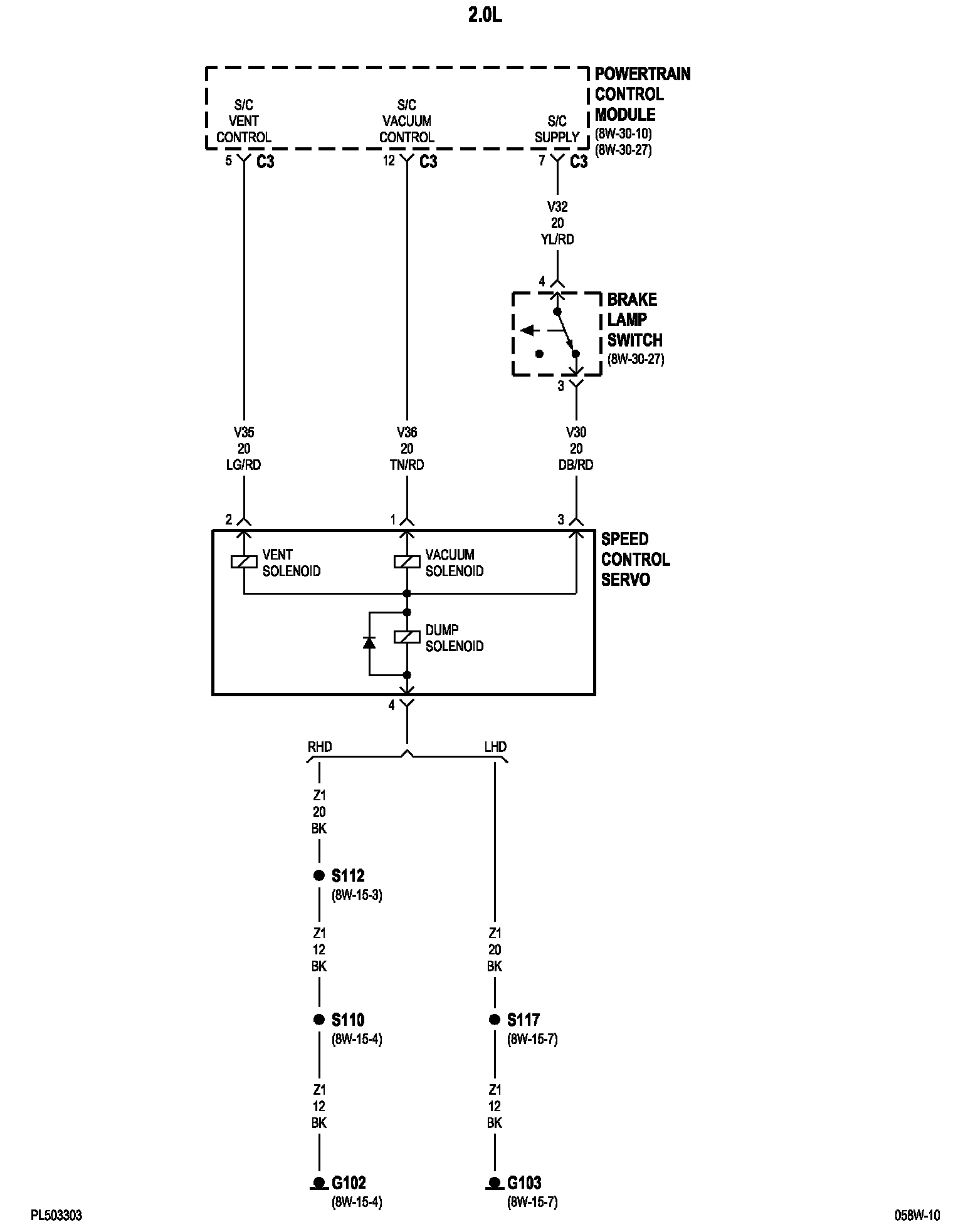

8w-33-3 (2.0L):

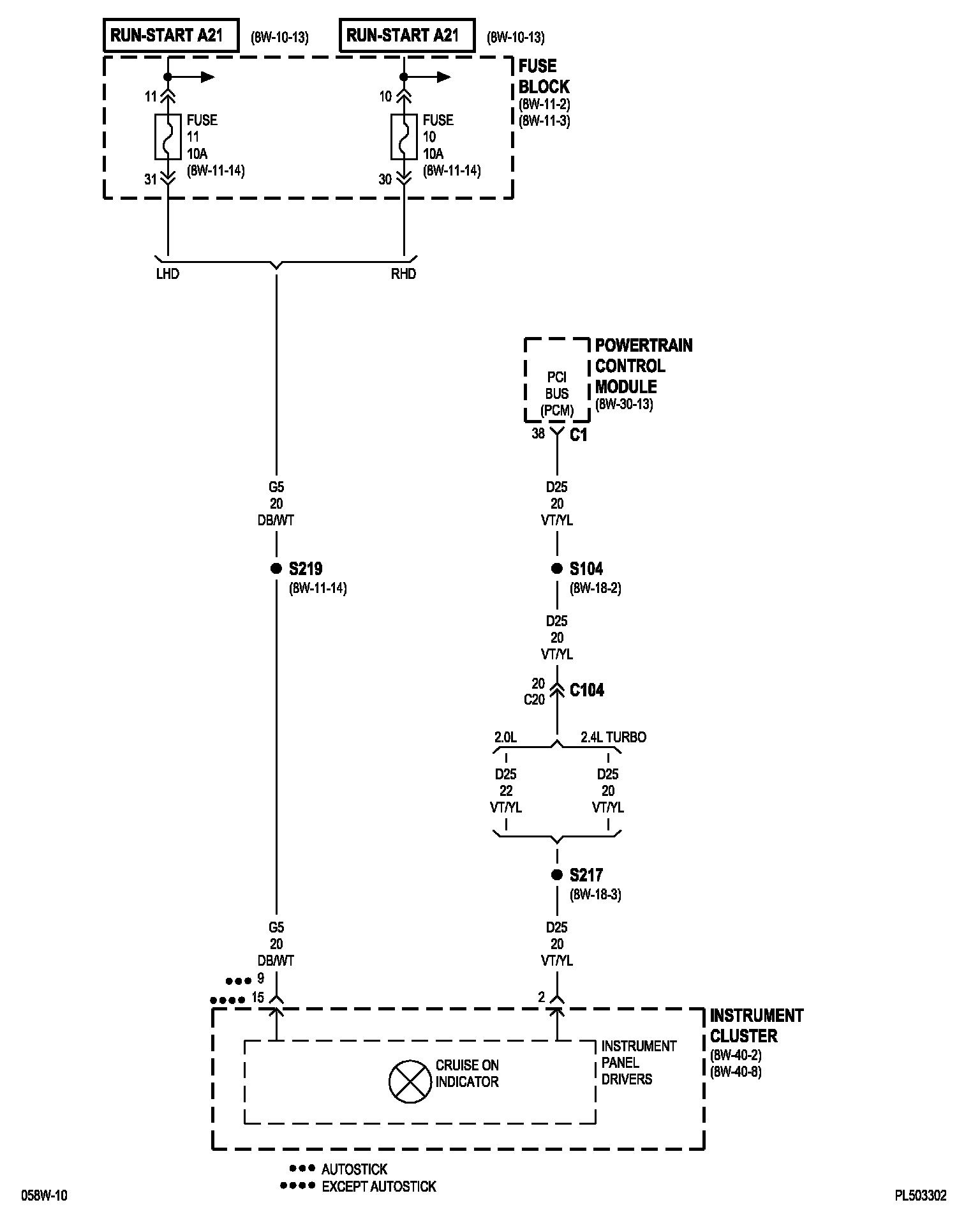

8w-33-4:
