Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>

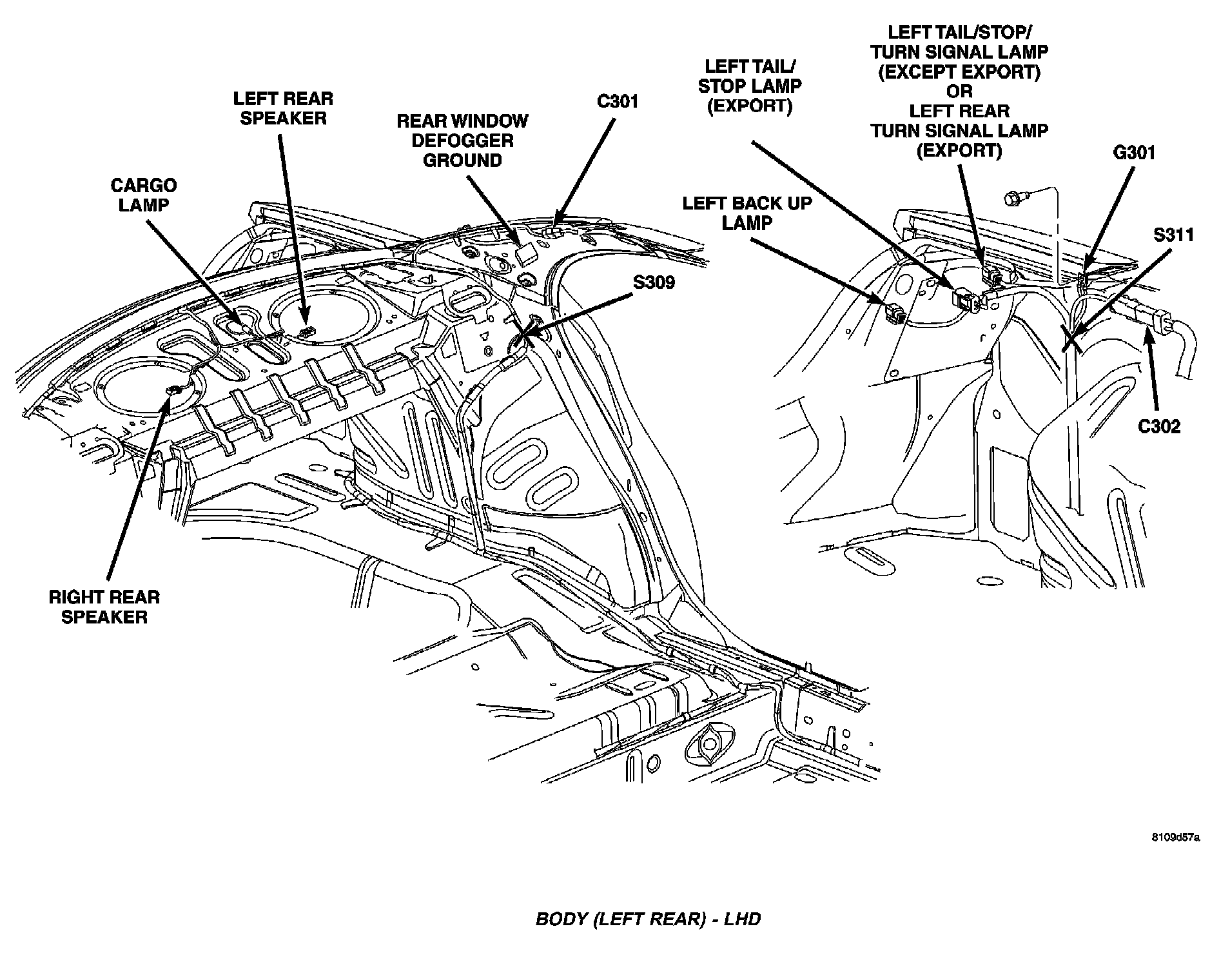

Figure 27
Figure 27
Body (Left Rear) - LHD:
