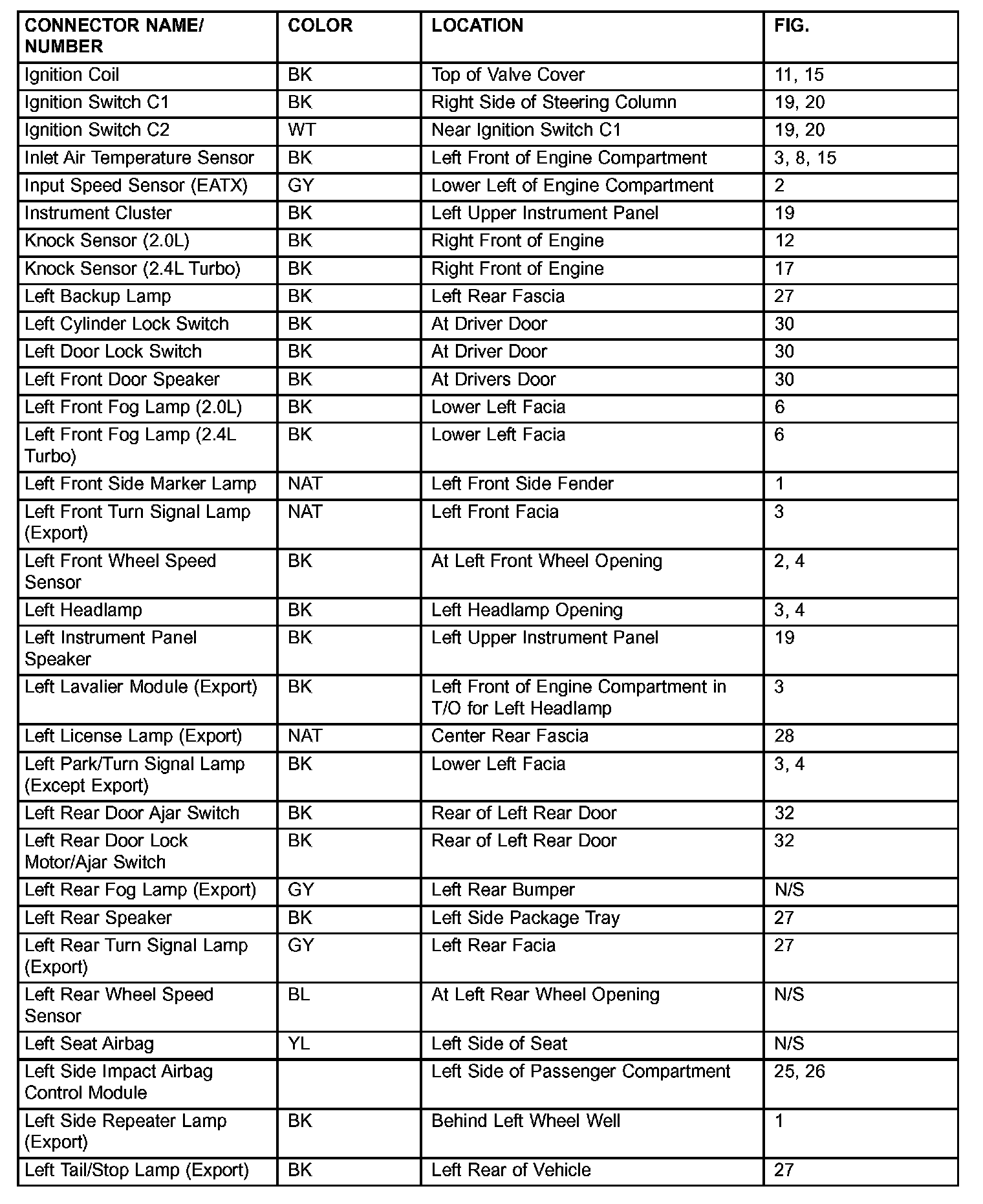

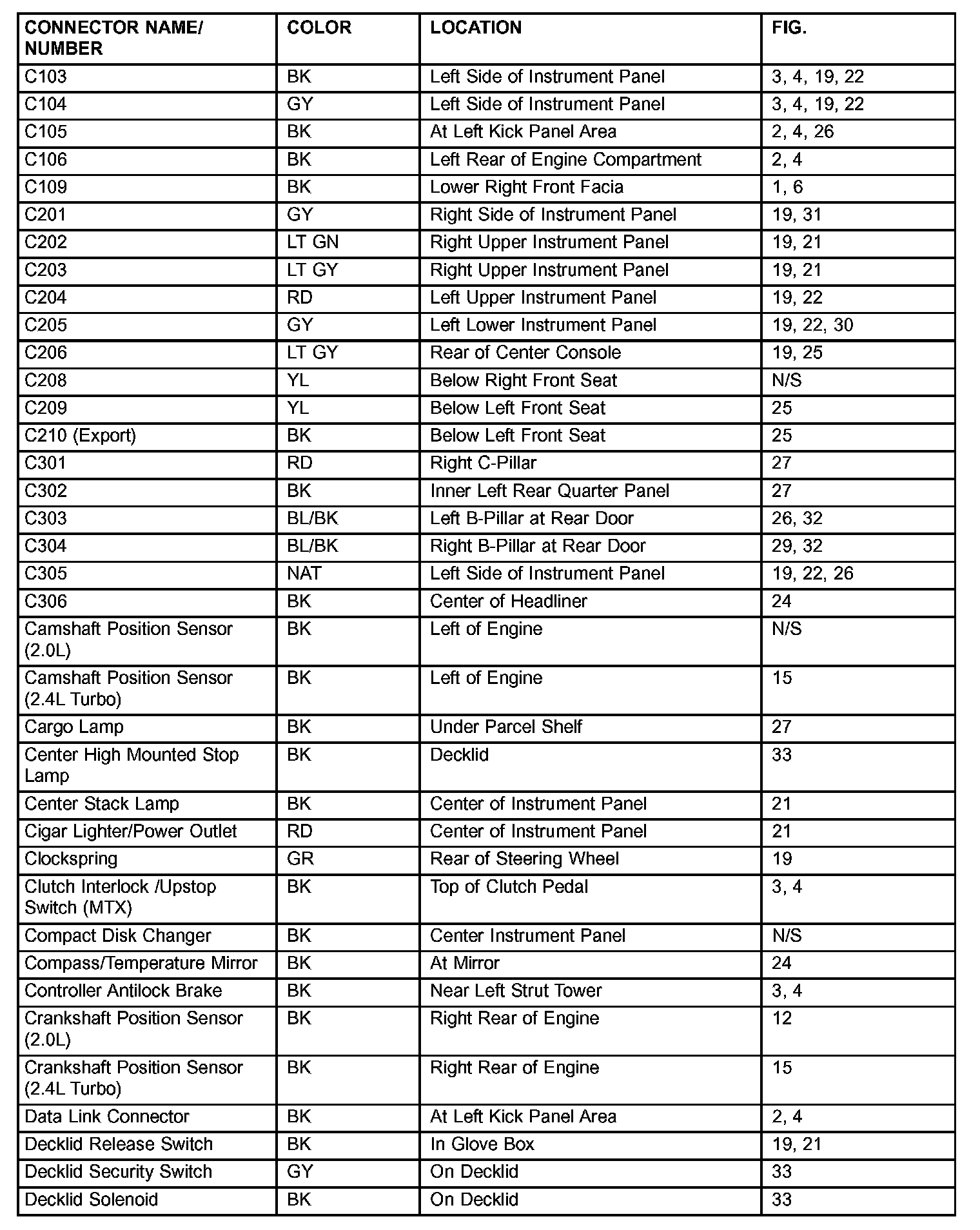

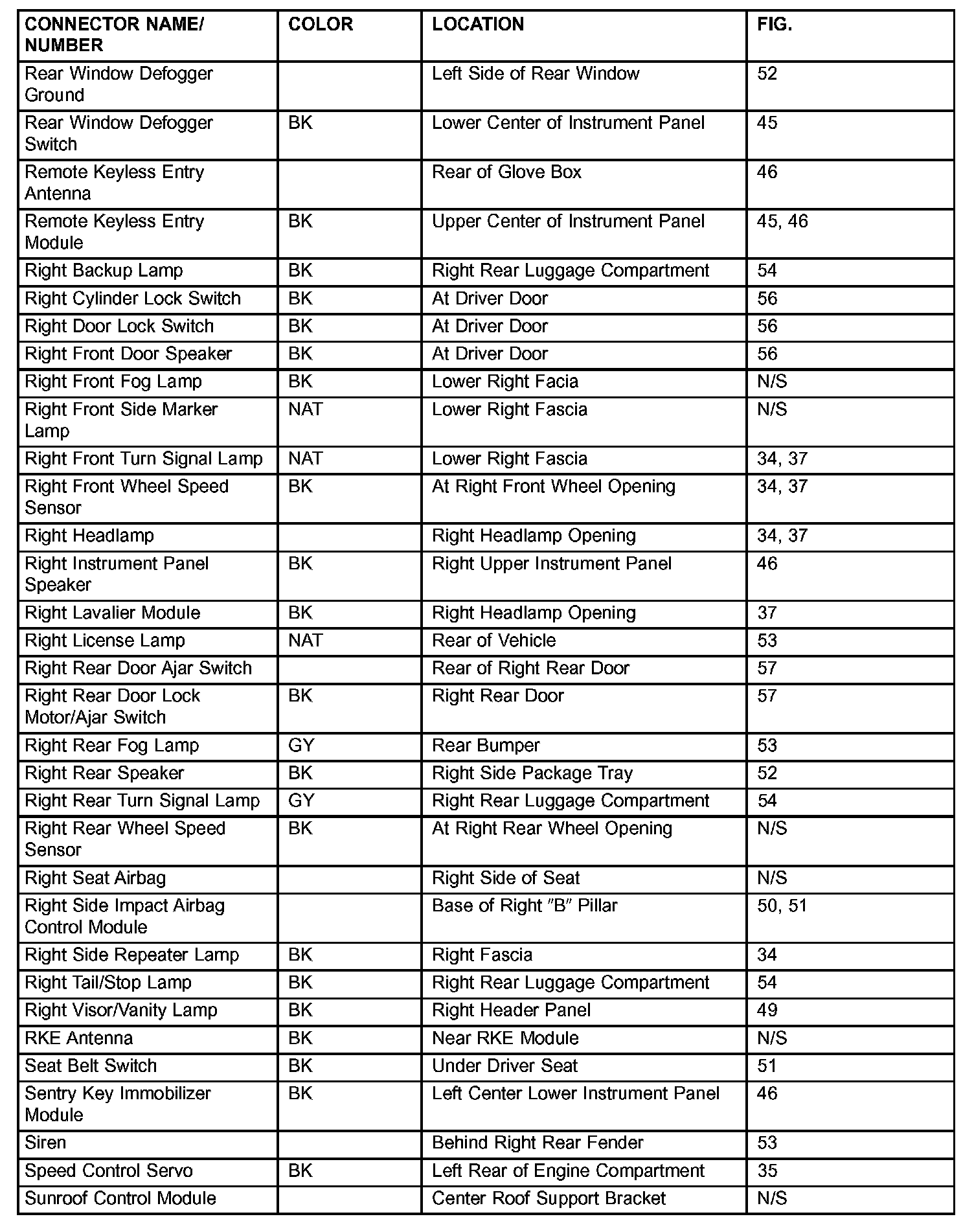

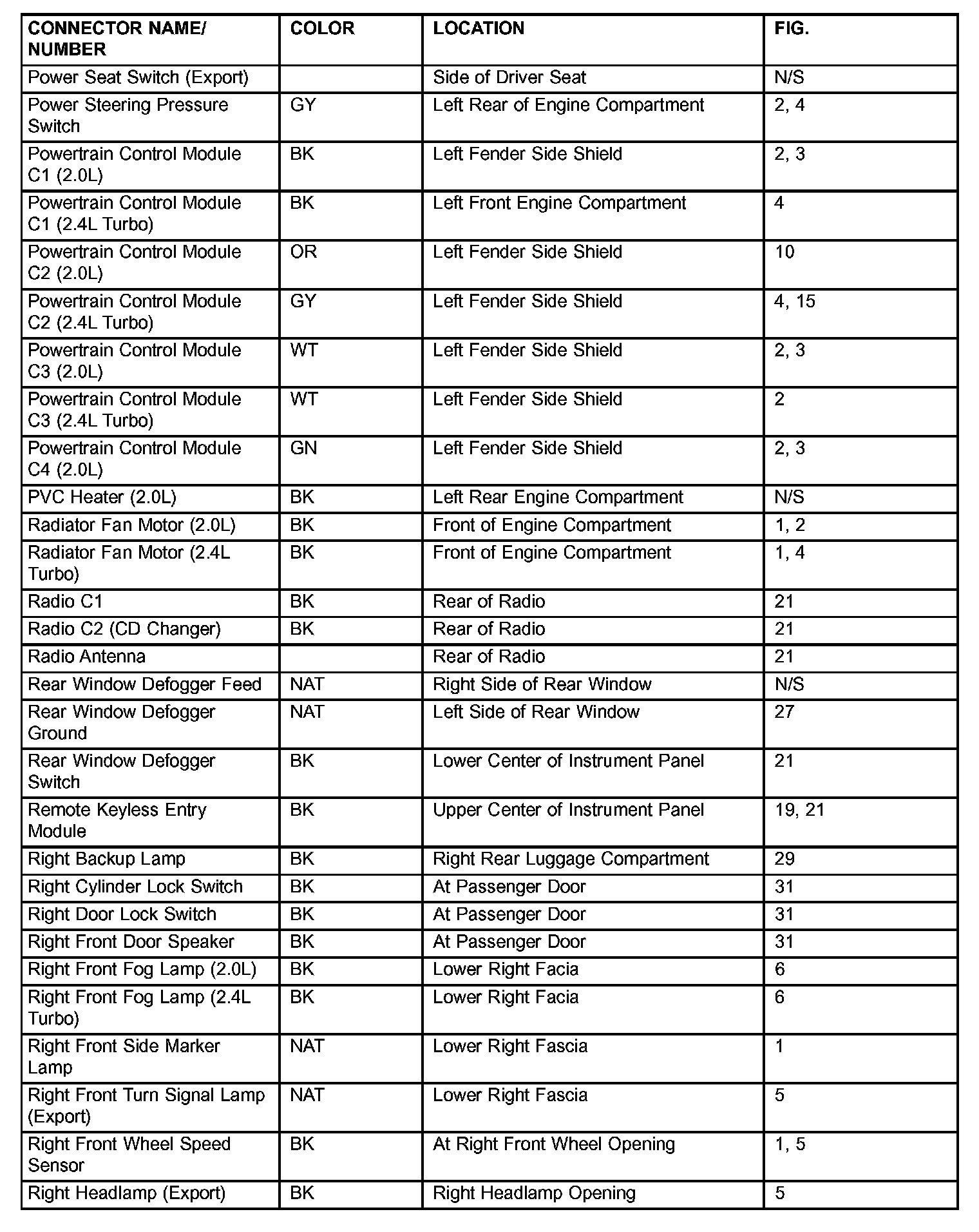

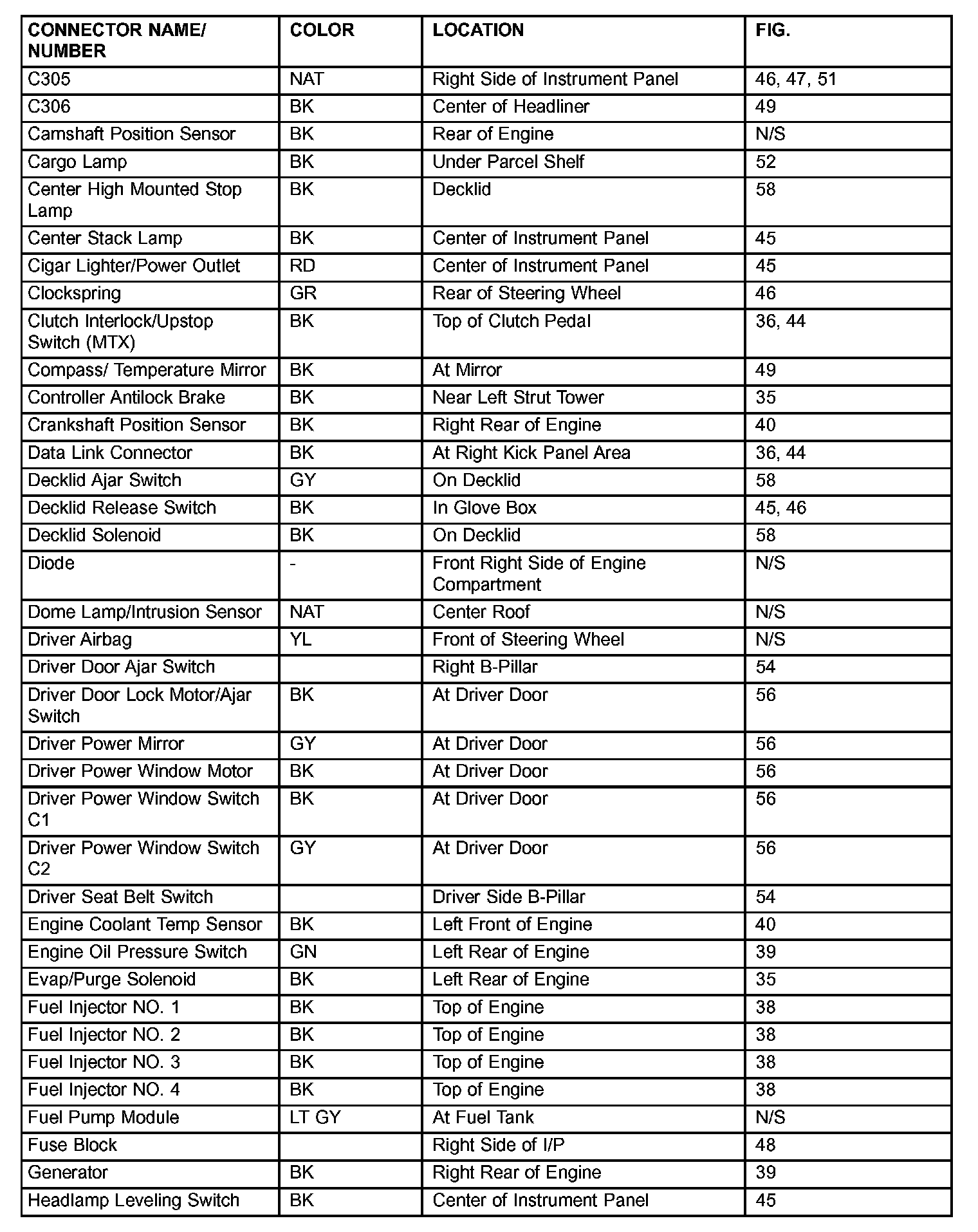

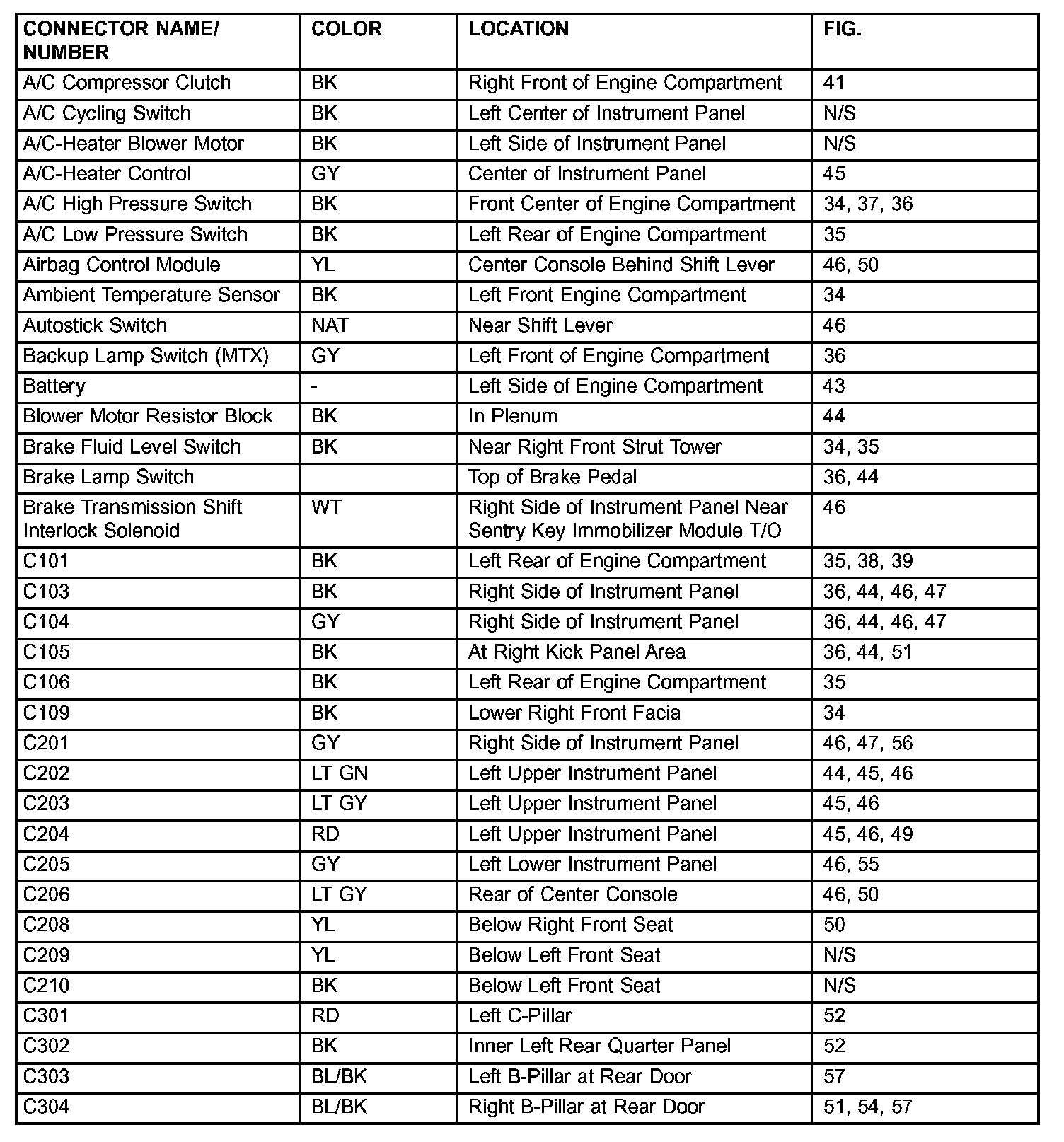

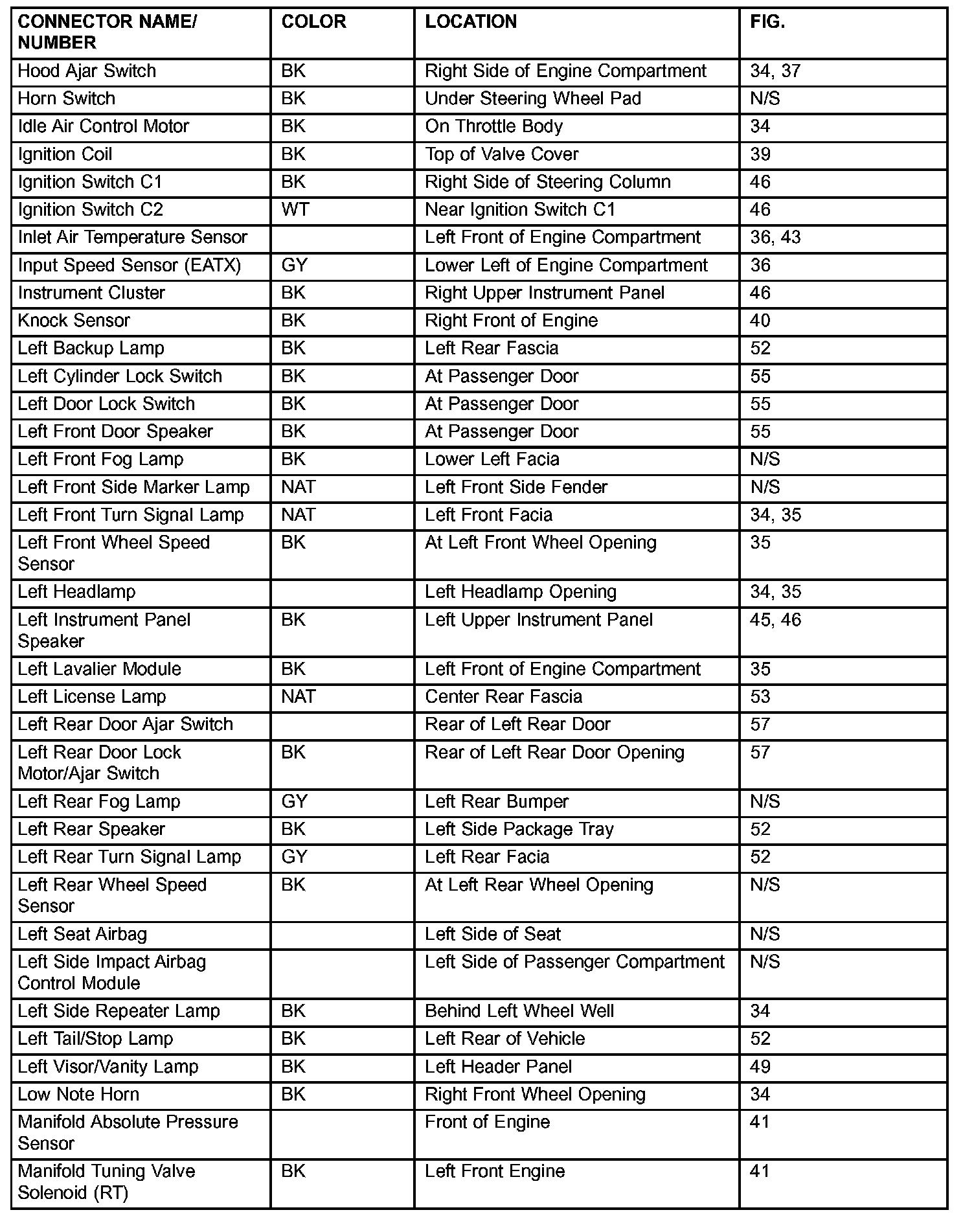

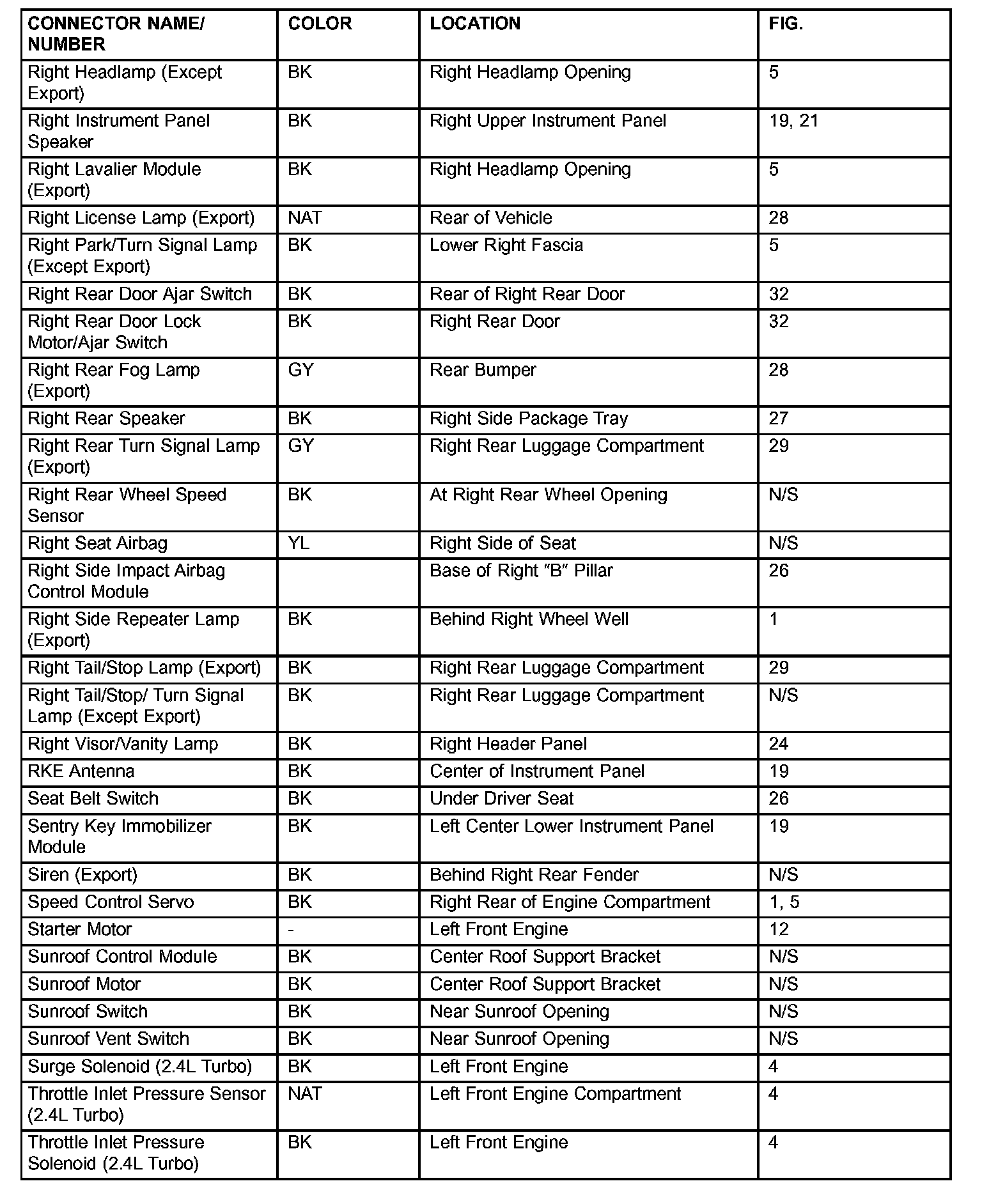

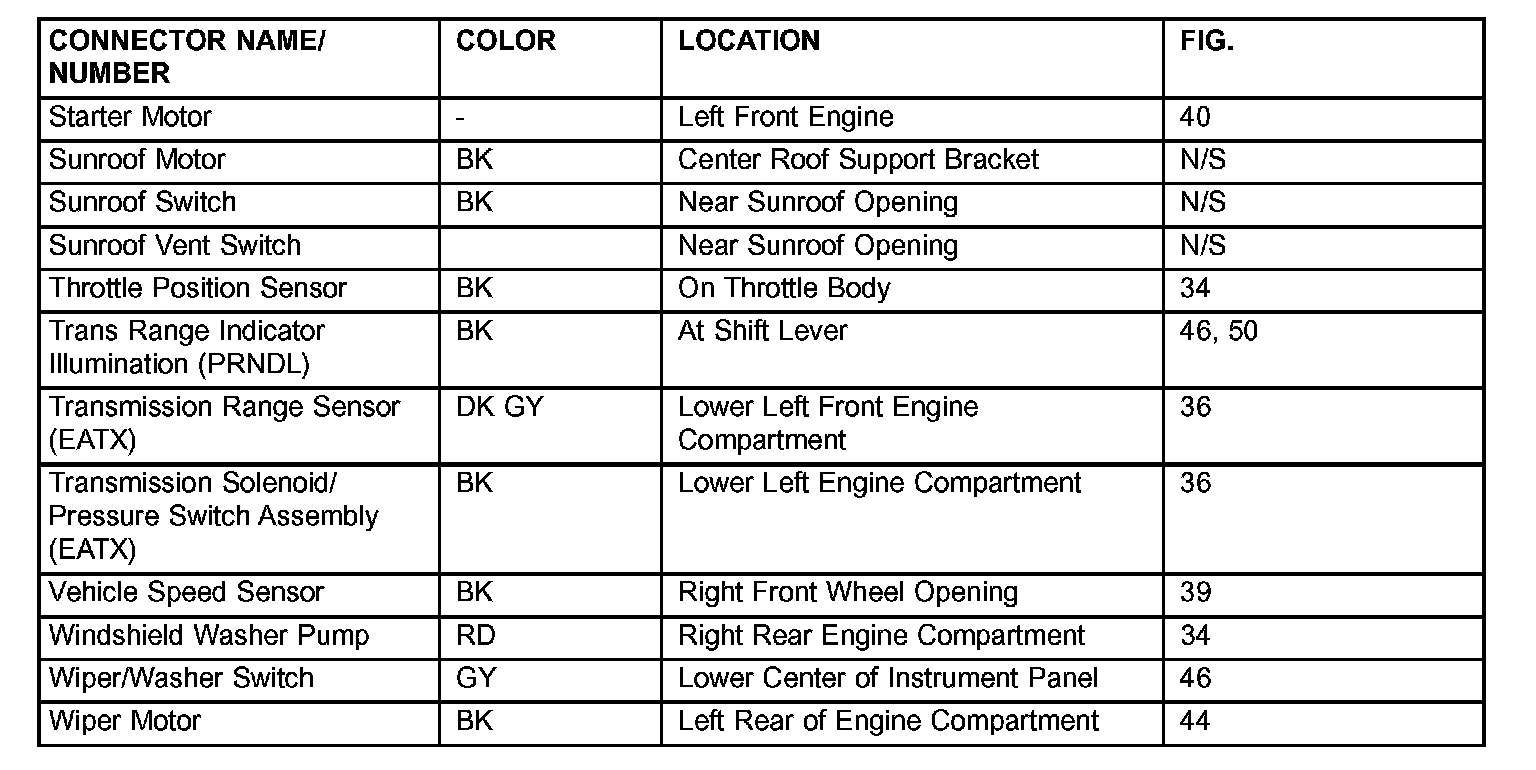

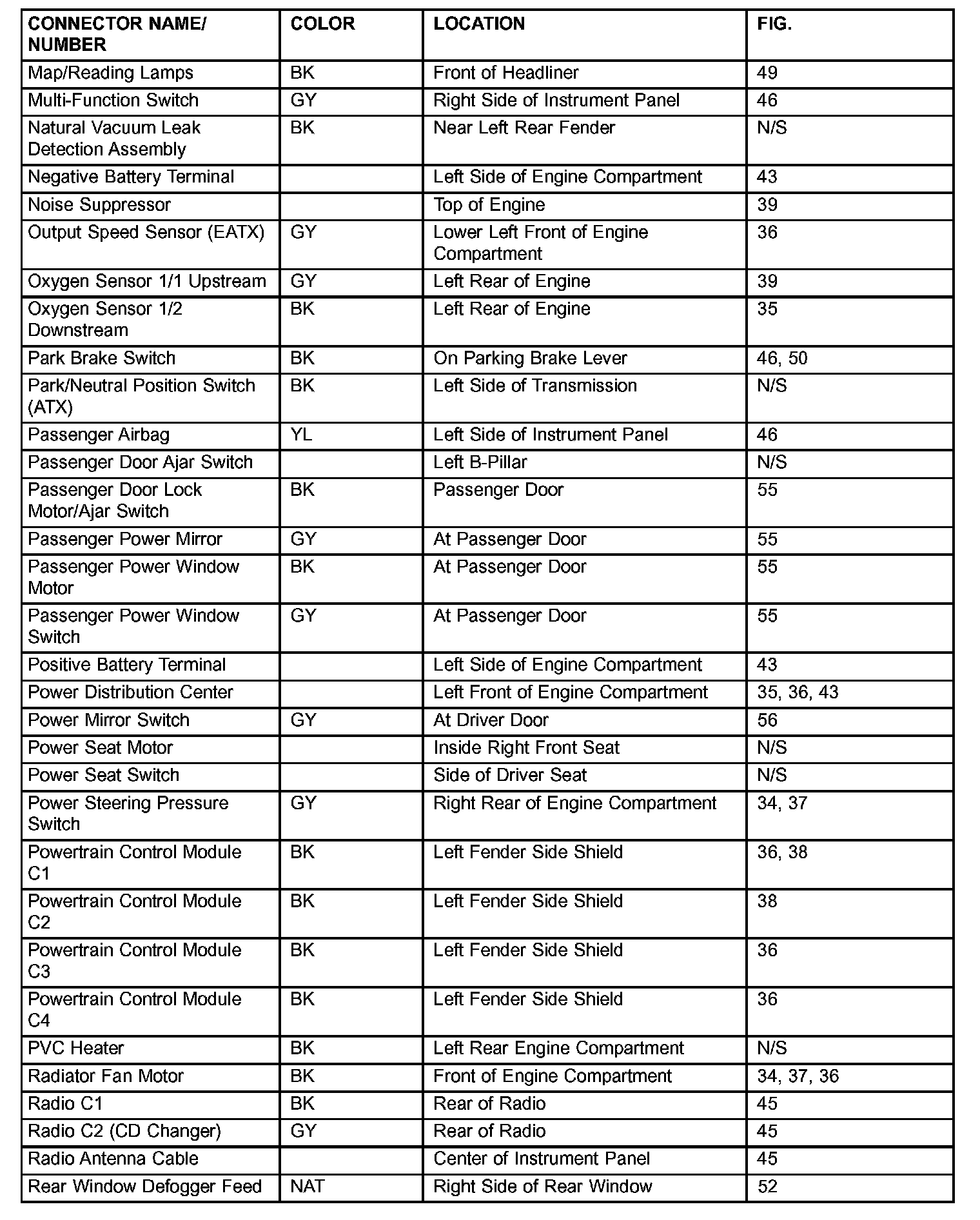

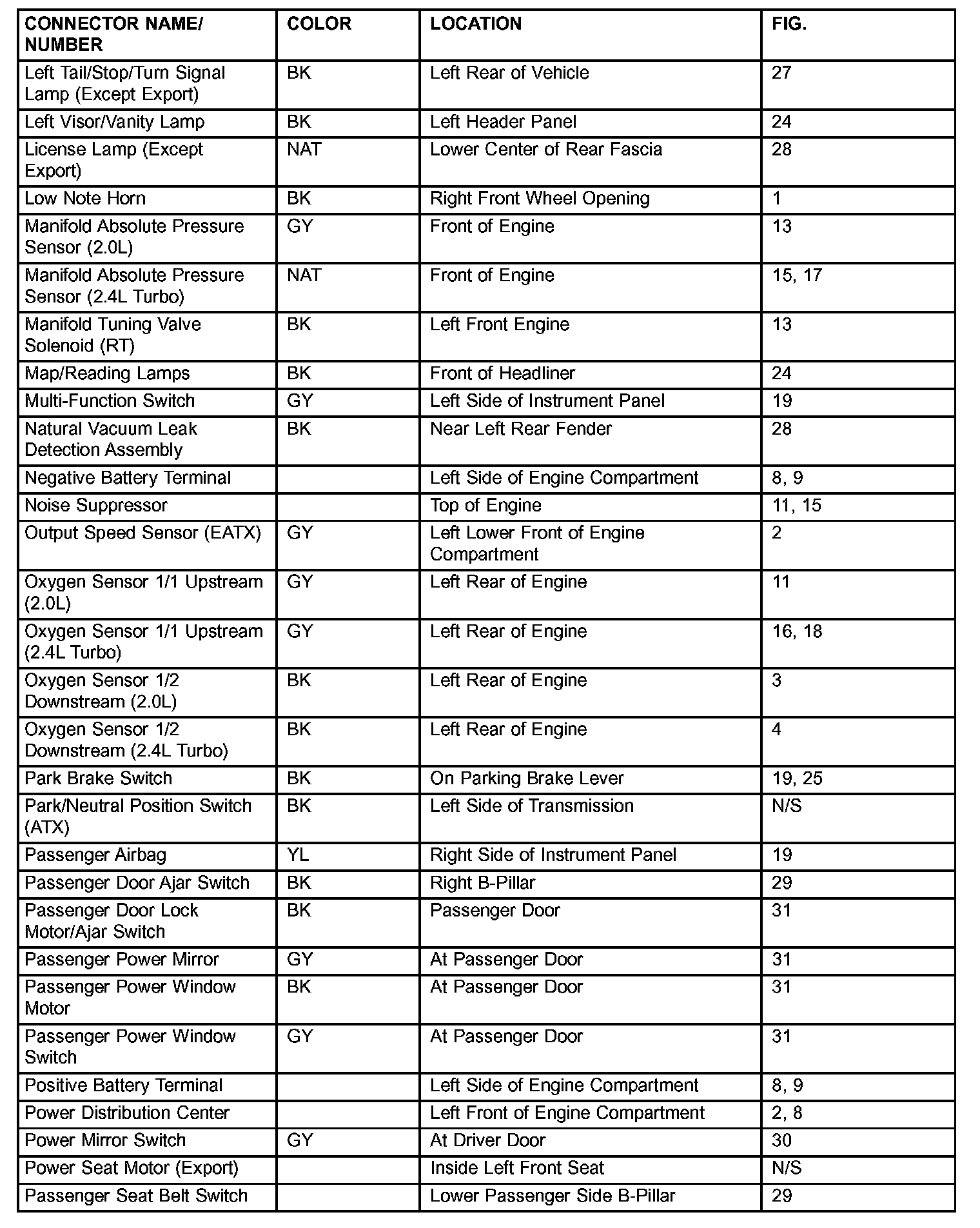

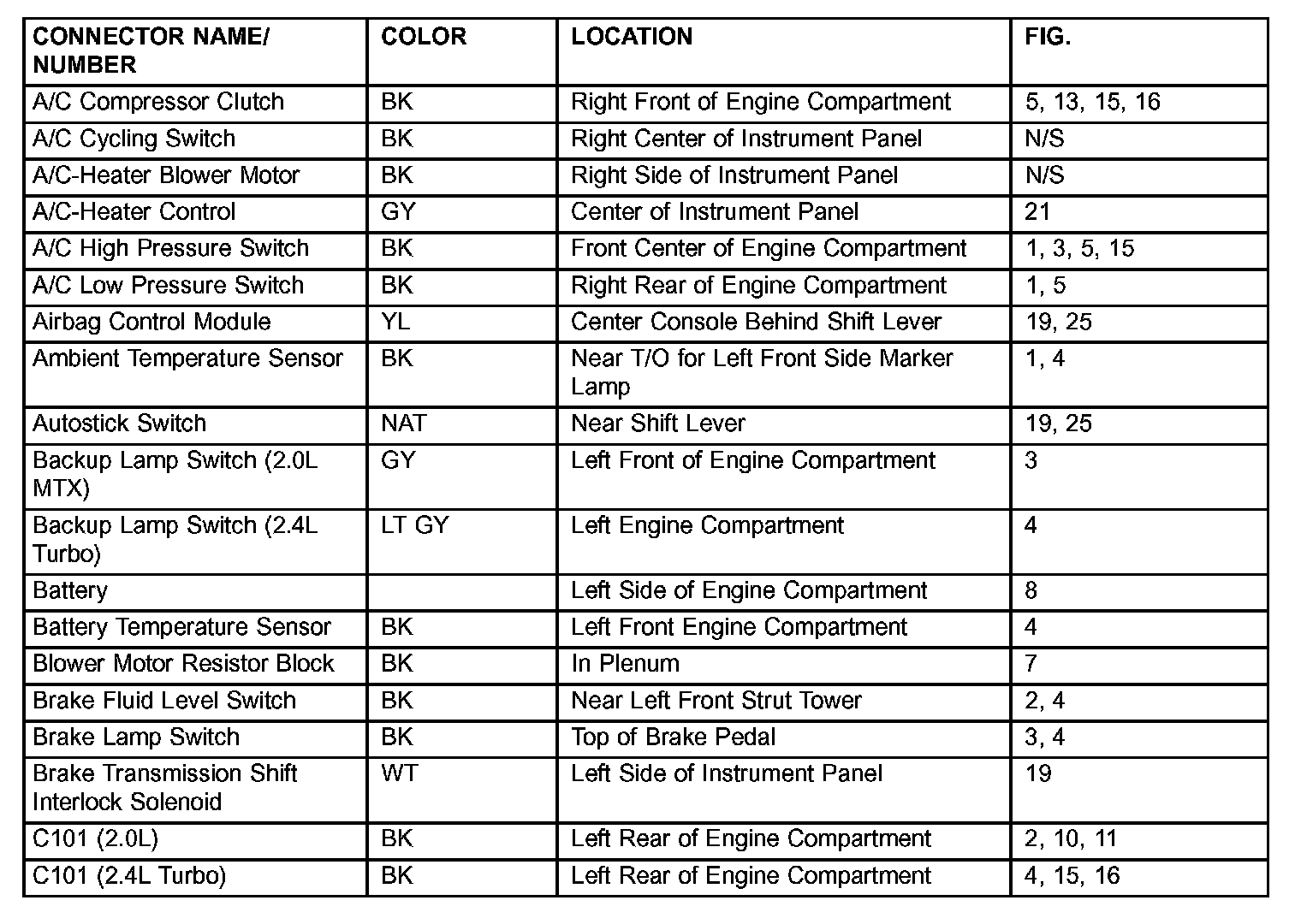

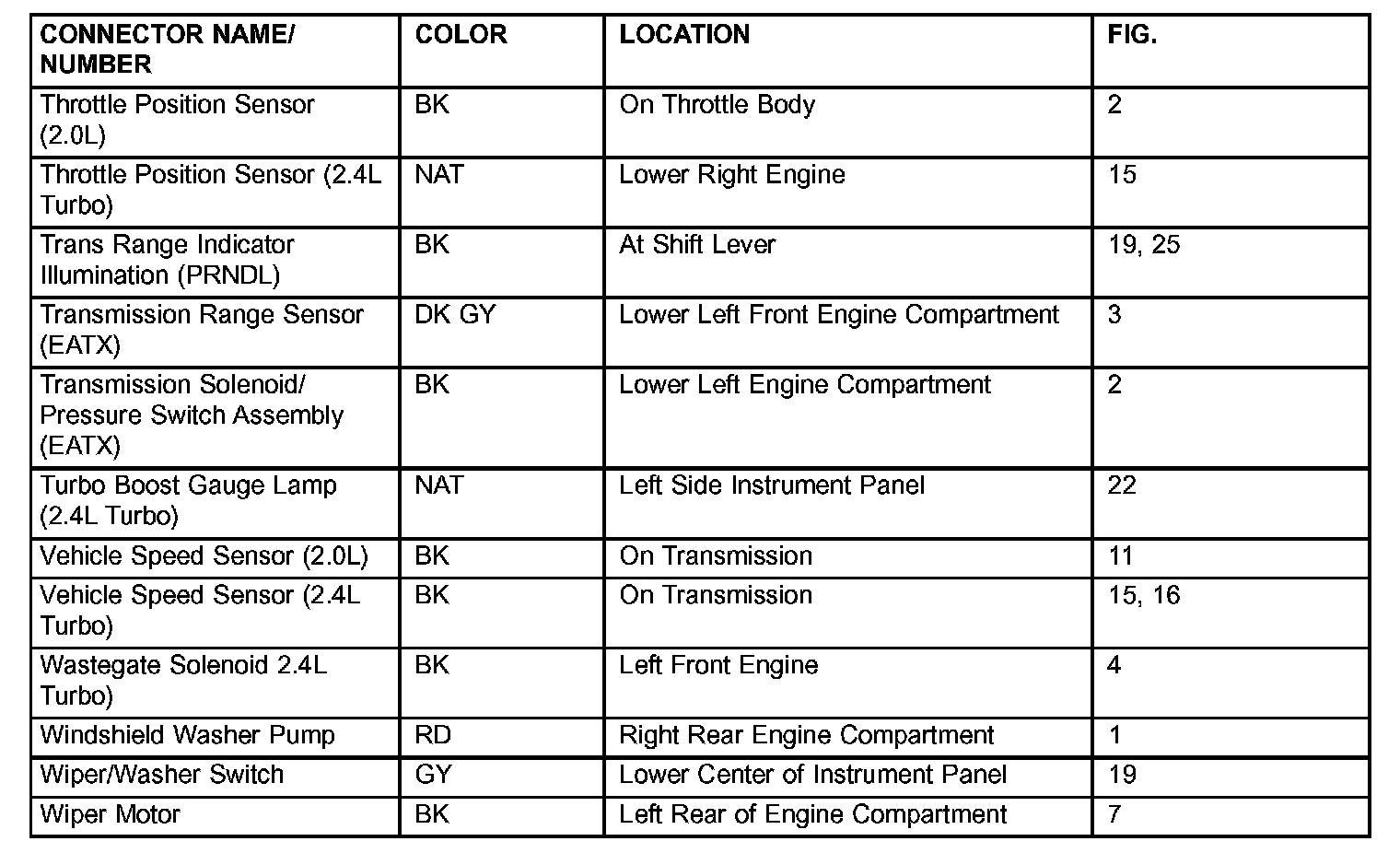

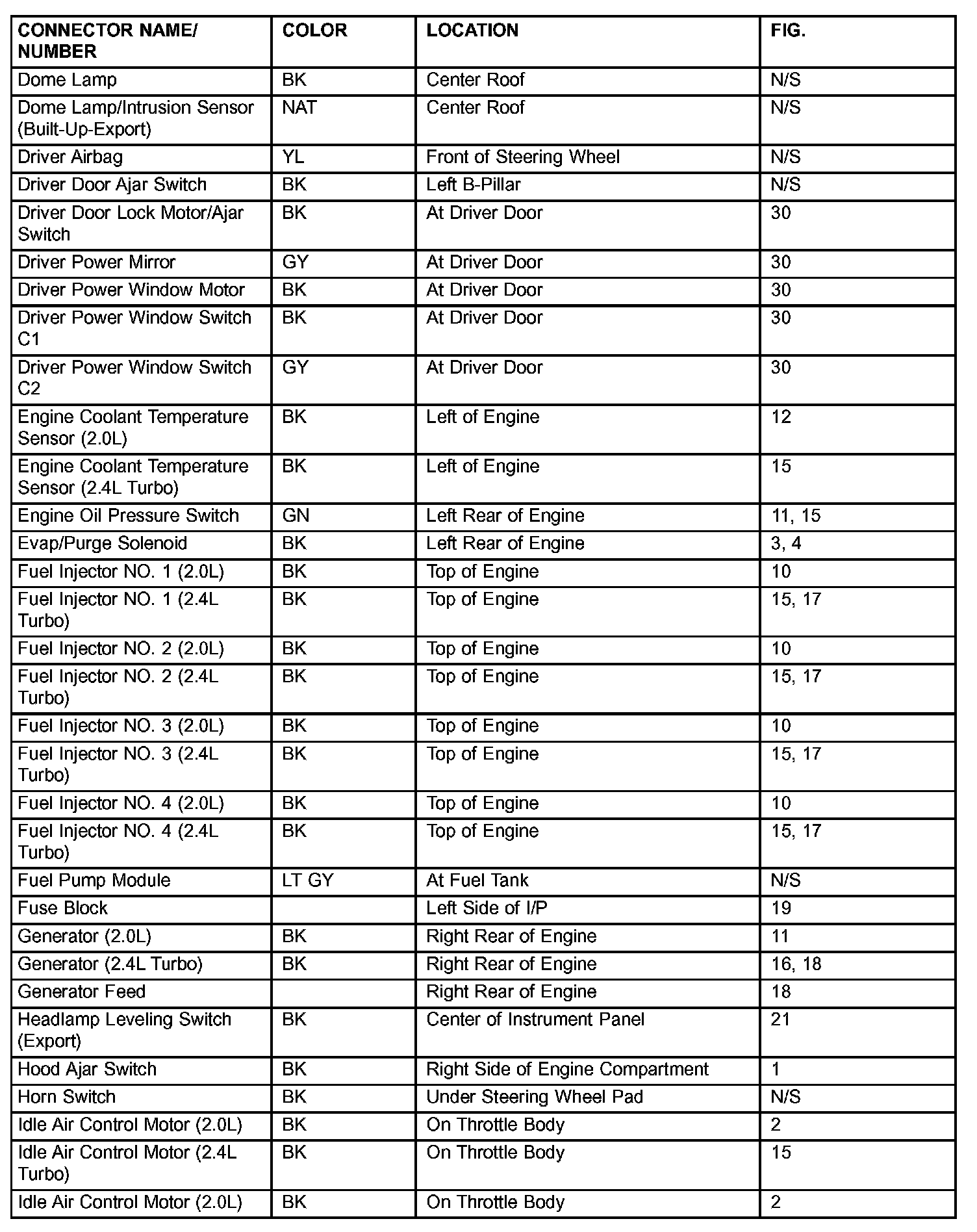

Connector Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

A/C - Left:

C103 - 0n:

Dome - On:

Ignition - Left:

Left - Lower:

Power - Right:

Right - Left:

Throttle - Left:

A/C - Right:

C305 - Center:

Hood - Left:

Map - Right:

Rear - Center:

Starter - Left:
