Speaker
Speaker

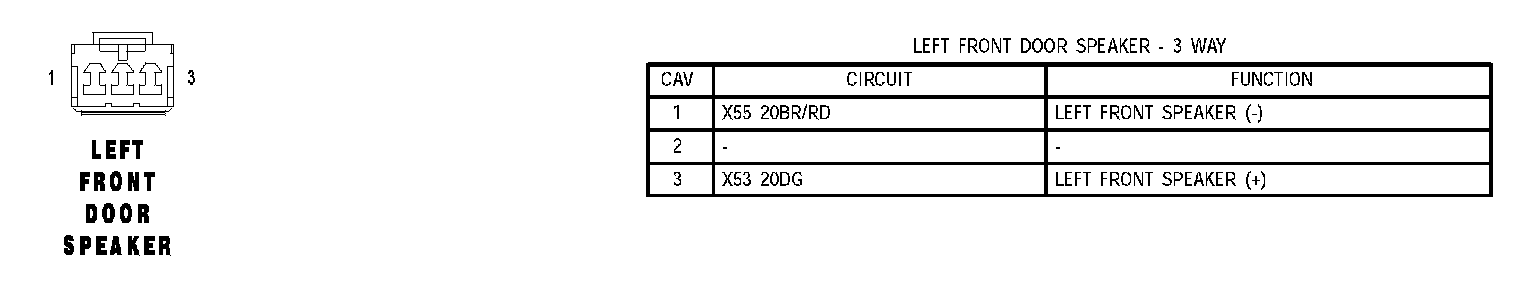

Left Front Door Speaker:

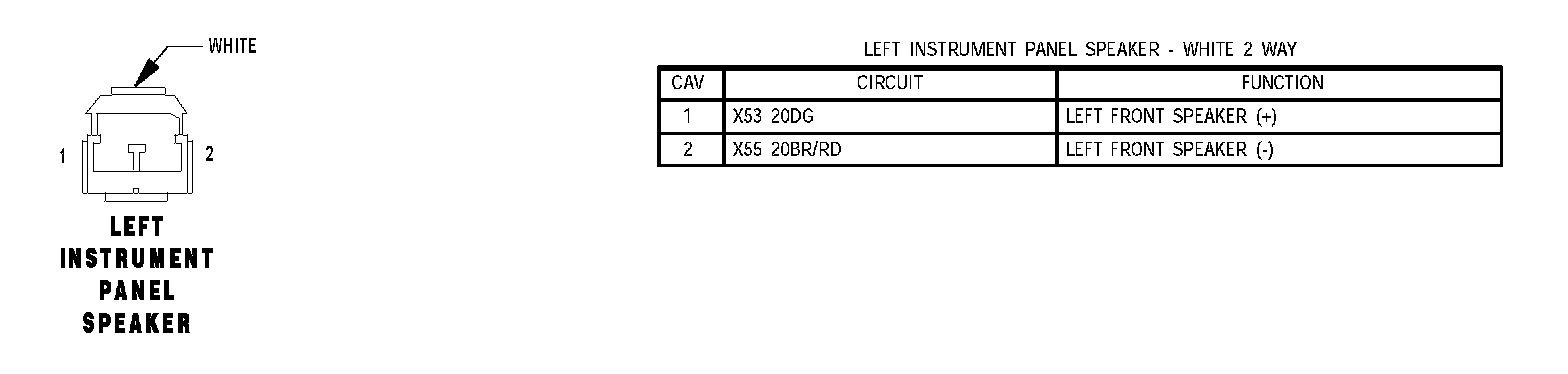

Left Instrument Panel Speaker:
Left Park Speaker:

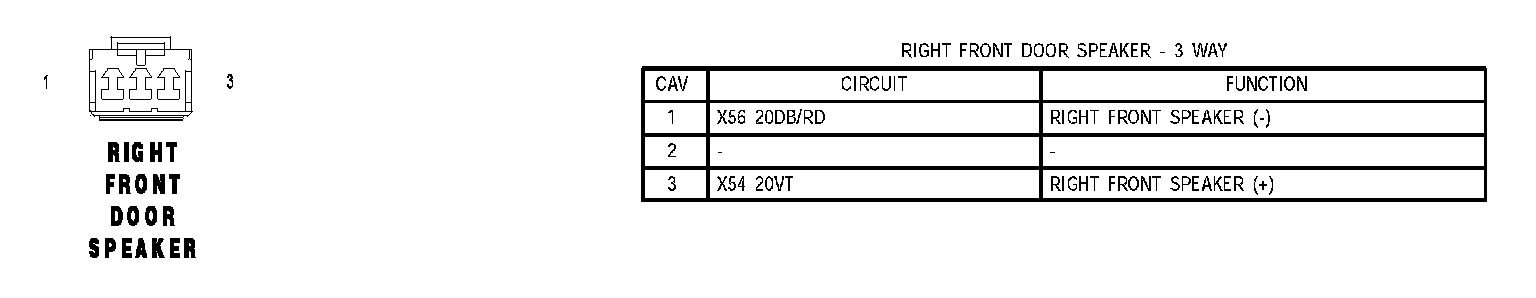

Right Front Door Speaker:

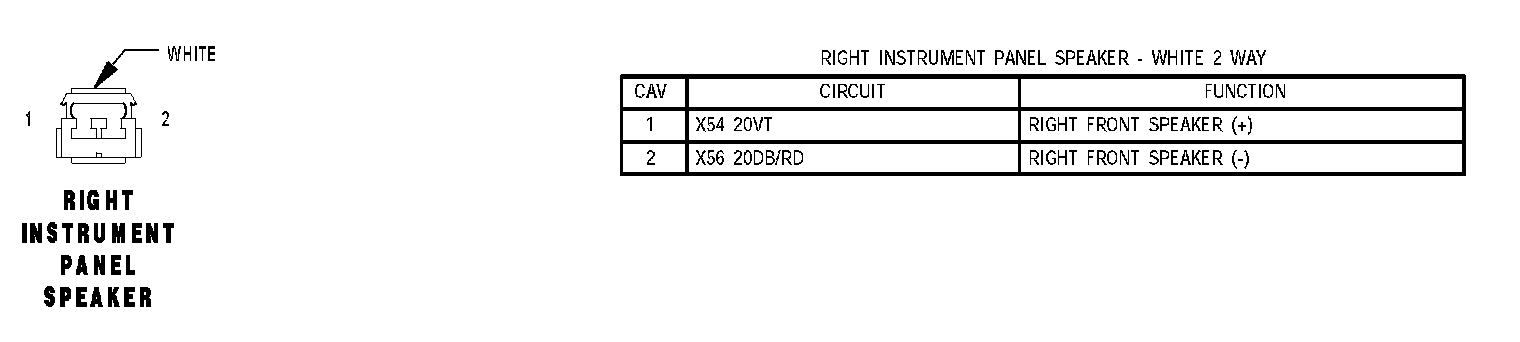

Right Instrument Panel Speaker:

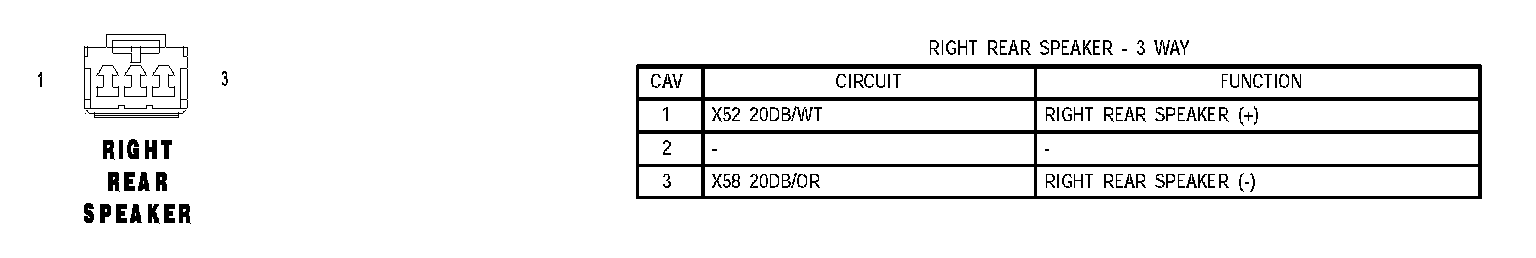

Right Rear Speaker:
Subwoofer:
