Power Door Lock Switch

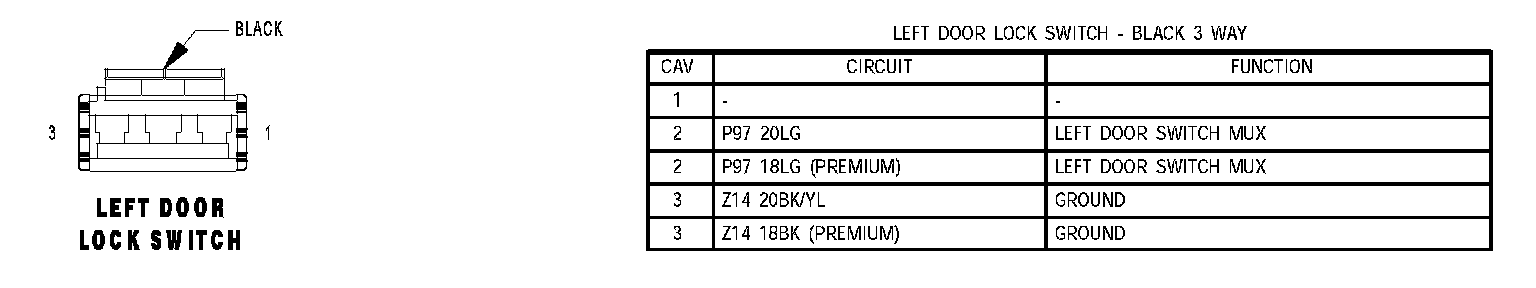

Left Door Lock Switch:



Left Rear Door Lock Motor/Ajar Switch:



Passenger Door Lock Motor/Ajar Switch:

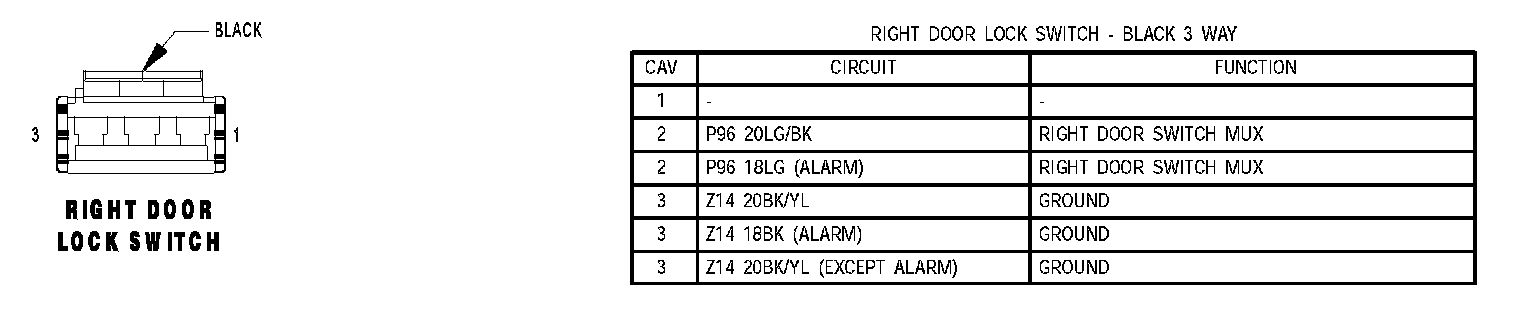

Right Door Lock Switch:



Right Rear Door Lock Motor/Ajar Switch:
