Diagrams
>>
Connector Views
>>
Lock Cylinder Switch
Lock Cylinder Switch

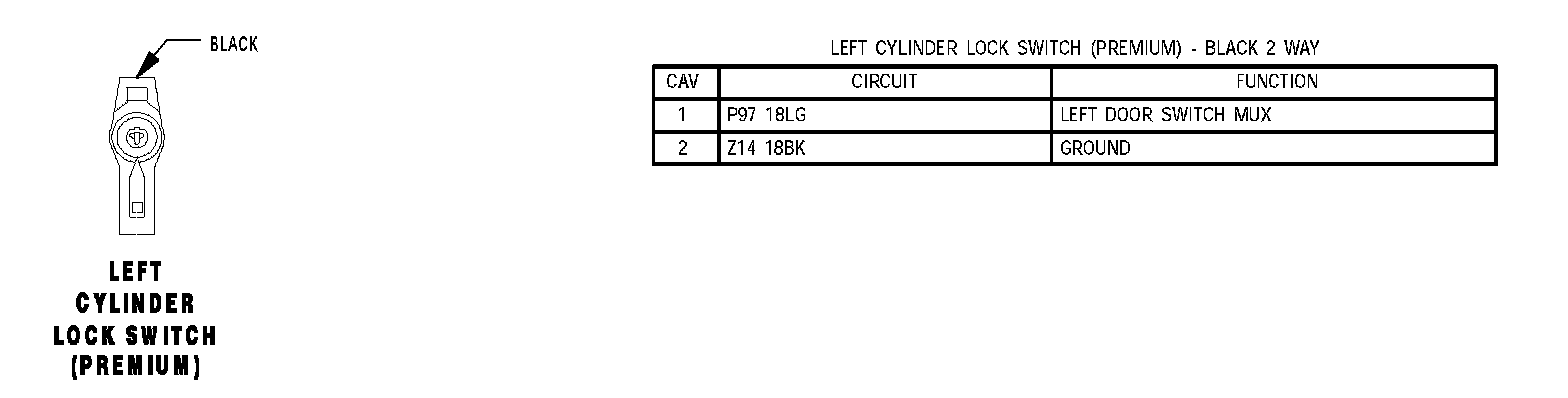

Left Cylinder Lock Switch (Premium):

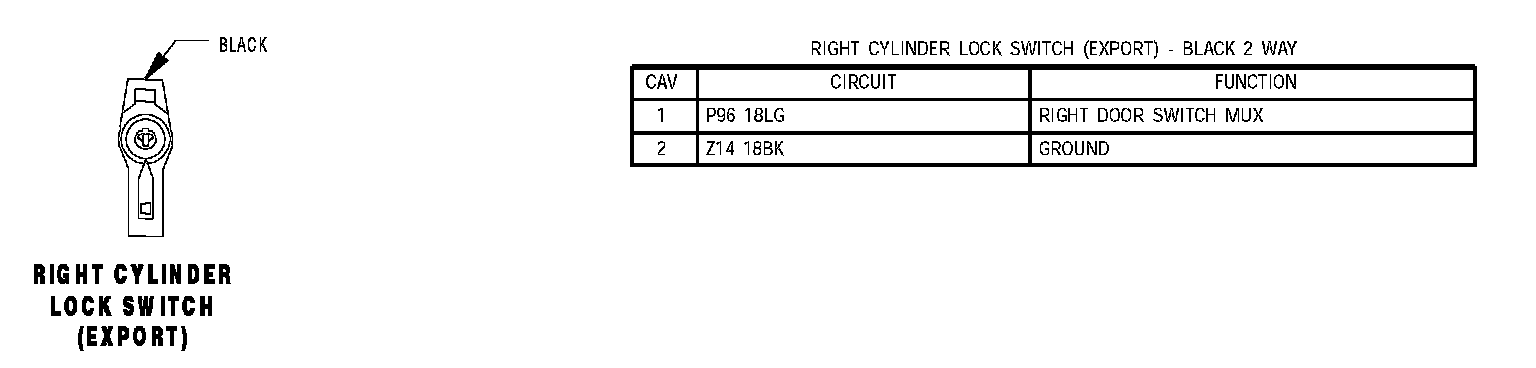

Right Cylinder Lock Switch (Export):
