Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
License Plate Lamp

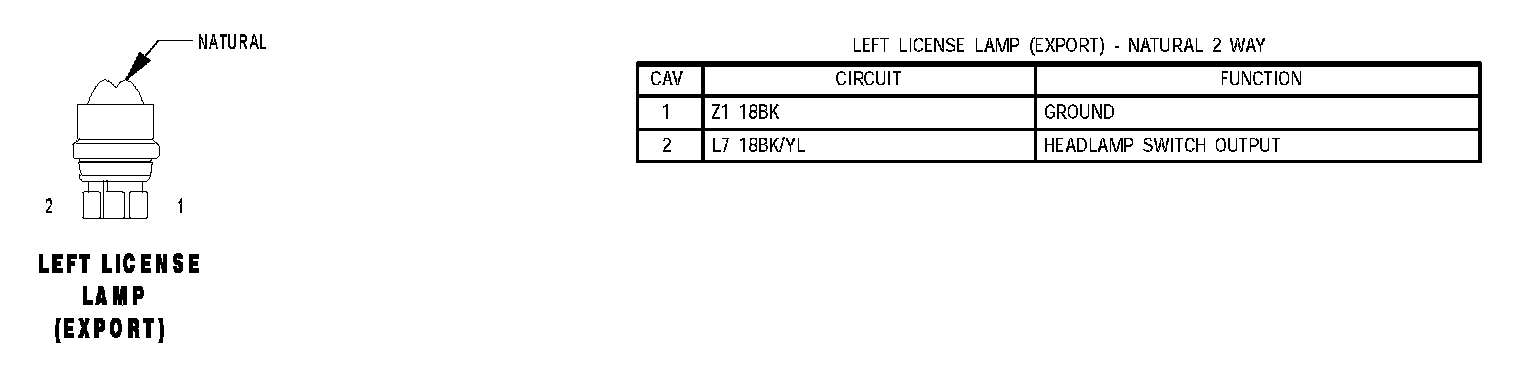

Left License Lamp (Export):

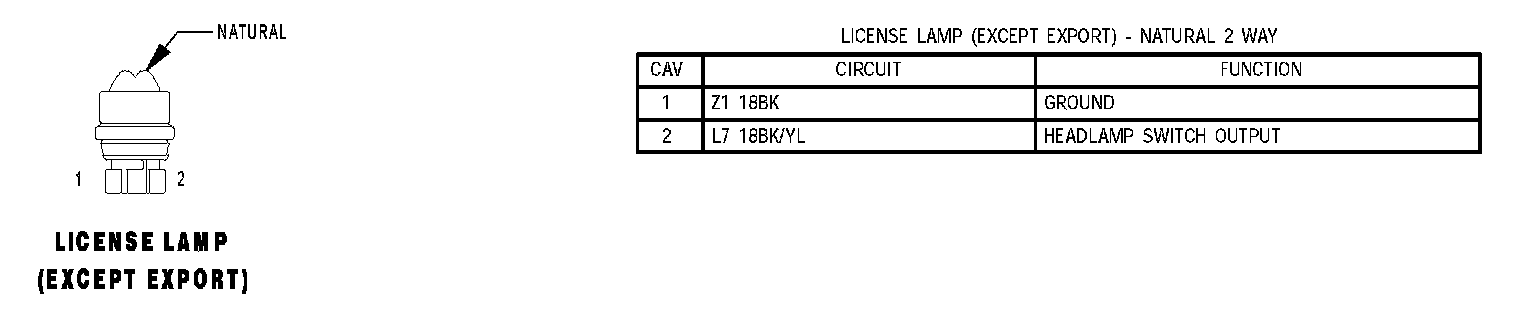

License Lamp (Except Export):

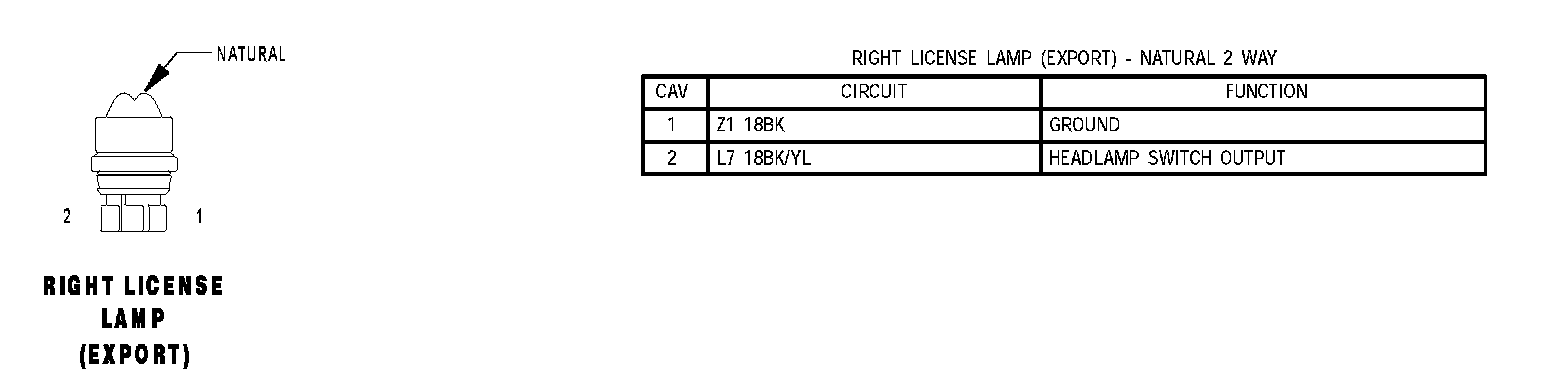

Right Licence Lamp (Export):
