Home >> Dodge >> 2005 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Alignment Switch

Headlamp Alignment Switch

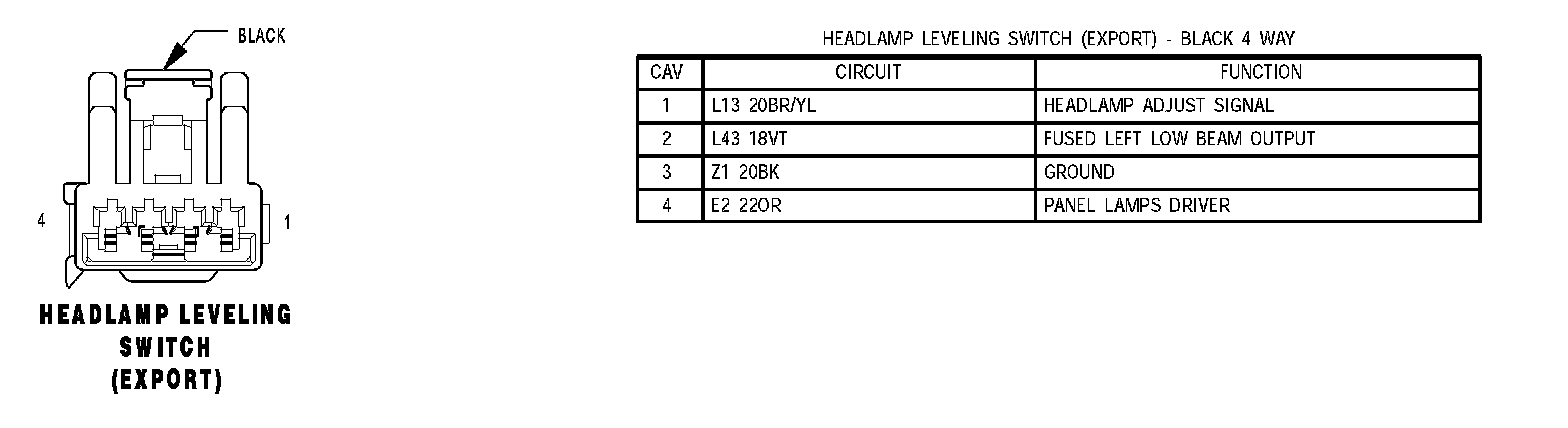

Headlamp Leveling Switch (Export):
