Cruise Control Servo: Service and Repair

REMOVAL

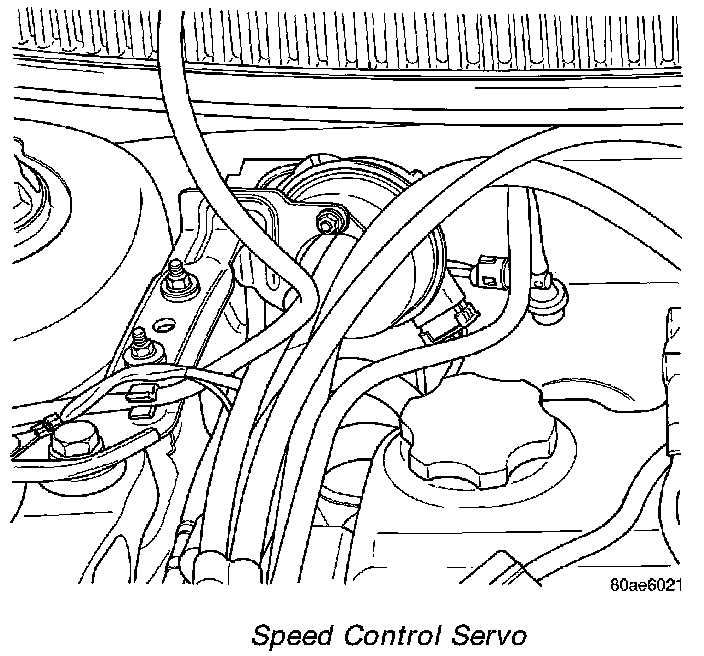

Speed Control Servo:

1. Disconnect electrical connector from servo.
2. Disconnect vacuum hose from servo
3. Remove 2 nuts retaining bracket to servo.
4. Remove cable bell housing from servo mounting studs.
5. Remove retaining clip pin holding cable to servo.

INSTALLATION
1. Install retaining clip to cable at servo.
2. Install 2 nuts at cable to servo and servo bracket, tighten to 7 Nm (60 in. lbs.).
3. Connect electrical connector to servo.
4. Connect vacuum hose to servo
