Base Brake System

DIAGNOSIS AND TESTING - BASE BRAKE SYSTEM DIAGNOSIS CHARTS

NOTE: There are three diagnosis charts shown that cover the RED BRAKE WARNING INDICATOR LAMP, BRAKE NOISE and OTHER BRAKE CONDITIONS.

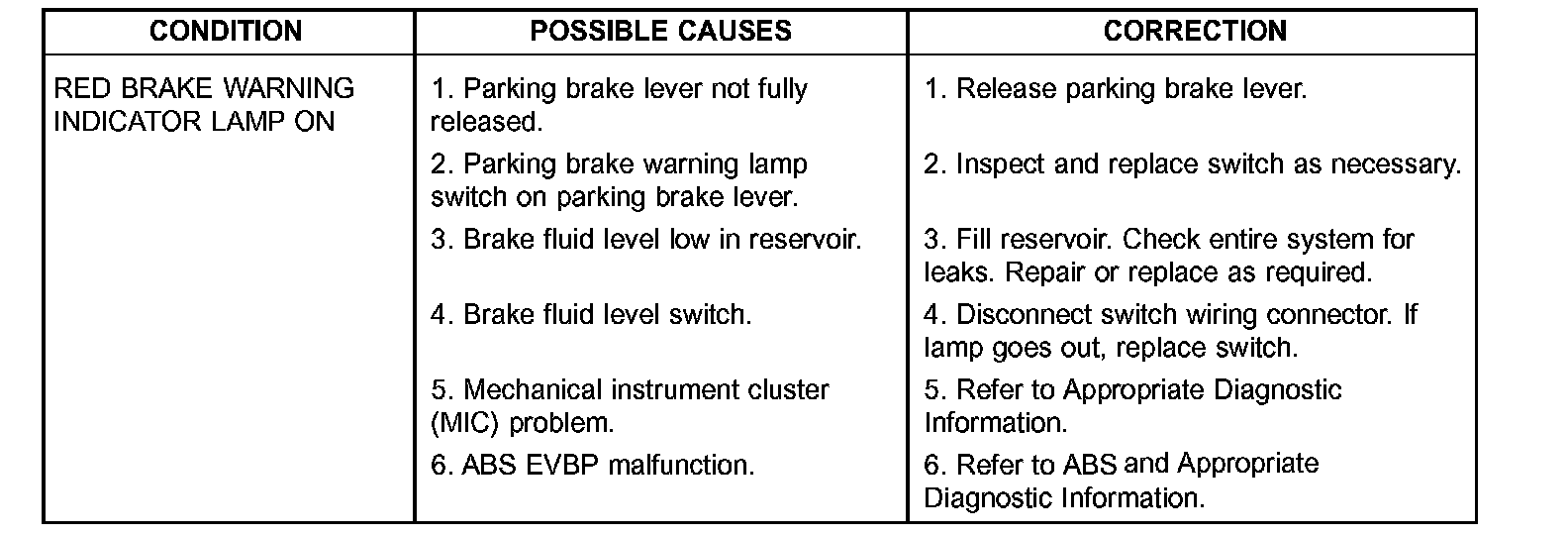

RED BRAKE WARNING INDICATOR LAMP

Part 1 Of 2:

Part 2 Of 2:

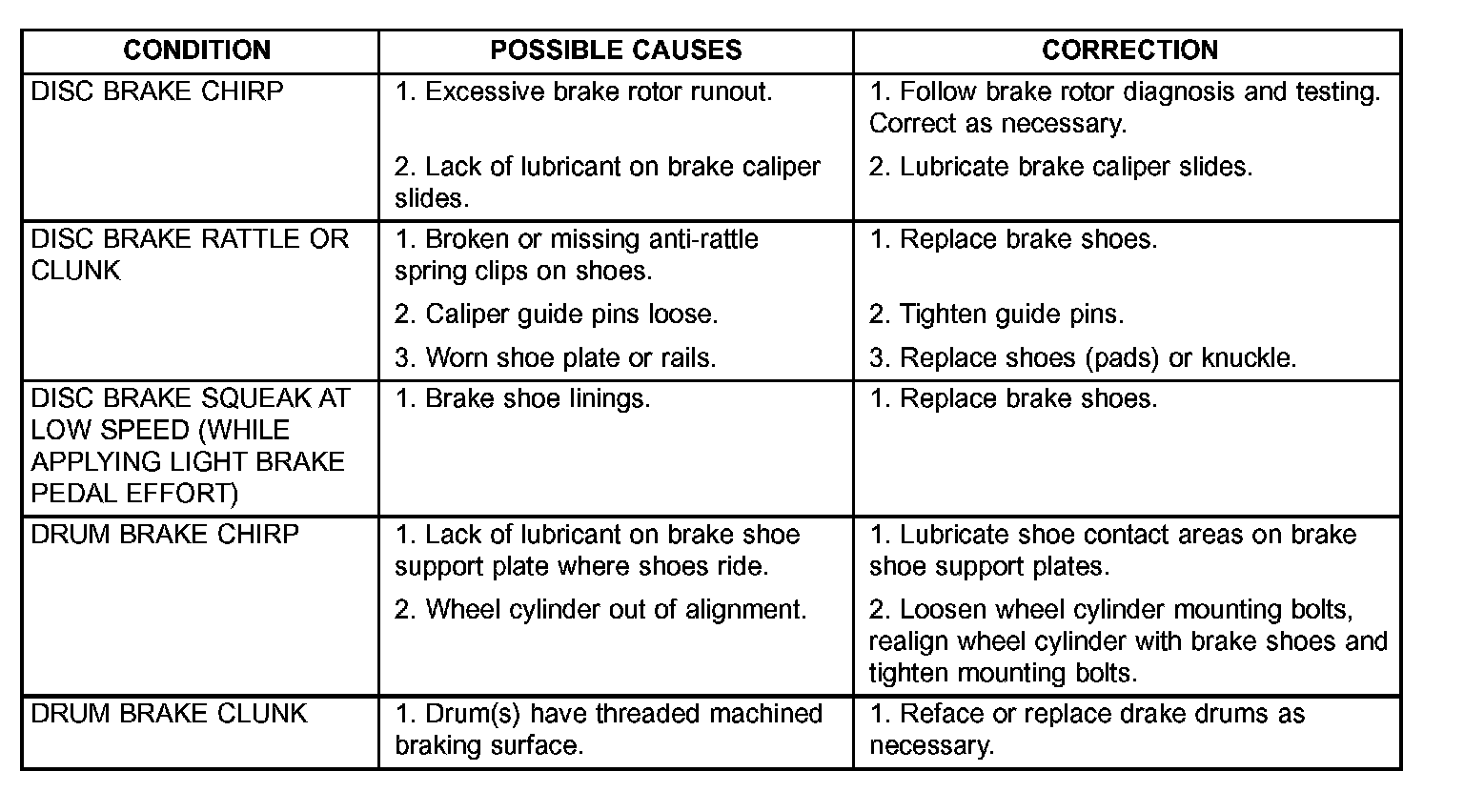

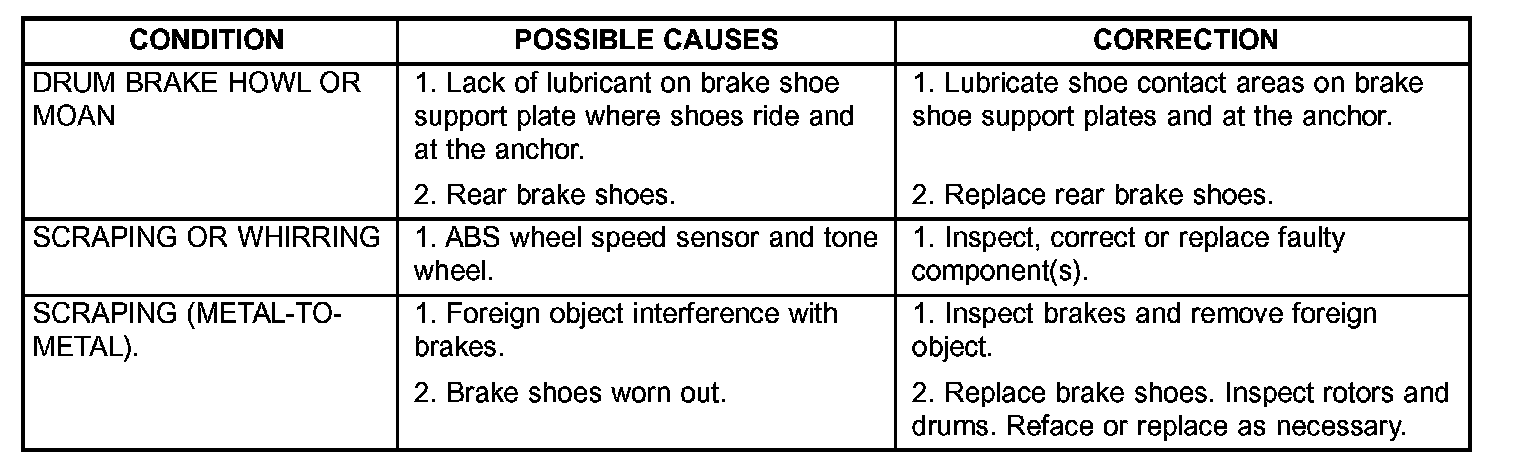

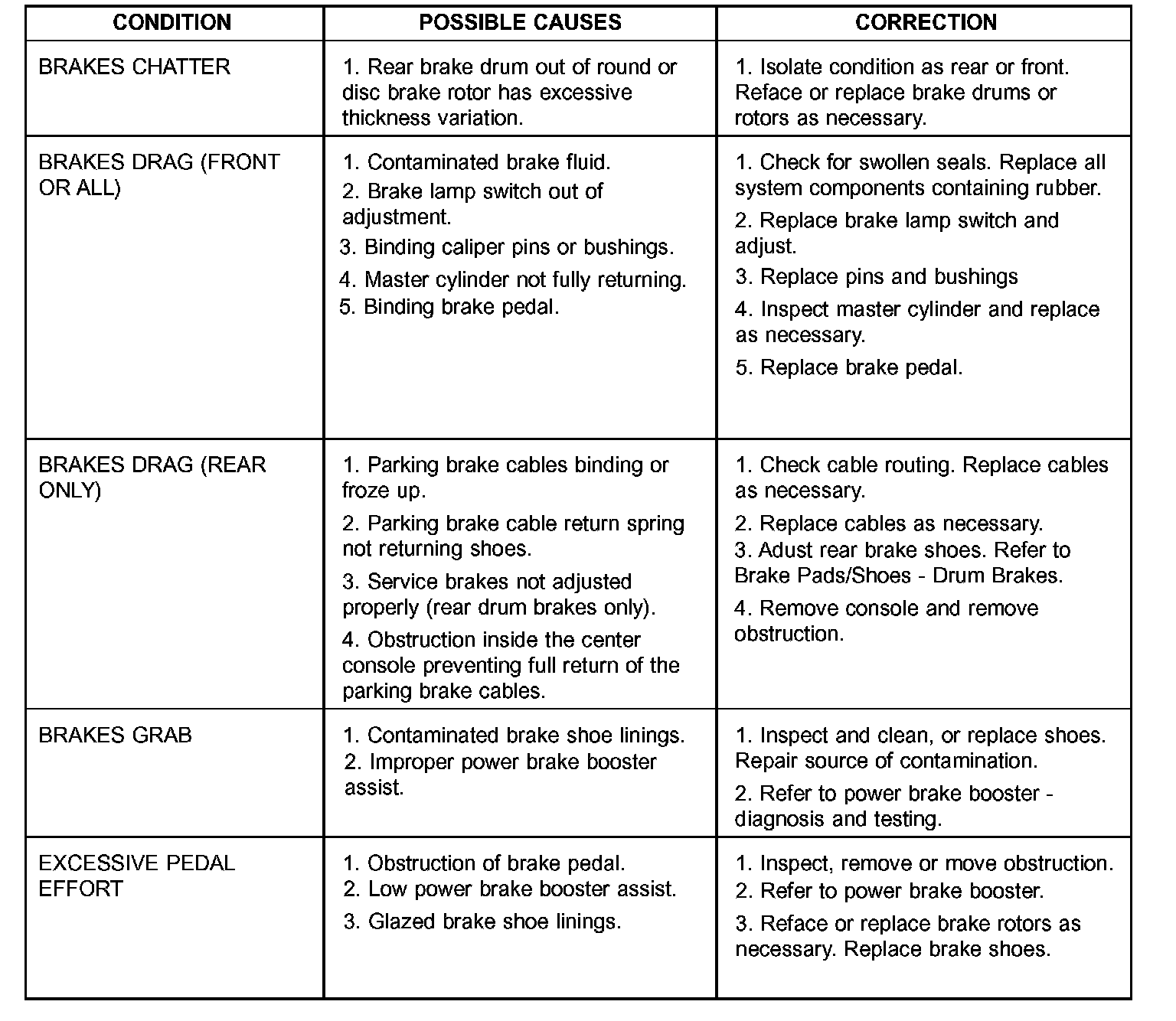

BRAKE NOISE

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

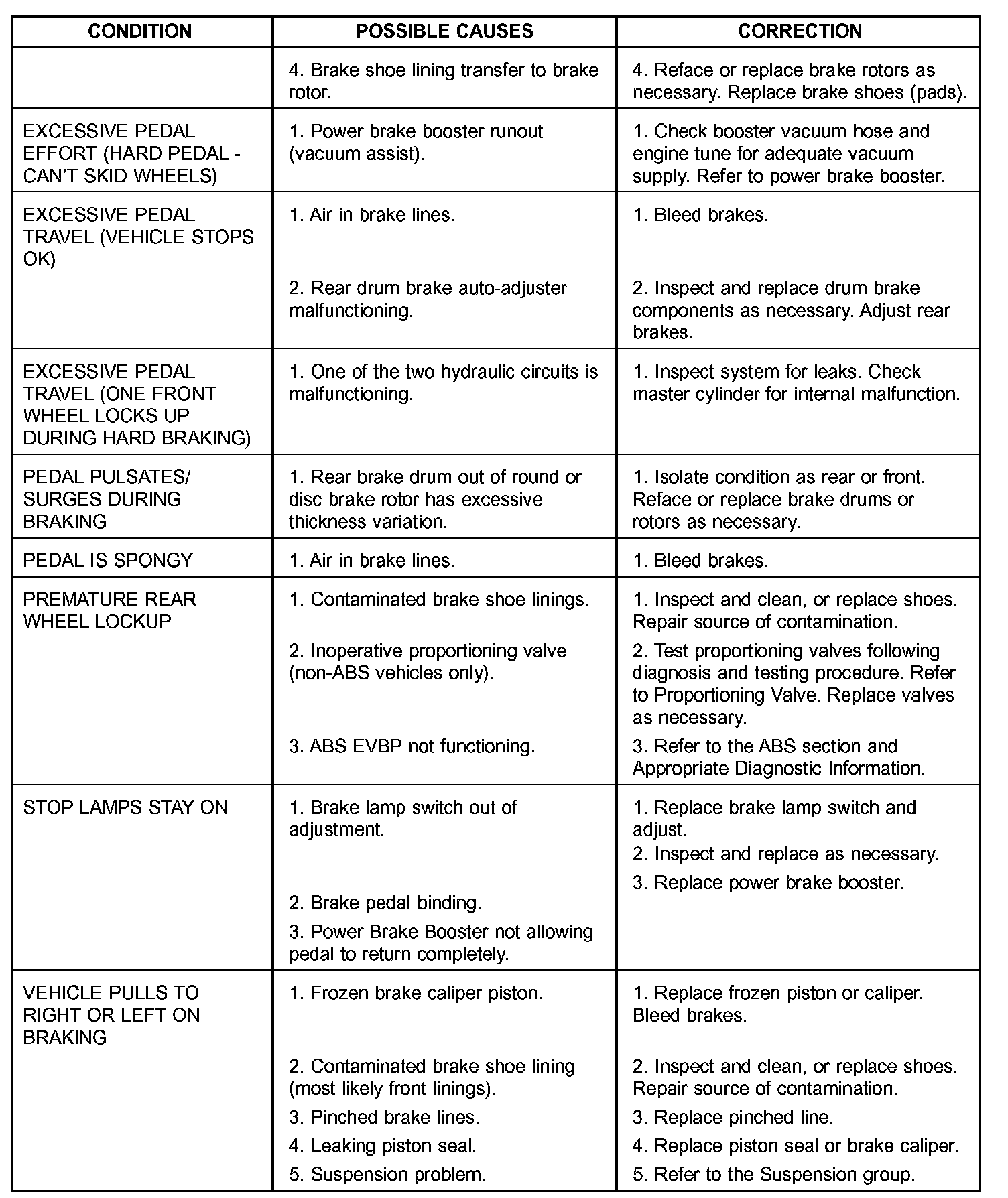

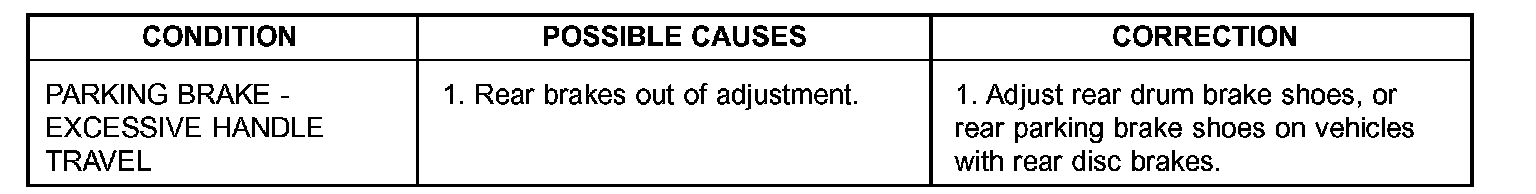

OTHER BRAKE CONDITIONS
