Cowl Moulding / Trim: Service and Repair

COWL GRILLE SCREEN

REMOVAL

1. Release hood latch and open hood.
2. Remove windshield wiper arms.

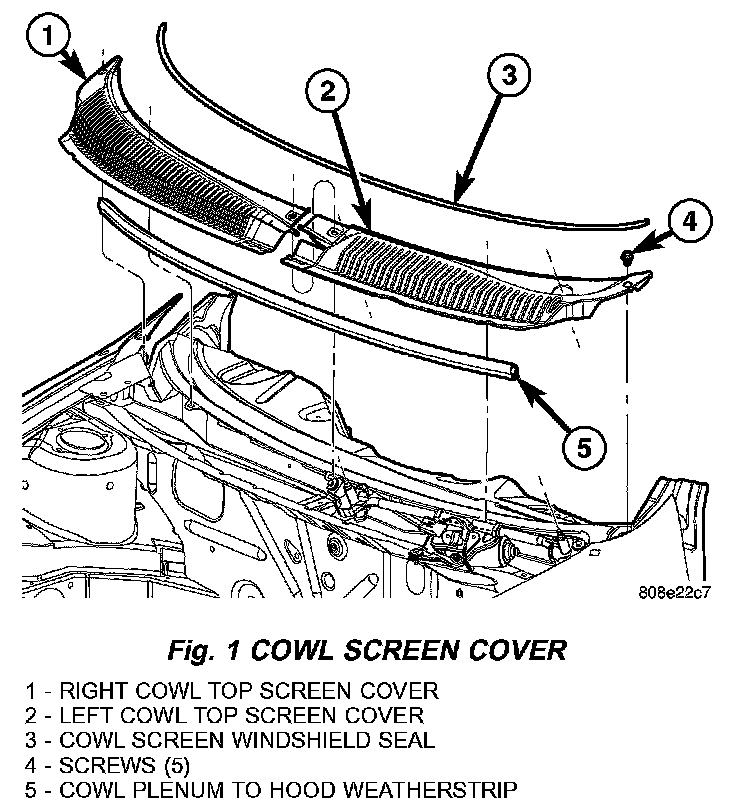

Fig. 1:

3. Remove the five screws attaching cowl screen cover to just below windshield flange. (Fig. 1).
4. Remove cowl plenum to hood weatherstrip, at the leading edge of cowl cover. Pull weatherstrip towards the front of the vehicle to remove.
5. Remove cowl screen windshield seal from upper edge of the cowl screen cover.
6. Remove cowl screen cover from the vehicle.

INSTALLATION

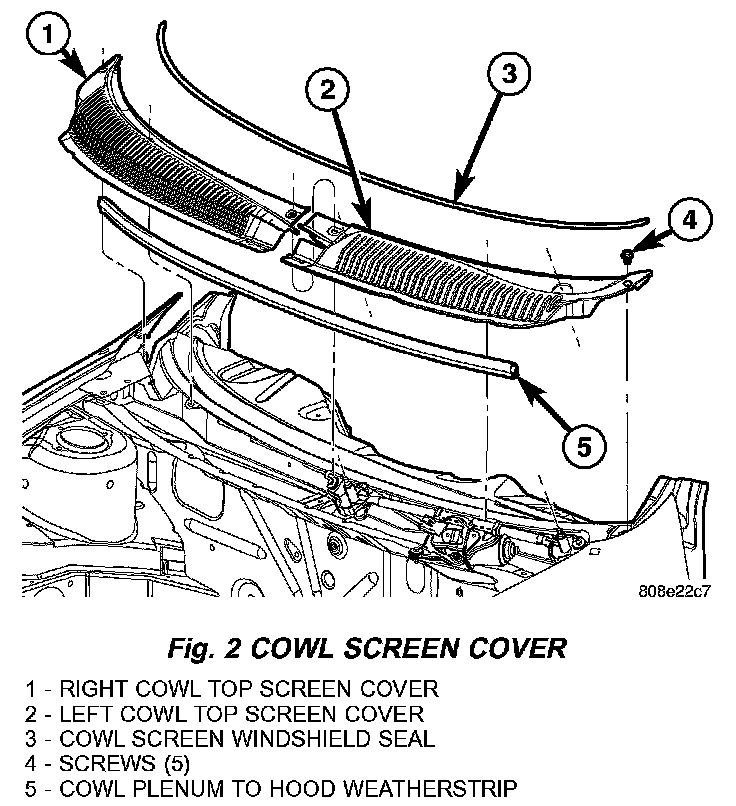

Fig. 2:

1. Place cowl screen cover into position on vehicle (Fig. 2).
2. Start five screws attaching cowl screen cover to cowl at base of windshield opening.
3. Install cowl screen windshield seal to upper edge of the cowl screen.
4. Push cowl plenum to hood weatherstrip, into position on the leading edge of cowl screen cover.
5. Install windshield wiper arms.
6. Tighten screws attaching cowl screen cover to cowl at base of windshield opening.
7. Install windshield wiper arms.
