Sunroof Glass

ADJUSTMENTS - SUNROOF GLASS

FLUSHNESS

1. Position sunshade in full rearward position. Place the glass panel in the full closed position.
2. To adjust front of glass;
a. Loosen front and middle glass attachment screws.
b. Adjust front of sunroof glass panel so that the corners are flush to 1.0 mm below the top surface of the roof panel.
c. Tighten all glass attachment screws.

3. To adjust rear of glass;
a. Loosen rear and middle glass attachment screws.
b. Adjust rear of sunroof glass panel so that the corners are flush to plus 1.0 mm off the top surface of the roof panel.
c. Tighten all glass attachment screws.

CENTERING SUNROOF GLASS ADJUSTMENT

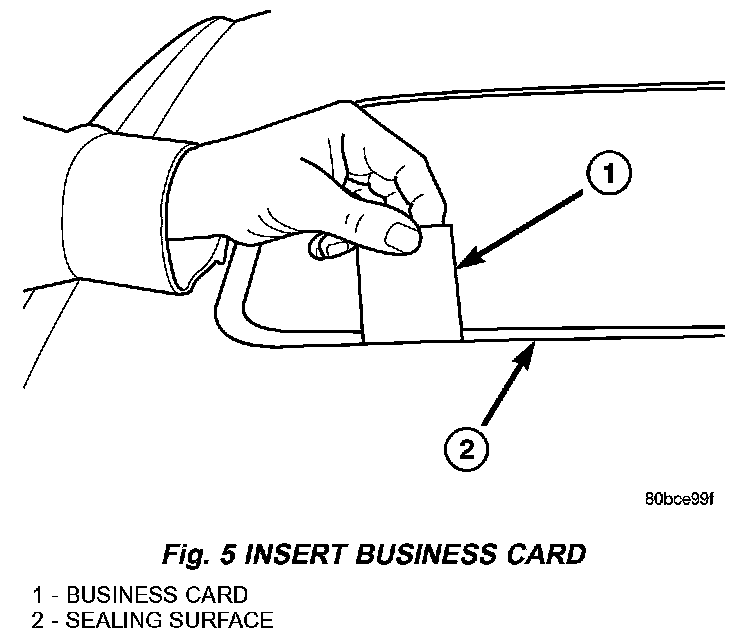

Fig. 5:

Using a business card, check sunroof glass for center in opening (Fig. 5). Move business card around the glass seal, noting area where there is less pressure on the card. Loosen glass attaching screws adjust as necessary.
