Placing Sunroof Glass In Vent Position

1. Remove the drive motor.
2. Remove sunroof glass panel.

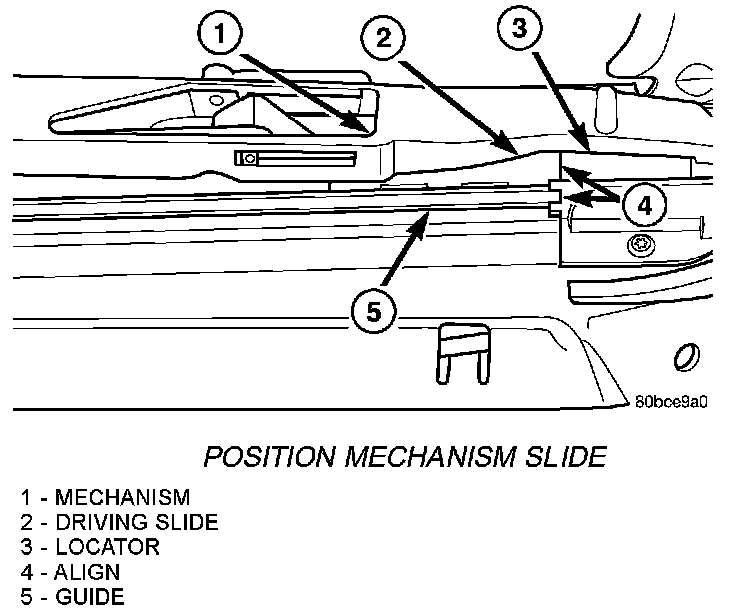

Position Mechanism Slide:

3. Slide the mechanism forward till the mechanism slide is parallel with the front edge of the guide.

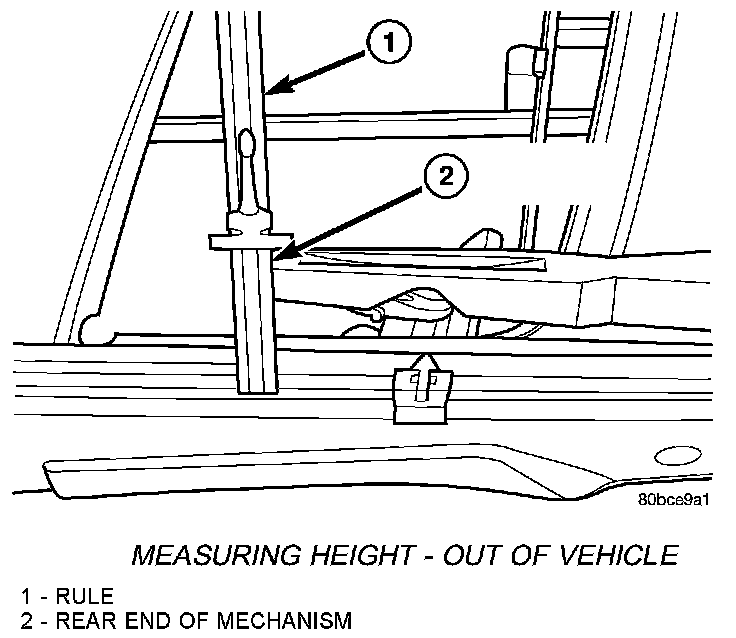

Measuring Height - Out Of Vehicle:

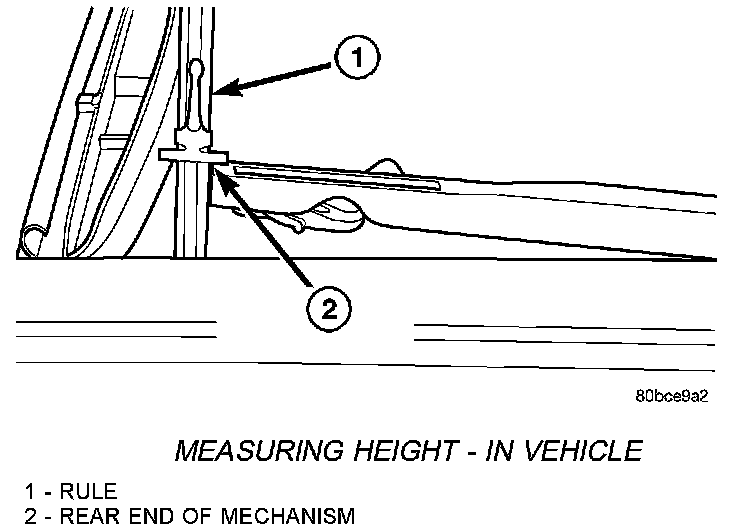

Measuring Height - In Vehicle:

4. Using a rule, measure the rear end of the mechanism to the guide on each side of sun roof.
5. Initial height should be 44 to 48 mm. Adjust mechanism so that both sides are ± 1.0 mm of each other.
6. Install drive motor.
7. Install sunroof panel.
8. Ensure glass adjustment, refer to Glass Adjustment procedure.
