Sunroof / Moonroof Motor: Adjustments
ADJUSTMENTSADJUSTMENTS - SUNROOF VENT POSITION
PLACING SUNROOF GLASS IN VENT POSITION
1. Remove the drive motor.
2. Remove sunroof glass panel.

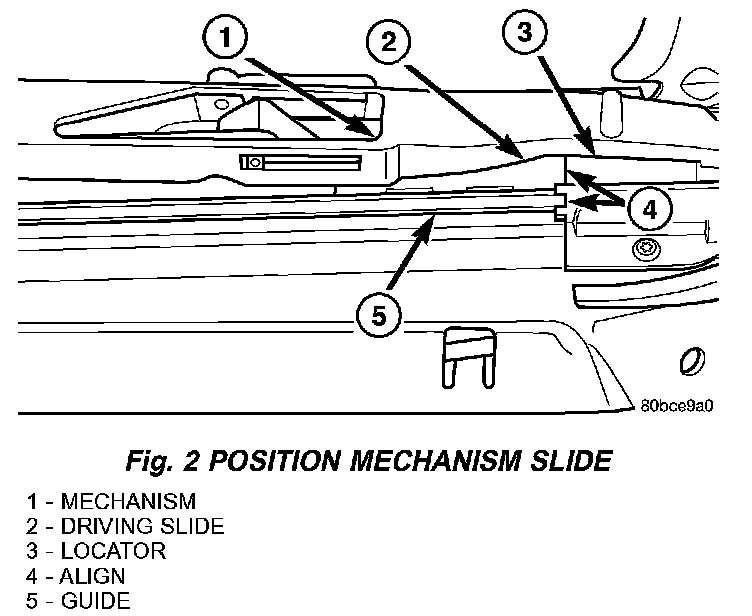

Fig. 2:
3. Slide the mechanism forward till the mechanism slide is parallel with the front edge of the guide (Fig. 2).

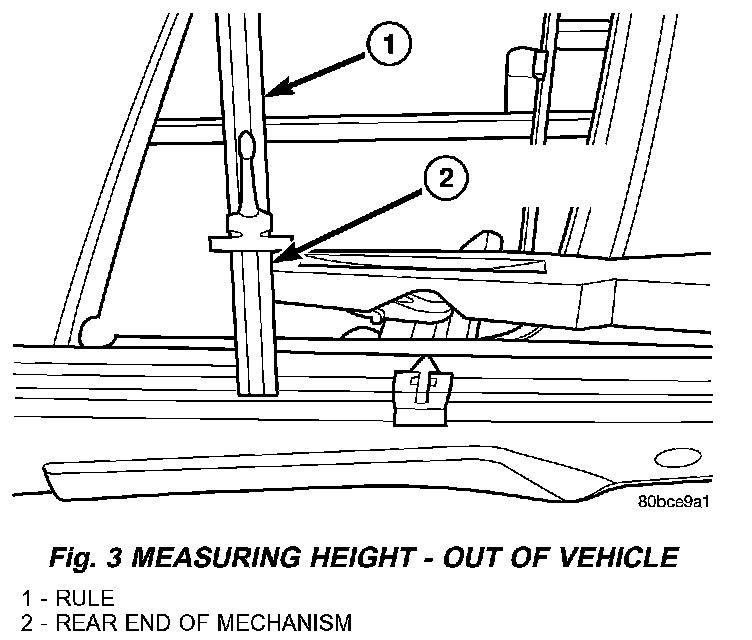

Fig. 3:

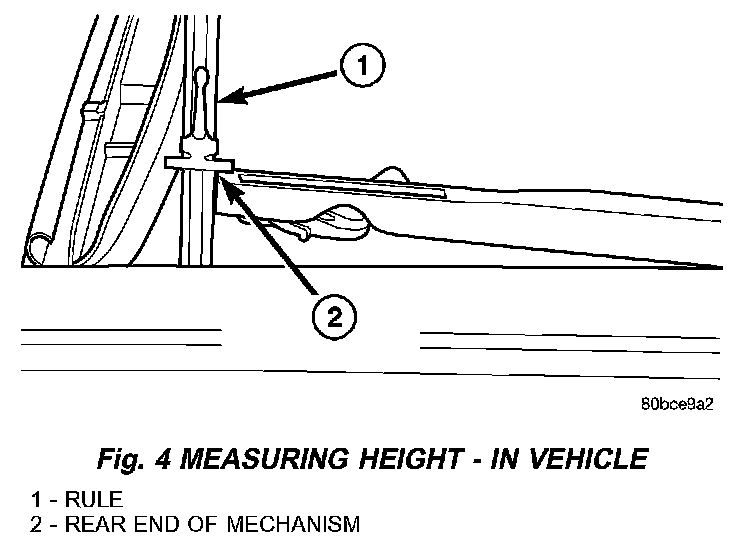

Fig. 4:
4. Using a rule, measure the rear end of the mechanism to the guide on each side of sun roof (Fig. 3) or (Fig. 4).
5. Initial height should be 44 to 48 mm. Adjust mechanism so that both sides are dia 1.0 mm of each other.
6. Install drive motor.
7. Install sunroof panel.
8. Ensure glass adjustment.
RE-POSITIONING DRIVE MOTOR
If the drive motor is not in the correct position it can be adjusted to the correct position when the sunroof glass is in the vent position. Remove the drive motor from the sunroof module, reconnect the wires to the motor and press the motor switch to the vent position. This should place the drive motor into the vent position. The motor may now be installed if the sunroof glass panel is in the vent position
