Trunk / Liftgate Spring: Service and Repair

LIFT SPRING

REMOVAL

WARNING: USE EYE AND HAND PROTECTION WHEN REMOVING SPRINGS, PERSONAL INJURY MAY RESULT.

1. Release and open decklid.
2. Support decklid on a suitable prop device.

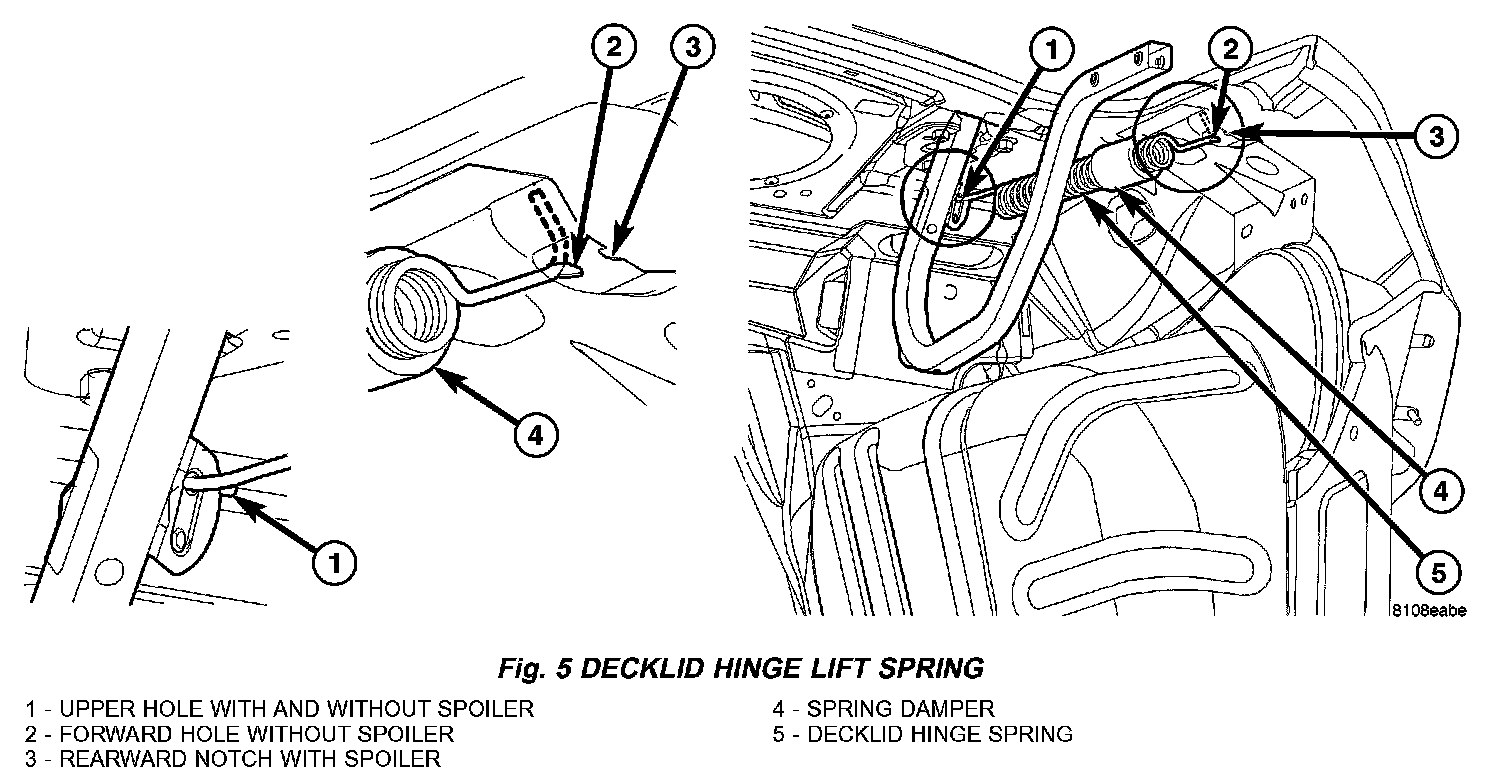

Fig. 5:

3. Using a common pliers, disengage spring from rearward notch or hole under decklid opening side trough (Fig. 5).
4. Disengage spring from decklid hinge.

INSTALLATION

1. Engage spring to decklid hinge.
2. Using a common pliers, connect spring to the rearward notch or hole under decklid opening side trough (Fig. 5). Without spoiler connect the spring into the hole. With spoiler connect spring to the notch.
3. Position spring with the damper at the of the spring with only 3 coils showing.
4. Remove decklid support device.
5. Close decklid.
